Green fluorescent protein (GFP) is a 27 kDa protein originally isolated from the jellyfish Aequorea victoria. In the presence of UV light (490-520 nm), it emits a green fluorescent color that can be used to pinpoint locations of various intracellular proteins. GFP is 238 amino acids (aa) in length. It is a globular monomer that has a tendency to dimerize. The monomer has the shape of a beta -barrel with a chromophore (aa 65-67) containing alpha -helix running up its center. GFPuv is the Aequorea sequence with three aa substitutions; Phe to Ser at # 99, Met to Thr at # 153, and Val to Ala at # 163. This form expresses faster and is 18-fold brighter than native GFP; excitation peaks at 395 nm and emission at 508 nm.
Key Product Details
Species Reactivity
Multi-Species
Applications
Intracellular Staining by Flow Cytometry, Immunocytochemistry, Immunoprecipitation, CyTOF-ready
Label
Unconjugated
Antibody Source
Monoclonal Mouse IgG1 Clone # 454505
Loading...
Product Specifications
Immunogen
E. coli-derived recombinant GFPuv
Ser2-Lys238
Accession # P42212
Ser2-Lys238
Accession # P42212
Specificity
Stains eGFP transfectants but not irrelevant transfectants in flow cytometry. Detects recombinant GFPuv in Western blots. For optimal Western blot results, we recommend R&D Systems Goat Anti-GFP Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4240) or Novus Biologicals Mouse Anti-GFP Monoclonal Antibody (Catalog # NBP2-2211).
Clonality
Monoclonal
Host
Mouse
Isotype
IgG1
Scientific Data Images for GFP Antibody
GFP in HEK293 Human Cell Line.
GFP was detected in 2% paraformaldehyde immersion fixed HEK293 human embryonic kidney cell line transfected with GFP-expressing protein using Mouse Anti-GFP Monoclonal Antibody (Catalog # MAB42401) at 25 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Mouse IgG Secondary Antibody (red, upper panel; Catalog # NL007). Lower panel shows transfected cells by GFPuv auto-fluorescence (green). View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

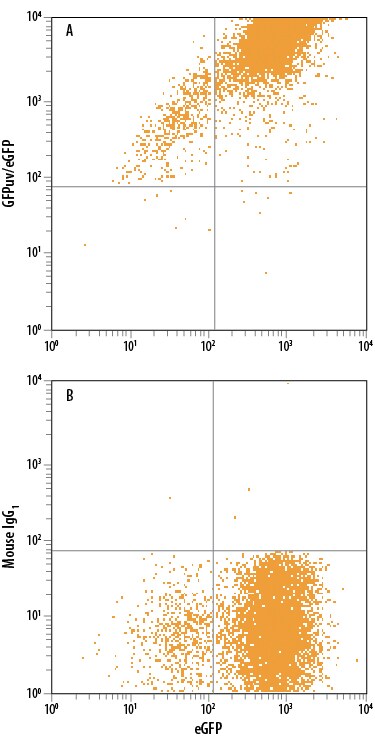

Detection of eGFP in HEK293 Human Cell Line Transfected with eGFP by Flow Cytometry.
HEK293 human embryonic kidney cell line transfected with eGFP was stained with and either (A) Mouse Anti-GFP Monoclonal Antibody (Catalog # MAB42401) or (B) Mouse IgG1Isotype Control (Catalog # MAB002) followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.Applications for GFP Antibody
Application
Recommended Usage
CyTOF-ready
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Immunocytochemistry
8-25 µg/mL
Sample: Immersion fixed HEK293 human embryonic kidney cell line transfected with eGFP
Sample: Immersion fixed HEK293 human embryonic kidney cell line transfected with eGFP
Immunoprecipitation
2 µg/100 µg cell lysate
Sample: 293T human embryonic kidney cell line transfected with eGFP
Sample: 293T human embryonic kidney cell line transfected with eGFP
Intracellular Staining by Flow Cytometry
0.25 µg/106 cells
Sample: HEK293 human embryonic kidney cell line transfected with eGFP was fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005)
Sample: HEK293 human embryonic kidney cell line transfected with eGFP was fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005)
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
