Mouse Integrin alpha 9 Antibody

R&D Systems | Catalog # AF3827

R&D Systems

Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Mouse

Cited:

Human, Mouse, Transgenic Mouse

Applications

Validated:

Immunohistochemistry, Western Blot, Flow Cytometry, CyTOF-ready

Cited:

Immunohistochemistry, Immunohistochemistry-Frozen, Western Blot, Neutralization, Flow Cytometry, Immunocytochemistry

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse Integin alpha 9
Try31-Val979
Accession # NP_598482

Specificity

Detects mouse Integrin alpha 9 in direct ELISAs. In direct ELISAs, less than 25% cross-reactivity with recombinant human Integrin alpha 9 is observed and less than 5% cross-reactivity with recombinant mouse Integrin alpha 3 and alpha 4 is observed.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for Mouse Integrin alpha 9 Antibody

Integrin alpha 9 antibody in Mouse Liver Tissue by Immunohistochemistry (IHC-Fr).

Integrin alpha 9 in Mouse Liver Tissue.

Integrin a9 was detected in perfusion fixed frozen sections of mouse liver tissue using Goat Anti-Mouse Integrin a9 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3827) at 1 µg/mL overnight at 4 °C. Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (CTS013). Tissue was stained using the Anti-Goat IgG VisUCyte™ HRP Polymer Antibody (brown; VC004) and counterstained with hematoxylin (blue). Specific staining was localized to bile canaliculi. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.
Detection of Human Integrin alpha 9 by Immunocytochemistry/Immunofluorescence

Detection of Human Integrin alpha 9 by Immunocytochemistry/Immunofluorescence

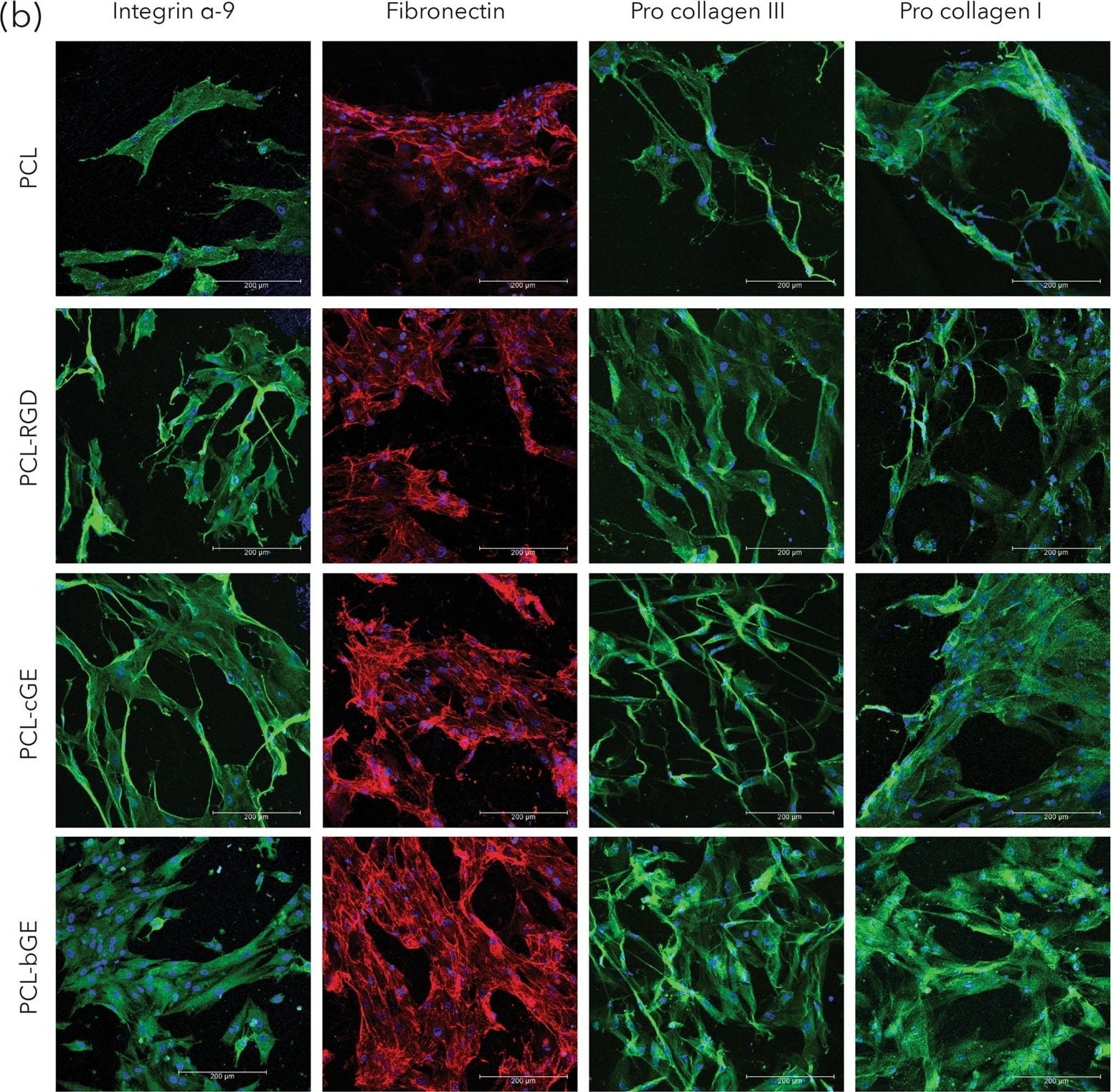

Morphology and protein expression of hSKPs. (a) SEM micrographs of nanofibrous scaffolds showing morphology of hSKPs at 7 days of culture. (b) Immunofluorescent images of hSKPs grown on nanofibrous scaffolds showing expression of integrin alpha -9 (green), fibronectin (red) and procollagen I & III (green). Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/28860484), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Mouse Integrin alpha 9 by Immunocytochemistry/Immunofluorescence

Detection of Mouse Integrin alpha 9 by Immunocytochemistry/Immunofluorescence

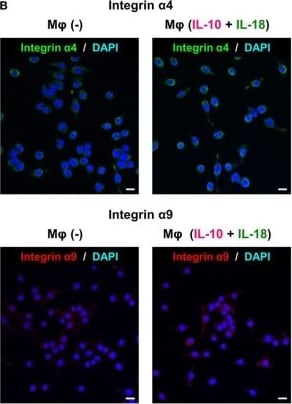

Intergins alpha 4/ alpha 9 are responsible for the action of osteopontin (OPN) in the augmentation of macrophage (Mφ) M2 polarization and angiogenic capacity. (A) Relative mean fluorescence intensities (MFIs) of integrins alpha 4/ alpha 9 were measured by FACS analysis in each Mφ subset. Anti-integrin alpha 4 or alpha 9 antibodies (Abs) and each isotype-matched control Ab were used at 10 µg/mL, n = 4 [***p < 0.001 vs. untreated, ###p < 0.001 vs. interleukin (IL)-10 alone]. (B) Representative confocal laser scanning immunofluorescence overlay images of integrin alpha 4 (green) and DAPI (blue), as well as those of integrin alpha 9 (red) and DAPI (blue) in Mφ (–) and Mφ (IL-10 + IL-18). Scale bar represents 20 µm. (C) Relative MFI of CD163 was measured by FACS analysis in each Mφ subset. Anti-integrin alpha 4 or alpha 9 Abs and each isotype-matched control Ab were used at 10 µg/mL, n = 4 (***p < 0.001 vs. untreated, ###p < 0.001 vs. IL-10 alone, †††p < 0.001 vs. IL-10 + IL-18). (D) The total areas and lengths of tube-like structures were determined by the Matrigel tube formation assay where b.End5 was cocultured with each Mφ subset. Anti-integrin alpha 4 or alpha 9 Abs and each isotype-matched control Ab were used at 10 µg/mL, n = 6 (***p < 0.001, **p < 0.01, *p < 0.05 vs. untreated, ###p < 0.001, ##p < 0.01, #p < 0.05 vs. IL-10 alone, †††p < 0.001 vs. IL-10 + IL-18). Integrin alpha 4 = ITGA4; Integrin alpha 9 = ITGA9. All data are expressed as means ± SEM and were analyzed by a one-way ANOVA followed by Tukey’s test. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/29559970), licensed under a CC-BY license. Not internally tested by R&D Systems.

Detection of Integrin alpha 9 in AML12 Mouse Cell Line by Flow Cytometry.

AML12 mouse cell line was stained with Goat Anti-Mouse Integrin a9 Antigen Affinity-purified Polyclonal Antibody (AF3827, filled histogram) or isotype control antibody (AB-108-C, open histogram). View our protocol for Staining Membrane-associated Proteins.
Detection of Integrin alpha 9 by Western Blot

Detection of Integrin alpha 9 by Western Blot

METTL3 accelerated cellular senescence by modulating ITGA9. (A) The p16 level in MEF cells transfected with siNC, siMETTL3 or siMETTL3 and siITGA9. The quantitative results were shown on the right. Mean (±SEM), n=4, passed normality test: Shapiro-Wilk test; Paired t test (p=0.0058, t=7.062). (B) The p16 level in MEF cells infected with Lenti-NC, METTL3 or METTL3 and ITGA9. The quantitative results were shown on the right. Mean (±SEM), n=3, passed normality test: Shapiro-Wilk test; Paired t test (p=0.017, t=7.563). (C, D) Representative photographs of SA-beta -gal staining (C) and BrdU incorporation staining (D) of MEF cells transfected with siNC, siMETTL3, siITGA9, or siMETTL3 and siITGA9. The quantitative results were shown on the right. Mean (±SEM), passed normality test: Shapiro-Wilk test; Paired t test (C), n=3, p=0.0044, t=15.02; (D), n=4, p=0.0003, t=19.14). (E, F) Representative photographs of SA-beta -gal staining (E) and BrdU incorporation staining (F) of MEF cells infected with Lenti-NC, METTL3, ITGA9 or METTL3 and ITGA9. The quantitative results were shown on the right. Mean (±SEM), n=3, passed normality test: Shapiro-Wilk test; Paired t test ((E): p=0.0095, t=10.18; (F): p=0.0231, t=6.469). Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/40153583), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Integrin alpha 9 by Immunohistochemistry

Detection of Integrin alpha 9 by Immunohistochemistry

Itga9 expression in aortic root and plasma lipids during HFD feeding.Itga9WT and Itga9KO mice were gavaged with 100 μL of 20 mg ml−1 of tamoxifen at 6 weeks of age for 5 consecutive days. Hypercholesterolemia was induced by i.v. injection of AAV8-PCSK9 at 8 weeks of age, followed by HFD feeding for 16 weeks. (A) Representative images of Itga9 immunofluorescence (red) in plaque burden of aortic root from Itga9WT (left panel) and Itga9KO mice (right panel) to validate Itga9 depletion. In lower panels for both genotypes, isotype control staining using goat IgG was performed to check antibody specificity. Nuclei were counterstained with DAPI (blue). (B) Immunoblots of Itga9 in tissues including heart, liver, and lung isolated from Itga9WT and Itga9KO mice to validate Itga9 depletion. Tubulin was used as loading control. The uncropped versions of these blots are provided in Supplementary Fig. 1. (C) Weekly body weight of Itga9WT and Itga9KO mice over the HFD feeding period. (D) Total cholesterol (at 0, 2, 8, and 16 weeks) over the HFD feeding. n = 17 for Itga9WT and n = 11 for Itga9KO in (C), n = 18 for Itga9WT and n = 12 for Itga9KO in (D). Data are shown as mean ± SD and analyzed with two-way ANOVA with repeated measures (C and D). NS, not significant. Scale bars, 100 μm. L, lumen; P, plaque. Image collected and cropped by CiteAb from the following open publication (https://linkinghub.elsevier.com/retrieve/pii/S2405844024017912), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Integrin alpha 9 by Immunocytochemistry/ Immunofluorescence

Detection of Integrin alpha 9 by Immunocytochemistry/ Immunofluorescence

Intergins alpha 4/ alpha 9 are responsible for the action of osteopontin (OPN) in the augmentation of macrophage (Mφ) M2 polarization and angiogenic capacity. (A) Relative mean fluorescence intensities (MFIs) of integrins alpha 4/ alpha 9 were measured by FACS analysis in each Mφ subset. Anti-integrin alpha 4 or alpha 9 antibodies (Abs) and each isotype-matched control Ab were used at 10 µg/mL, n = 4 [***p < 0.001 vs. untreated, ###p < 0.001 vs. interleukin (IL)-10 alone]. (B) Representative confocal laser scanning immunofluorescence overlay images of integrin alpha 4 (green) and DAPI (blue), as well as those of integrin alpha 9 (red) and DAPI (blue) in Mφ (–) and Mφ (IL-10 + IL-18). Scale bar represents 20 µm. (C) Relative MFI of CD163 was measured by FACS analysis in each Mφ subset. Anti-integrin alpha 4 or alpha 9 Abs and each isotype-matched control Ab were used at 10 µg/mL, n = 4 (***p < 0.001 vs. untreated, ###p < 0.001 vs. IL-10 alone, †††p < 0.001 vs. IL-10 + IL-18). (D) The total areas and lengths of tube-like structures were determined by the Matrigel tube formation assay where b.End5 was cocultured with each Mφ subset. Anti-integrin alpha 4 or alpha 9 Abs and each isotype-matched control Ab were used at 10 µg/mL, n = 6 (***p < 0.001, **p < 0.01, *p < 0.05 vs. untreated, ###p < 0.001, ##p < 0.01, #p < 0.05 vs. IL-10 alone, †††p < 0.001 vs. IL-10 + IL-18). Integrin alpha 4 = ITGA4; Integrin alpha 9 = ITGA9. All data are expressed as means ± SEM and were analyzed by a one-way ANOVA followed by Tukey’s test. Image collected and cropped by CiteAb from the following open publication (http://journal.frontiersin.org/article/10.3389/fimmu.2018.00334/full), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Integrin alpha 9 by Flow Cytometry

Detection of Integrin alpha 9 by Flow Cytometry

Isolation and proliferation of ITGA9 and NGFR cells in vitro. (A) ITGA9+/NGFR + and ITGA9-/NGFR + cells were isolated by FACS from adult human testes. (B) ITGA9+/NGFR + and ITGA9-/NGFR + cells were cultured and proliferation in vitro. Different cell morphologies can be seen. The scale bar represents 20 μm. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/40450328), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Integrin alpha 9 by Western Blot

Detection of Integrin alpha 9 by Western Blot

Itga9 expression in aortic root and plasma lipids during HFD feeding.Itga9WT and Itga9KO mice were gavaged with 100 μL of 20 mg ml−1 of tamoxifen at 6 weeks of age for 5 consecutive days. Hypercholesterolemia was induced by i.v. injection of AAV8-PCSK9 at 8 weeks of age, followed by HFD feeding for 16 weeks. (A) Representative images of Itga9 immunofluorescence (red) in plaque burden of aortic root from Itga9WT (left panel) and Itga9KO mice (right panel) to validate Itga9 depletion. In lower panels for both genotypes, isotype control staining using goat IgG was performed to check antibody specificity. Nuclei were counterstained with DAPI (blue). (B) Immunoblots of Itga9 in tissues including heart, liver, and lung isolated from Itga9WT and Itga9KO mice to validate Itga9 depletion. Tubulin was used as loading control. The uncropped versions of these blots are provided in Supplementary Fig. 1. (C) Weekly body weight of Itga9WT and Itga9KO mice over the HFD feeding period. (D) Total cholesterol (at 0, 2, 8, and 16 weeks) over the HFD feeding. n = 17 for Itga9WT and n = 11 for Itga9KO in (C), n = 18 for Itga9WT and n = 12 for Itga9KO in (D). Data are shown as mean ± SD and analyzed with two-way ANOVA with repeated measures (C and D). NS, not significant. Scale bars, 100 μm. L, lumen; P, plaque. Image collected and cropped by CiteAb from the following open publication (https://linkinghub.elsevier.com/retrieve/pii/S2405844024017912), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Integrin alpha 9 by Immunohistochemistry

Detection of Integrin alpha 9 by Immunohistochemistry

Isolation and proliferation of ITGA9 and NGFR cells in vitro. (A) ITGA9+/NGFR + and ITGA9-/NGFR + cells were isolated by FACS from adult human testes. (B) ITGA9+/NGFR + and ITGA9-/NGFR + cells were cultured and proliferation in vitro. Different cell morphologies can be seen. The scale bar represents 20 μm. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/40450328), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Integrin alpha 9 by Immunocytochemistry/ Immunofluorescence

Detection of Integrin alpha 9 by Immunocytochemistry/ Immunofluorescence

METTL3 accelerated cellular senescence by modulating ITGA9. (A) The p16 level in MEF cells transfected with siNC, siMETTL3 or siMETTL3 and siITGA9. The quantitative results were shown on the right. Mean (±SEM), n=4, passed normality test: Shapiro-Wilk test; Paired t test (p=0.0058, t=7.062). (B) The p16 level in MEF cells infected with Lenti-NC, METTL3 or METTL3 and ITGA9. The quantitative results were shown on the right. Mean (±SEM), n=3, passed normality test: Shapiro-Wilk test; Paired t test (p=0.017, t=7.563). (C, D) Representative photographs of SA-beta -gal staining (C) and BrdU incorporation staining (D) of MEF cells transfected with siNC, siMETTL3, siITGA9, or siMETTL3 and siITGA9. The quantitative results were shown on the right. Mean (±SEM), passed normality test: Shapiro-Wilk test; Paired t test (C), n=3, p=0.0044, t=15.02; (D), n=4, p=0.0003, t=19.14). (E, F) Representative photographs of SA-beta -gal staining (E) and BrdU incorporation staining (F) of MEF cells infected with Lenti-NC, METTL3, ITGA9 or METTL3 and ITGA9. The quantitative results were shown on the right. Mean (±SEM), n=3, passed normality test: Shapiro-Wilk test; Paired t test ((E): p=0.0095, t=10.18; (F): p=0.0231, t=6.469). Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/40153583), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Integrin alpha 9 by Immunocytochemistry/ Immunofluorescence

Detection of Integrin alpha 9 by Immunocytochemistry/ Immunofluorescence

Characterisations of ITGA9+/NGFR + cells in vitro (A) Representative phase-contrast micrograph of cells shows the difference of tube-forming ability. Immunofluorescence staining of phalloidin show the cytoskeleton of ITGA9+/NGFR + and ITGA9-/NGFR + cells. (B) Comparison of the capillary length and branch points between ITGA9+/NGFR + and ITGA9-/NGFR + cells. ***P < 0.001. (C) ITGA9+/NGFR + and ITGA9-/NGFR + cells in 3D microwell culture system. (D) Immunofluorescence staining of PTM-specific marker SMA show significant difference of cell spheroids index between ITGA9+/NGFR + and ITGA9-/NGFR + cells (E). ***P < 0.001. The scale bar represents 20 μm. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/40450328), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Mouse Integrin alpha 9 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

2.5 µg/106 cells
Sample: AML12 mouse cell line

Immunohistochemistry

1-15 µg/mL
Sample: Perfusion fixed frozen sections of mouse liver

Western Blot

0.1 µg/mL
Sample: Recombinant Mouse Integrin  alpha 9

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.


Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. See Certificate of Analysis for details.<br/>*Small pack size (-SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Integrin alpha 9

Integrin alpha 9 is a 150 kDa type I transmembrane glycoprotein that is widely expressed and is found on smooth muscle, keratinocytes, skeletal muscle and hepatocytes. It principally associates with the beta 1 integrin. alpha 9 beta 1 binds to VEGF-C, VEGF-D, and osteopontin. The 951 amino acid (aa) extracellular domain of mouse integrin alpha 9 contains three beta -propellor repeats and multiple PheGly-GlyAlaPro repeats. A potential proteolytic cleavage site in human alpha 9 ECD is absolutely conserved in mouse alpha 9 ECD (Arg566-Val567). The ECD of mouse integrin alpha 9 shares 95% and 89% aa sequence identity to rat and human integrin alpha 9, respectively.

Alternate Names

ITGA4L, ITGA9, RLC-alpha

Entrez Gene IDs

3680 (Human); 104099 (Mouse); 685004 (Rat)

Gene Symbol

ITGA9

UniProt
