Phospho-GAP‑43 (S41) Antibody

Catalog # Availability Size / Price Qty
Detection of Phospho-GAP‑43 (S41) by Western blot.
1 Image
Product Details
Citations (1)
Supplemental Products

Phospho-GAP‑43 (S41) Antibody Summary

Species Reactivity
Human, Mouse, Rat, Bovine, Canine, Chicken, Primate, Xenopus, Zebrafish
Specific for the ~50 kDa GAP-43 protein phosphorylated at S41 in Western blots. In some tissues the antibody also recognizes a higher molecular weight protein, that is also recognized by the Pan GAP-43 antibody. This may be a GAP-43 aggregate or oligomer.
Polyclonal Rabbit IgG
Antigen Affinity-purified
Phosphopeptide corresponding to amino acid residues surrounding the phospho-S41 of GAP-43
100 μL in 10 mM HEPES (pH 7.5), 150 mM NaCl, 100 μg/mL BSA and 50% glycerol.


Recommended Concentration
Western Blot
1:1000 dilution
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

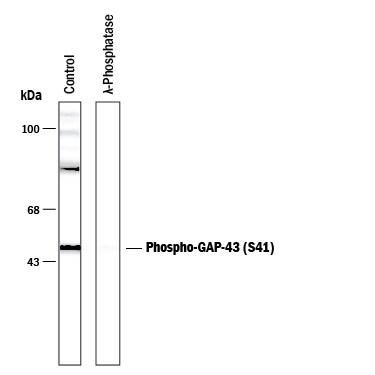

Western Blot Detection of Phospho-GAP-43 (S41) antibody by Western Blot. View Larger

Detection of Phospho-GAP‑43 (S41) by Western blot. Western blot of rat cortex lysate showing specific immunolabeling of the ~50 kDa GAP-43 protein phosphorylated at S41 (Control). The phosphospecificity of this labeling is demonstrated by treatment with 1200 U of lambda Phosphatase ( lambda -PPase) for 30 minutes before being exposed to the Anti-Phospho-GAP-43 (S41). The immunolabeling is completely eliminated by treatment with lambda -PPase.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
For long-term storage, ≤ -20° C is recommended. Product is stable at ≤ -20° C for at least 1 year.

Background: GAP-43

GAP-43 (Growth Associated Protein 43 kDa), also known as Neuromodulin, is a 24 kDa, neuron growth cone-associated member of the neuromodulin family. Apparently due to its tertiary structure, it runs anomalously at 43 kDa on SDS-polyacrylamide gel. Rat GAP-43 is a 226 amino acid (aa) protein that contains an N-terminal lipid binding motif, an 11 aa IQ domain (IQ:Ile-Gln-X-Ser-etc) (aa 38 - 48), and a C-terminus with four potential serine phosphorylation sites. The molecule may utilize the IQ domain to bind calmodulin. Protein kinase C-mediated phosphorylation of the Serine at 41 within this site inhibits this interaction. Unphosphorylated, calmodulin-bound GAP-43 is always associated with neurite retraction, while S41 phosphorylated GAP-43 stabilizes actin filaments and promotes growth cone extension.

Long Name
Growth Associated Protein 43
Entrez Gene IDs
2596 (Human); 14432 (Mouse); 29423 (Rat)
Alternate Names
Axonal membrane protein GAP-43; B-50; Basp2; calmodulin-binding protein P-57; GAP43; GAP-43; growth associated protein 43; Growth-associated protein 43; nerve growth-related peptide GAP43; Neural phosphoprotein B-50; Neuromodulin; neuron growth-associated protein 43; PP46; protein F1

Product Datasheets

You must select a language.


Citation for Phospho-GAP‑43 (S41) Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

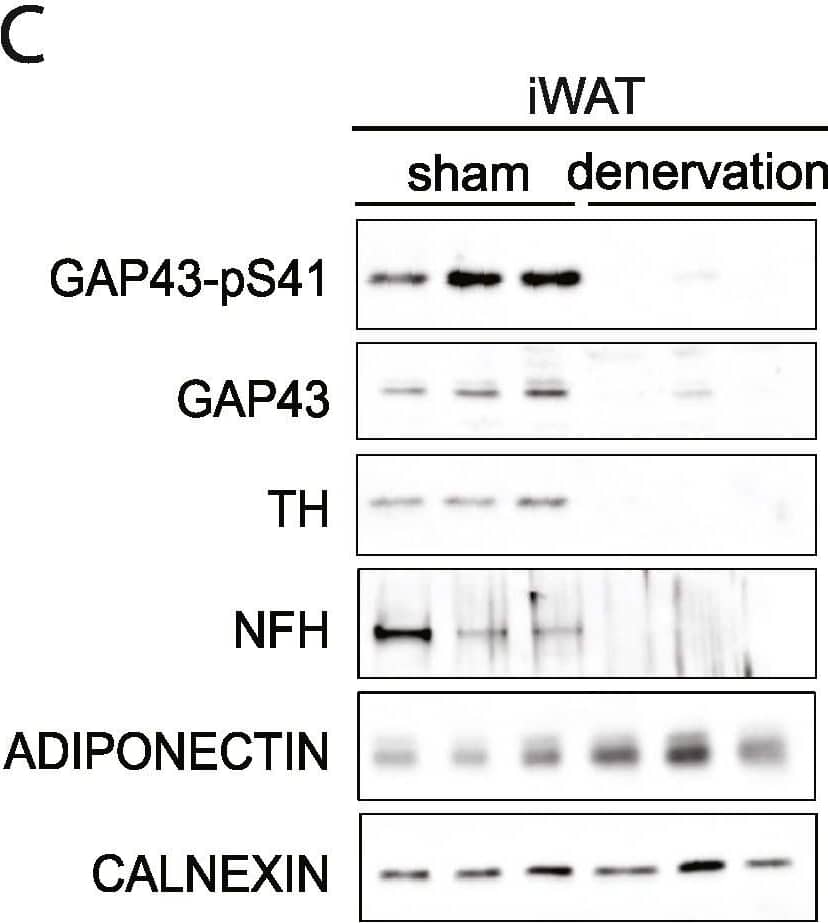

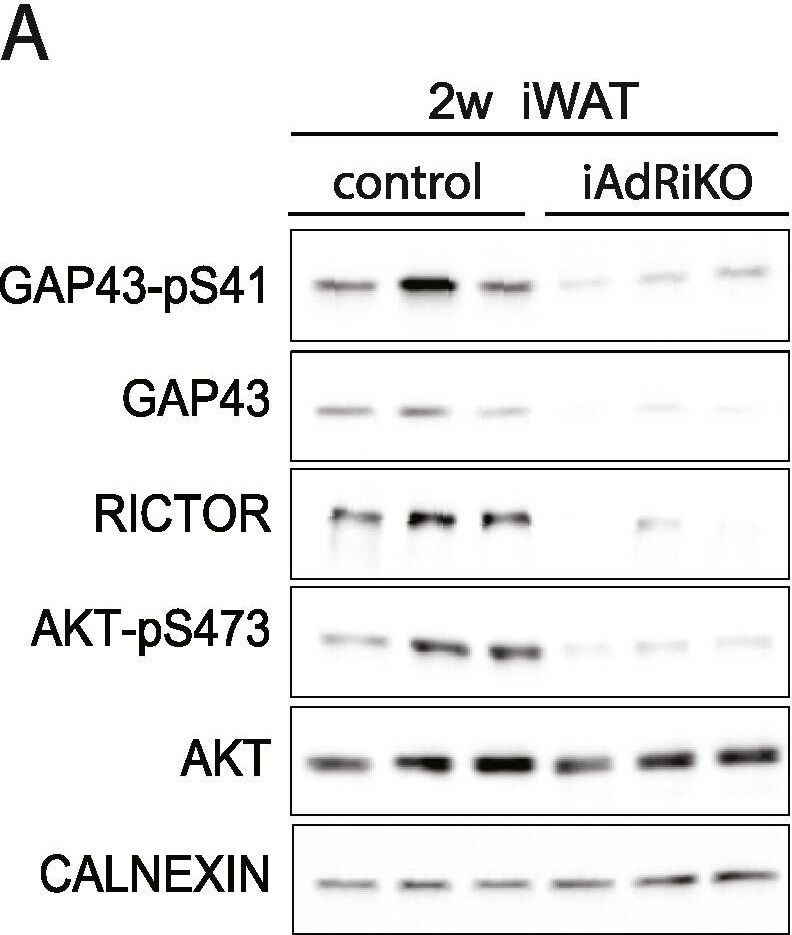

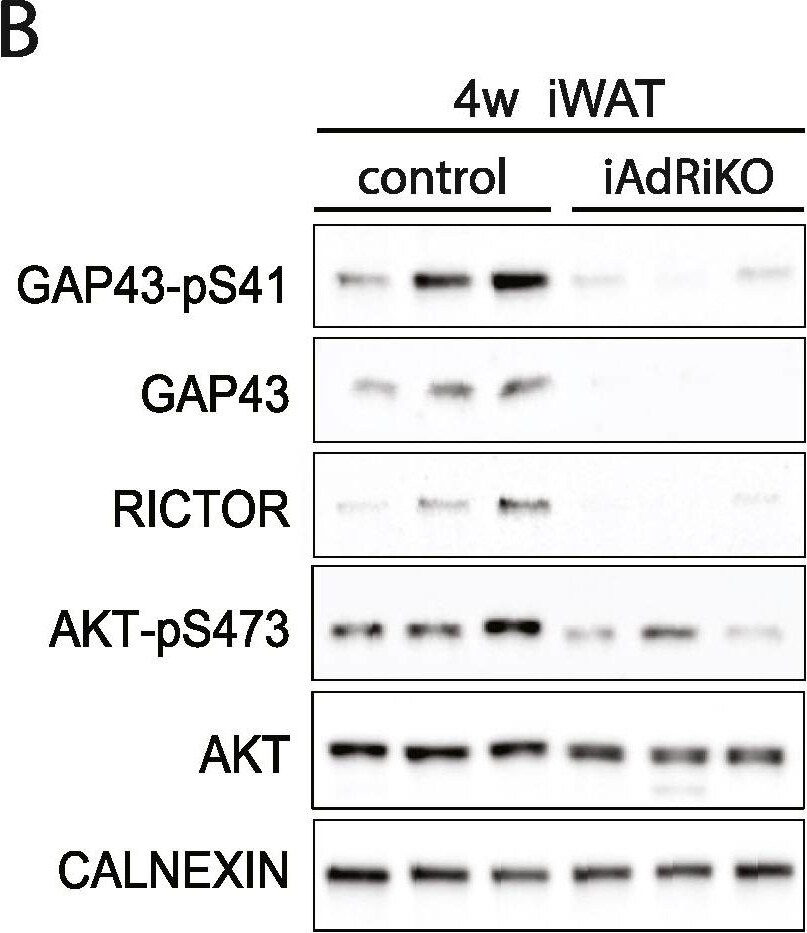

  1. Adipose mTORC2 is essential for sensory innervation in white adipose tissue and whole-body energy homeostasis
    Authors: IC Frei, D Weissenber, D Ritz, W Heusermann, M Colombi, M Shimobayas, MN Hall
    Molecular Metabolism, 2022;0(0):101580.
