Human OCIL/CLEC2d PE-conjugated Antibody FAB3480P: R&D Systems

Human OCIL/CLEC2d PE-conjugated Antibody

(1 citations)
  • Species Reactivity
  • Specificity
    Detects human OCIL/CLEC2d.
  • Source
    Monoclonal Mouse IgG1 Clone # 402659
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    E. coli-derived recombinant human OCIL/CLEC2d
    Accession # Q9UHP7
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
  • Flow Cytometry
    10 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

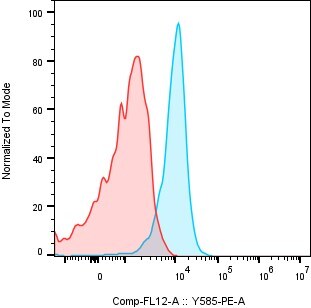

Detection of OCIL/CLEC2d in Raji Human Cell Line by Flow Cytometry. Raji human Burkitt's lymphoma cell line was stained with Mouse Anti-Human OCIL/CLEC2d PE‑conjugated Monoclonal Antibody (Catalog # FAB3480P, filled histogram) or isotype control antibody (Catalog # IC002P, open histogram). View our protocol for Staining Membrane-associated Proteins.

Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: OCIL/CLEC2d

Human OCIL (Osteoclast Inhibitory Lectin), also known as LLT1 and CLEC-2D, is a member of the NK cell receptor group of the C-type lectin superfamily. It is a type II transmembrane protein 191 amino acids (aa) in length that contains a C-terminal 132 aa extracellular domain (ECD). Within the ECD lies a C-type lectin domain (aa 75-186). There are at least two alternate splice forms of OCIL. Both exhibit splicing in the ECD. One shows a 40 aa substitution for the C-terminal 37 amino acids. A second shows a 3 aa substitution for the C-terminal 72 amino acids. The ECD of human OCIL is 49% and 50% aa identical to the ECD in mouse and rat OCIL ECD, respectively. The molecule is found on hematopoietic cells, osteoblasts and chondrocytes. It binds sulfated GAGs and NKR-P1B and D receptors, and blocks osteoclast formation.

  • Long Name:
    Osteoclast Inhibitory Lectin
  • Entrez Gene IDs:
    29121 (Human); 93694 (Mouse)
  • Alternate Names:
    CLAXLLT-1; CLEC2D; C-type lectin domain family 2 member D; C-type lectin domain family 2, member D; C-type lectin related f; Lectin-like NK cell receptor; Lectin-like transcript 1; LLT1; LLT1Osteoclast inhibitory lectin; OCIL; OCILmember D
Related Research Areas

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citations: Showing 1 - 1

  1. Human Herpesvirus 8 (HHV8) sequentially shapes the NK cell repertoire during the course of asymptomatic infection and Kaposi sarcoma.
    Authors: Dupuy S, Lambert M, Zucman D, Choukem SP, Tognarelli S, Pages C, Lebbe C, Caillat-Zucman S
    PLoS Pathog., 2012;8(1):e1002486.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
