Luminex MAGPIX Instrument with xPONENT 4.3

Discontinued Product

MAGPIX-XPON42 has been discontinued.
View all MAGPIX Instrument products.
Luminex MAGPIX Instrument with xPONENT 4.3
1 Image
Product Details
Citations (1)
Reviews (1)

Luminex MAGPIX Instrument with xPONENT 4.3 Summary

MAGPIX® is the simplest, most affordable, and most portable of Luminex's xMAP instruments. Its self-cleaning routines and magnetic bead compatibility (with MagPlex beads) make MAGPIX® extremely easy to learn and use.


  • Multiplexing: up to 50 analytes per sample volume
  • Sensitivity: single digit picogram levels of protein
  • Dynamic Range (Typical): >3.5 logs
  • Read Time: 96-well plate in < 60 min (up to 4,800 tests/hour)
  • Daily Start-Up/Shut-Down: < 15 min
  • Foot Print: 3 ft linear bench space

MAGPIX Quick Guide

Download and view Magpix instrument and software quick guide for routine setup instructions. For detailed instructions refer to the instrument user manual or the Luminex Xponent software user manual.

MAGPIX Quick Guide Download

Included with the MAGPIX

Description MAGPIX xPONENT 4.2 System
Core Instrument MAGPIX bead reader with: Sample probe-needle; Off plate reagent block; Waste bottle; Sample probe height adjustment kit; Access door tool; Documentation
Available Power Cords (pick one nation) USA, Australia, Brazil, Denmark, Germany, Sweden, France, Belgium, Spain, Switzerland, Israel, UK, Italy, Japan, India, China, S. Africa, Argentina, Korea, Taiwan
Bar-code scanner Optional, at no charge with purchase of new system
Heater Block (96-well plate) Optional, at no charge with purchase of new system
Included Software xPONENT 4.2 (3 seats),
Allele-call module (3 seats)
Remote Web Monitoring module (3 seats)
Optional Software (extra charges apply) LIS integration module
Automation interface module
Basic Security Module
21 CFR Part 11 Module (supersedes Basic Security)
Additional seats
Reagents Included MPX-CAL-K25, qty 1 (separately shipped)
MPX-PVER-K25, qty 1 (separately shipped)
MagPix Drive Fluid, qty 2 (ships with MAGPIX)
PC with Win 7 32-bit, US English PC, Desktop, USFF, WIN 7 with XPON 4.2
Dell Optiplex “Ultra Small Form Factor”
Dell Warranty Transfer
Stand, All-In-One Monitor/PC USFF
Dell 19” LCD monitor
Dell sound-bar
Dell Keyboard & mouse
PC Laptop, WIN7 with XPON4.2
Dell Latitude
Dell Warranty Transfer
MAGPIX Reagents

MAGPIX Reagents

The MAGPIX instrument requires drive fluid to serve as the delivery medium to transport the beads to the instrument’s optics. Due to the compact nature of the MAGPIX system, drive fluid is available in small pre-filled disposable containers which are stored within the instrument. Each drive fluid container provides enough fluid to read approximately ten plates of samples, and they are sold in packages of four. MAGPIX uses a calibration kit and a verification kit, each providing 25 uses.


Shipping Conditions
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at room temperature. Do not use past expiration date.

Product Datasheets

Citation for Luminex MAGPIX Instrument with xPONENT 4.3

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. Socioeconomic status and early blood concentrations of inflammation-related and neurotrophic proteins among extremely preterm newborns
    Authors: A Leviton, EN Allred, O Dammann, RM Joseph, RN Fichorova, TM O'Shea, KCK Kuban
    PLoS ONE, 2019;14(3):e0214154.  2019


  1. How can I deep-clean my Luminex MAGPIX?

    • The following protocol is from Luminex:

      Stringent Soak Routine - MAGPIX
      Please perform a self-test and follow the steps below:
      1. Go to Maintenance >> Cmds & Routines and run a Clean command with 0.1 N NaOH. After the sample is taken up in the chamber (after the probe comes back up from acquiring the reagent), press the stop button in the software, and then turn off the instrument (for 20 minutes or less, push the soft switch under the blue light).
      2. If soaking overnight or over the weekend, turn off the instrument using the soft switch and power switch (back of instrument) after reagent acquisition. Also, power down xPONENT and the PC (to avoid connection issues when re-booting).
      3. When soaking is complete, turn the instrument on first, then the PC, and allow connection to the software.
      4. Run the Maintenance >> Cmds & Routines >> *Daily Fluidics Prep routine.
      5. Run System Initialization for calibration and verification.

View all Luminex Instrumentation FAQs

Reviews for Luminex MAGPIX Instrument with xPONENT 4.3

Average Rating: 5 (Based on 1 Review)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Luminex MAGPIX Instrument with xPONENT 4.3?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

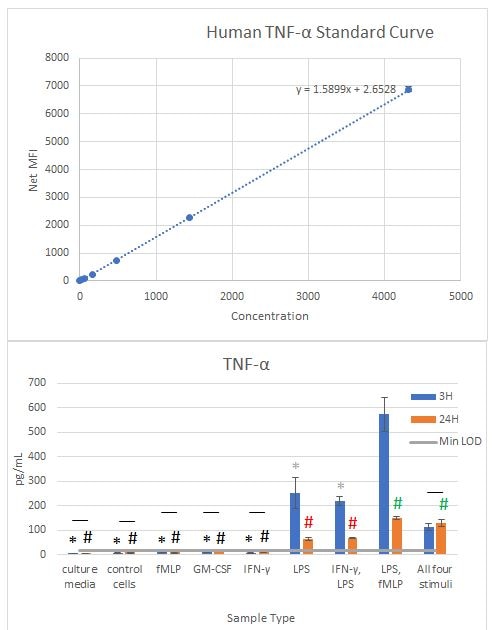

Luminex MAGPIX Instrument with xPONENT 4.2
By Anonymous on 01/11/2019

The experiment went great! The kit protocol was relatively easy to run, the values were around what I would expect, and the data was easy to analyze. Much easier than running separate ELISAs.
