Mouse Patched 1/PTCH (First Extracellular Loop) Antibody

R&D Systems | Catalog # AF4105

R&D Systems
Discontinued Product
AF4105 has been discontinued. View all Patched 1/PTCH products.

Key Product Details

Species Reactivity

Validated:

Mouse

Cited:

Mouse

Applications

Validated:

Western Blot, Flow Cytometry, CyTOF-ready

Cited:

Flow Cytometry

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG
View all Patched 1/PTCH Primary Antibodies »

Product Specifications

Immunogen

E. coli-derived recombinant mouse Patched 1/PTCH
Glu108-Asp422
Accession # Q61115

Specificity

Detects mouse Patched 1/PTCH in direct ELISAs and Western blots. In direct ELISAs, approximately 50% cross-reactivity with recombinant human Patched 1 is observed, and less than 5% cross-reactivity with recombinant mouse Patched-2 is observed.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for Mouse Patched 1/PTCH (First Extracellular Loop) Antibody

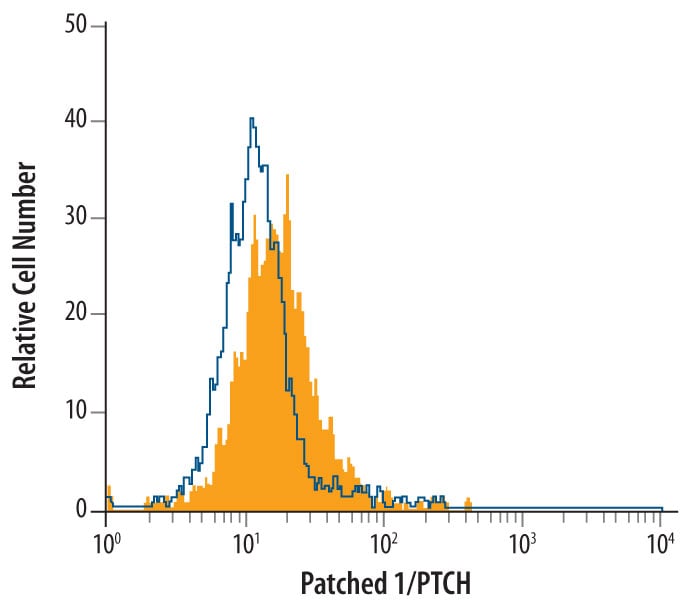

Detection of Patched 1/PTCH antibody in Neuro-2A Mouse Cell Line antibody by Flow Cytometry.

Detection of Patched 1/PTCH in Neuro‑2A Mouse Cell Line by Flow Cytometry.

Neuro-2A mouse neuroblastoma cell line was stained with Goat Anti-Mouse Patched 1/PTCH (First Extracellular Loop) Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4105, filled histogram) or isotype control antibody (Catalog # AB-108-C, open histogram), followed by Phycoerythrin-conjugated Anti-Goat IgG Secondary Antibody (Catalog # F0107).

Applications for Mouse Patched 1/PTCH (First Extracellular Loop) Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

2.5 µg/106 cells
Sample: Neuro‑2A mouse neuroblastoma cell line

Western Blot

0.1 µg/mL
Sample: Recombinant Mouse Patched (First Extracellular Loop)

Reviewed Applications

Read 1 review rated 4 using AF4105 in the following applications:

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Patched 1/PTCH

Patched (Ptch1) is a 170‑175 kDa protein that functions in Hedgehog signaling. It is found on multiple cell types and forms a constitutive, inactivating complex with Smoothened. Upon Hedgehog binding to Patched, Smoothened is released and initiates downstream signaling. Mouse Patched is a 12 transmembrane, 1434 amino acid (aa) glycoprotein that contains two terminal cytoplasmic domains. Only one mRNA species for Ptch1 has been reported in mice. However, two or more splice forms may exist, with variation occurring over the first 150 aa of the N-terminus. Mouse Patched shares 97% and 99% aa sequence identity with human and rat Patched, respectively.

Alternate Names

BCNS, HPE7, mes, NBCCS, ptc1, PTCH1

Entrez Gene IDs

5727 (Human); 19206 (Mouse); 89830 (Rat)

Gene Symbol

PTCH1

UniProt

Q61115

Additional Patched 1/PTCH Products

Product Documents for Mouse Patched 1/PTCH (First Extracellular Loop) Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Mouse Patched 1/PTCH (First Extracellular Loop) Antibody

For research use only

Citations for Mouse Patched 1/PTCH (First Extracellular Loop) Antibody

Customer Reviews (1)

4 out of 5
1 Customer Rating
5 Stars
0%
4 Stars
100%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Mouse Patched 1/PTCH (First Extracellular Loop) Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 1 of 1 review Showing All
Filter By:
Clear Filters X
  • Mouse Patched 1/PTCH (First Extracellular Loop) Antibody

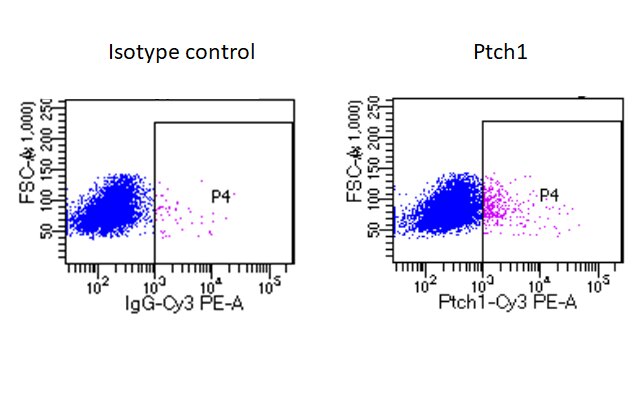

    Name: Alina Filatova
