dTAGV-1

Tocris Bioscience | Catalog # 6914

Potent and selective degrader of mutant FKBP12F36V fusion proteins
Tocris Bioscience

Key Product Details

Description

Potent and selective degrader of mutant FKBP12F36V fusion proteins
View all TAG Degradation Platforms »

Product Description

dTAGV-1 is a degrader targeting mutant FKBP12F36V fusion proteins. Comprises a ligand selective for F36V single-point mutated FKBP12, a linker and a von Hippel-Lindau (VHL)-binding ligand. Induces potent and selective degradation of FKBP12F36V fusion proteins in vitro and in vivo. Selectively degrades FKBP12F36V-EWS/FLI fusion proteins and inhibits cell proliferation in FKBP12F36V-EWS/FLI-expressing Ewing sarcoma cells.

Hydrochloride salt (Cat.No. 7374) available; suitable for in vivo use.

Negative control dTAGV-1-NEG (Cat. No. 6915) also available.

FKBP12F36V can be expressed as a fusion with a target protein of interest using genome engineering techniques, via transgene expression or CRISPR-mediated locus-specific knock-in.

Plasmid vectors for the lentiviral expression and CRISPR-mediated knock-in of FKBP12F36V are available from Addgene.

Licensing Information

Sold under license from Dana-Farber Cancer Institute

Product Specifications for dTAGV-1

Molecular Weight

1361.58

Formula

C68H90N6O14S CF3CO2H

Storage

Store at -20°C

Purity

≥98% (HPLC)

Chemical Name

(R)-3-(3,4-Dimethoxyphenyl)-1-(2-(2-((7-(((S)-1-((2S,4R)-4-hydroxy-2-(((S)-1-(4-(4-methylthiazol-5-yl)phenyl)ethyl)carbamoyl)pyrrolidin-1-yl)-3,3-dimethyl-1-oxobutan-2-yl)amino)-7-oxoheptyl)amino)-2-oxoethoxy)phenyl)propyl (S)-1-((S)-2-(3,4,5-trimethoxyphenyl)butanoyl)piperidine-2-carboxylate trifluoroacetate

CAS Number

2624313-15-9

InChI Key

KSEWNBIDXKMTNT-LNVAYBNASA-N

SMILES

C[C@H](NC([C@@H]1C[C@@H](O)CN1C([C@@H](NC(CCCCCCNC(COC2=CC=CC=C2[C@H](OC([C@@H]3CCCCN3C([C@@H](CC)C4=CC(OC)=C(OC)C(OC)=C4)=O)=O)CCC5=CC(OC)=C(OC)C=C5)=O)=O)C(C)(C)C)=O)=O)C6=CC=C(C=C6)C7=C(N=CS7)C.OC(C(F)(F)F)=O

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Solubility

Solvent Max Conc. mg/mL Max Conc. mM
Solubility
DMSO 136.16 100

Preparing Stock Solutions for dTAGV-1

The following data is based on the product molecular weight 1361.58.

Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which all affect the solvent volumes required to prepare stock solutions.

Select a batch to recalculate based on the batch molecular weight:

Concentration / Solvent Volume / Mass 1 mg 5 mg 10 mg
1 mM 0.73 mL 3.67 mL 7.34 mL
5 mM 0.15 mL 0.73 mL 1.47 mL
10 mM 0.07 mL 0.37 mL 0.73 mL
50 mM 0.01 mL 0.07 mL 0.15 mL

Calculators

Calculate the mass, volume, or concentration required for a solution.

=
x
x
g/mol

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Calculate the dilution required to prepare a stock solution.

x
=
x

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background References

References are publications that support the biological activity of the product. See our Citations tab to view 67 publications citing the usage of this product.

Product Documents for dTAGV-1

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for dTAGV-1

For research use only

Customer Reviews for dTAGV-1 (2)

5 out of 5
2 Customer Ratings
5 Stars
100%
4 Stars
0%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used dTAGV-1?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 2 的 2 reviews Showing All
Filter By:
Clear Filters X
  • Great product!
    Name: Anonymous
    Species: Mouse
    Assay Type: In Vitro
    Cell Line/Tissue: Myeloid progenitors
    Verified Customer | Posted 06/27/2025
    Make sure to mix the sample very well! It's a bit greasy when reconstituting.
    I'm using Tocris's dTAGV-1 for a transcription factor degradation experiment in a hematopoietic progenitor cell line. The dTAGV-1 works beautifully, achieving complete degradation in my cell line in about 1 hour. Shipping was very fast and my overall experience with Tocris has been great. Will buy this product from Tocris again in the future!
  • dTAGV-1 Treatment
    Name: Anonymous
    Species: Human
    Assay Type: In Vitro
    Verified Customer | Posted 05/28/2024

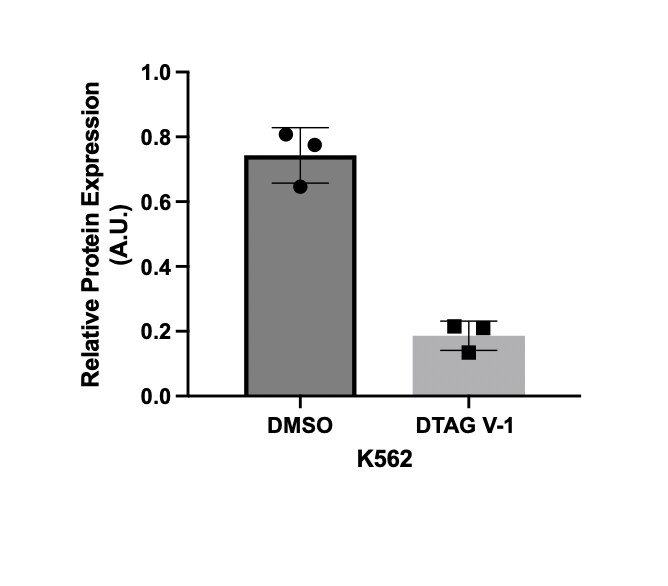

    1uM treatment used to knockdown target protein for downstream mechanistic analysis, quick and easy resuspension and treatment works for effective knockdown in as little as 24 hours
