Human IL‑20 R alpha APC‑conjugated Antibody

R&D Systems | Catalog # FAB11762A

R&D Systems
Discontinued Product
FAB11762A has been discontinued. View all IL-20R alpha products.

Key Product Details

Species Reactivity

Human

Applications

Flow Cytometry

Label

Allophycocyanin (Excitation = 620-650 nm, Emission = 660-670 nm)

Antibody Source

Monoclonal Mouse IgG1 Clone # 173714
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human IL-20 R alpha
Val30-Lys250
Accession # Q9UHF4

Specificity

Detects human IL-20 R alpha in direct ELISAs and Western blots. In Western blots, approximately 5‑15% cross‑reactivity with recombinant human (rh) IFN-gamma R2, rhIL-10 R, rhIL-10 R beta, rhIL-20 R beta, and rhIL-22 BP is observed and no cross-reactivity with rhIFN-gamma RI, recombinant mouse IL‑20 R alpha, or rhIL‑22 R is observed.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for Human IL‑20 R alpha APC‑conjugated Antibody

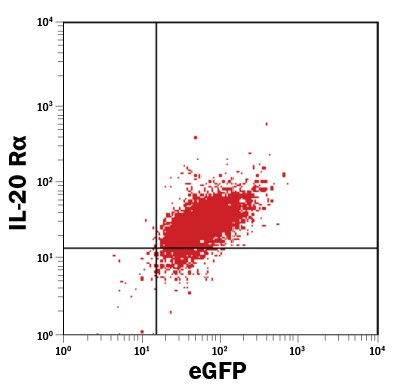

Detection of IL-20 Ra antibody in BaF3 Mouse Cell Line Transfected with Human IL-20 Ra antibody by Flow Cytometry.

Detection of IL‑20 R alpha in BaF3 Mouse Cell Line Transfected with Human IL-20 R alpha by Flow Cytometry.

BaF3 mouse pro-B cell line transfected with Human IL-20 R alpha and eGFP was stained with Mouse Anti-Human IL‑20 R alpha APC‑conjugated Monoclonal Antibody (Catalog # FAB11762A). Quadrant markers were set based on control antibody staining. View our protocol for Staining Membrane-associated Proteins.

Applications for Human IL‑20 R alpha APC‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: BaF3 mouse pro-B cell line transfected with Recombinant Human IL-20 R alpha (Catalog # 1102-IL) and eGFP

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8° C. Do not use past expiration date. Protect from light.

Background: IL-20R alpha

IL-20 receptor alpha (IL-20 R alpha ), also named IL-20 R1, CRF2-8, and ZCYTOR7, belongs to the class II cytokine receptor family, which includes 12 members. These receptors are characterized by the patterns of conserved amino acid (aa) residues in their extracellular domains, which are composed of tandem fibronectin type III domains (1). Class II cytokine receptors form heterodimeric signaling receptor complexes that mediate class II cytokine signals. Subunits of the different receptor complexes are shared and serve multiple functions (1).

The gene for human IL-20 R alpha is mapped to chromosome 6 and encodes a 553 aa glycoprotein with a 29 aa signal peptide, a 221 aa extracellular domain, a 24 aa transmembrane region and a 279 aa intracellular domain (2). IL-20 R alpha is widely expressed and is detected at high levels in multiple tissues including skin, testis, heart, placenta, salivary gland and prostate gland (1). The expression of IL-20 R alpha, together with that of IL-20 R beta, is upregulated in psoriatic skin lesions on keratinocytes, immune cells, and endothelial cells (1, 2).

IL-20 R alpha heterodimerizes with IL-20 R beta to form the functional receptor that mediates IL-19, IL-20 and IL-24 signals (3, 4). IL-20 R alpha also heterodimerizes with IL-10 R beta to form the functional receptor complex for IL-26 (5). Binding of these IL-10 family class II cytokines to their functional receptors induces activation of the JAK-STAT signal transduction pathway. At low ligand concentrations, STAT3 has been shown to be the predominant STAT proteins activated through either complexes (3‑5).

References

  1. Kotenko, S.V. (2003) Cytokine & Growth Factor Reviews 13:223.
  2. Xie, M.H. et al. (2000) J. Biol. Chem. 275:31335.
  3. Dumoutier, L. et al. (2001) J. Immunol. 167:3534.
  4. Parrish-Novak, J. et al. (2002) J. Biol. Chem. 277:47517s.
  5. Sheikh. F. et al. (2004) J. Immunol. 172:2006.

Long Name

Interleukin 20 Receptor alpha

Alternate Names

CRF2-8, IL-20 R alpha, IL-20R1, IL-20Ra, IL20R alpha, IL20RA, zcytor7

Entrez Gene IDs

53832 (Human); 237313 (Mouse)

Gene Symbol

IL20RA
