Luminex MAGPIX Instrument: Accessible Multiplex Protein Analysis

Accelerate your science with affordable multiplexing—powered by R&D Systems and MAGPIX®

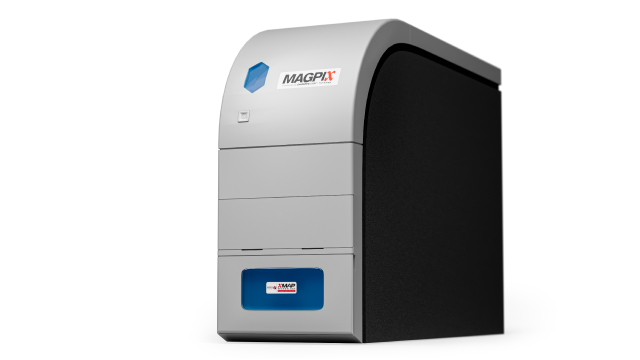

What is the MAGPIX System?

The MAGPIX System is an easy-to-use, affordable, and compact multiplexing platform. Based on the proven xMAP® technology, this instrument enables scientists to measure multiple proteins in a single reaction, reducing the cost per data point for testing multiple analytes.

This compact fluorescent-based detection system is capable of measuring up to 50 analytes in a single well of a 96-well plate by immobilizing beads with magnetic force, exciting them using light-emitting diodes (LEDs), and detecting the color coded microshperes and analytes using a CMOS camera—all within 60 minutes. The result is reproducible data you can trust and that can be analyzed using R&D Systems Quantist software. In addition, streamlined startup and shutdown protocols, and minimal maintenance requirements, make the system easy to use for both new and experienced users.

Specifications

Physical Dimensions	16.5 cm x 60 cm x 43 cm (6.5” x 23.5” x 17”)
Weight	18 kg (40 lb)
Power Supply	100-120 volts (U.S.) or 200-240 volts (EU)
Multiplexing	Up to 50 analytes per sample volume
Sensitivity	≤ 700 PE per xMAP microsphere
Dynamic Range (Typical)	> 3.5 logs
Plate Run Time	96-well plate in ≤ 60 min (up to 4,800 tests/hour)

Why the MAGPIX from R&D Systems is the Right Choice for Your Lab

Today’s labs are under pressure to generate deeper insights, faster—often with limited samples, tighter budgets, and constrained space. The MAGPIX is purpose-built to meet those demands, delivering powerful multiplexing capabilities in a compact, cost-effective, and easy-to-use system.

Traditional ELISA workflows can quickly become resource intensive as the number of analytes increases. MAGPIX streamlines this process by combining multiple measurements into a single assay, reducing reagent usage, consumables, hands-on labor, and accelerating time to insight. The result is a lower cost per data point—without compromising data quality.

Speed is equally critical. MAGPIX processes a full 96-well plate in approximately one hour, producing thousands of data points in a single run. This throughput supports faster decision-making and keeps research moving forward without bottlenecks.

In a landscape where efficiency, flexibility, and performance matter more than ever, MAGPIX provides a practical, scalable solution. It empowers labs to do more with less—maximizing data, minimizing complexity, and accelerating discovery.

Let R&D Systems and MAGPIX help you stay ahead with consistent multiplex biomarker data delivered quickly and efficiently.
