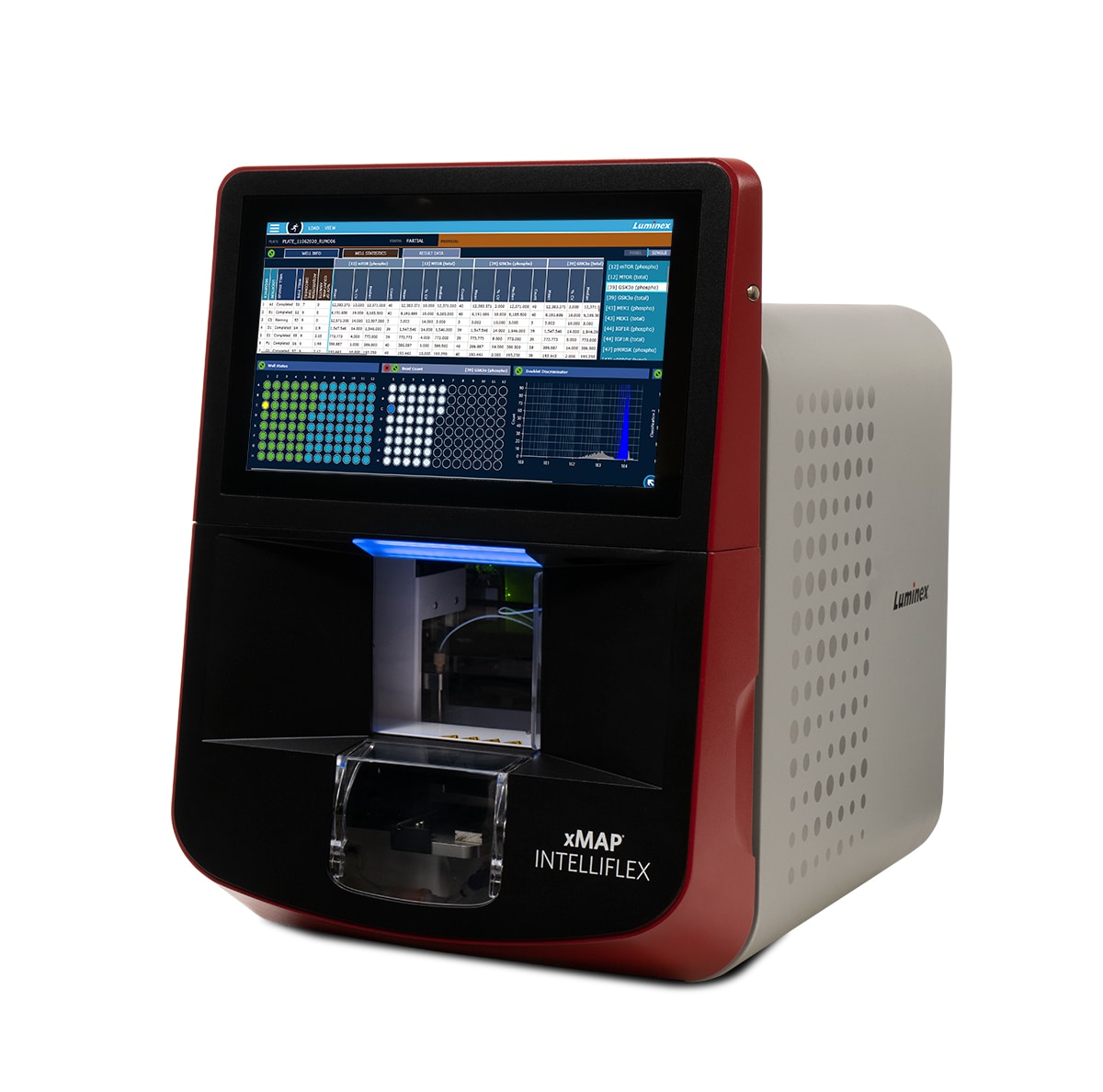

Luminex® INTELLIFLEX, Single Reporter

Catalog #: INTELLIFLEX-RUO Datasheet / COA / SDS

INTELLIFLEX Single Reporter

The Luminex xMAP INTELLIFLEX Single Reporter is an advanced multiplexing platform that delivers accurate and reliable protein measurement results. Designed for a 96- or 384-well high throughput format, the xMAP INTELLIFLEX system can save substantial time. With features such as a large dynamic range, integrated touchscreen PC, built-in barcode reader, and automated startup, shutdown, and maintenance, this instrument provides a simplified user experience. The xMAP INTELLIFLEX Single Reporter is compatible with all R&D System Luminex assays and the Quantist Analysis Software.
1 Image
Product Details

Luminex® INTELLIFLEX, Single Reporter Summary


Advanced and intuitive software for analyzing multiplexing assays.
The xMAP® INTELLIFLEX is a new compact, versatile, and flow-based multiplexing platform.  Featuring an embedded PC and touchscreen with a significantly reduced footprint, the INTELLIFLEX system provides an intuitive data acquisition solution.  With the proven performance of xMAP technology and enhanced performance, the INTELLIFLEX instrument will empower assay development and simplify the user experience.
  • Multiplexing: Up to 500 analytes in a single sample volume
  • Broad Dynamic Range >5.5 logs reducing repeats due to out-of-range values
  • Intuitive UI: Easy-to-use interface empowers you to optimize workflows, gather performance insights, and export data into common analysis tools
  • Compact Footprint: Smaller size and onboard PC and touchscreen interface saves bench space
  • Read Time: 96-well plate in <20 min; 384-well plate in <75 min

About the INTELLIFLEX-RUO System

The XMAP INTELLIFLEX instruments require sheath fluid to serve as the delivery medium to transport the beads to the instruments' optics.  The instruments have the option of a 20L disposable external sheath fluid container or a compact 20X sheath fluid concentrate pack, which can be reconstituted with water to a working volume of 20L when needed.  The XMAP INTELLIFLEX instruments are calibrated using a calibration and a verification kit, each providing 20 uses.

Download the user guide for routine setup instructions.  For more detailed information, refer to the instrument manual or software user manual.

Included with the INTELLIFLEXxMAP® INTELLIFLEX RUO Instrument

  • xMAP® INTELLIFLEX Software (Installed)
  • xMAP® INTELLIFLEX Quick Guide
  • xMAP® INTELLIFLEX Performance Verification Kit (IFX-PVER-K20)
  • xMAP® INTELLIFLEX Calibration Kit (IFX-CAL-K20)
  • (3) Sample Probe Needles (CN-0221-01)
  • Sample Probe Height Adjustment Kit (CN-0263-01)
  • Power Cable, Country-Specific (CN-PXXX*-01)
  • Off-Plate Reagent Block (CN-0514-01)
  • Keyboard and Mouse Combo
  • Heater Block for 96-Well Microtiter Plates (CN-0224-01)
  • Heater Block for 384-Well Microtiter Plates (CN-0223-01)
  • Empty Cubitainer for Waste
*XXX is a country-specific part number.  For more information, contact Luminex Technical Support.

Key differences between xMAP INTELLIFLEX software and xPONENT® software
Plate Configuration INTELLIFLEX uses an intuitive, non-linear workflow, supporting the import of independent panels, plate layouts, and sample lists, and allowing the user to assemble plates from modular components. xPONENT uses a fixed, linear workflow - some elements are importable, but users must package all acquisition parameters into a single protocol template prior to acquisition.
Run Monitoring INTELLIFLEX allows the user to concurrently view multiple statistics for analytes.  Combined with added heat map visualizations, rapid insights into run performance are available in real time. xPONENT allows the user to view either a single statistic or analyte during a run and provides a historgram and bead classifications and visualizations.
Results INTELLIFLEX supports the xPONENT format for compatibility with existing xMAP data analysis tools, as well as a new, easy-to-interpret INTELLIFLEX-native format which can be easily customized. xPONENT provides a single, non-customizable data output format.



Store the unopened product at room temperature. Do not use past expiration date.
