Mouse IL-22 R alpha 1 PerCP-conjugated Antibody

Catalog # Availability Size / Price Qty
FAB42941C
Detection of IL‑22 R alpha 1 in Hepa 1‑6 Mouse Cell Line by Flow Cytometry.
1 Image
Product Details
FAQs
Supplemental Products
Reviews

Mouse IL-22 R alpha 1 PerCP-conjugated Antibody Summary

Species Reactivity
Mouse
Specificity
Detects mouse IL-22 R alpha 1 in direct ELISAs. In direct ELISAs, 25% cross-reactivity with recombinant human (rh) IL‑22 R alpha 1 is observed and no cross-reactivity with rhIL-20 R alpha, recombinant mouse (rm) IL-20 R alpha, rhIL-22BP, or rmIL-22BP is observed.
Source
Monoclonal Rat IgG2A Clone # 496514
Purification
Protein A or G purified from hybridoma culture supernatant
Immunogen
Mouse myeloma cell line NS0-derived recombinant mouse IL-22 R alpha 1
Thr18-Ala228
Accession # Q80XZ4
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Label
PerCP (Peridinin-chlorophyll Protein Complex)

Applications

Recommended Concentration
Sample
Flow Cytometry
10 µL/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Data Example

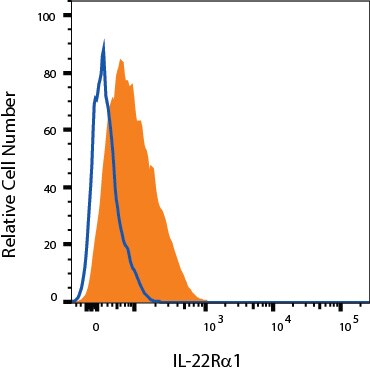

Flow Cytometry Detection of IL‑22 R alpha 1 in Hepa 1‑6 Mouse Cell Line by Flow Cytometry. View Larger

Detection of IL‑22 R alpha 1 in Hepa 1‑6 Mouse Cell Line by Flow Cytometry. Hepa 1‑6 mouse hepatoma cell line was stained with Rat Anti-Mouse IL‑22 R alpha 1 PerCP‑conjugated Monoclonal Antibody (Catalog # FAB42941C, filled histogram) or isotype control antibody (Catalog # IC006C, open histogram). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: IL-22 R alpha 1

The IL-22 receptor, also known as IL-22 R alpha 1 and CRF2-9, is an approximately 65 kDa type I transmembrane glycoprotein that belongs to the type II cytokine receptor family (CRF). Mouse IL-22 R alpha 1 contains a 215 amino acid (aa) extracellular domain (ECD) with two fibronectin type III repeats, and a 330 aa cytoplasmic region (1). Within the ECD, mouse IL-22 R alpha 1 shares 78%, 78%, and 94% aa sequence identity with canine, human, and rat IL-22 R alpha 1, respectively. It shares 20%‑26% aa sequence identity with the ECDs of other class II receptors IL-10 R, IL-20 R, and IL-28 R. IL-22 R alpha 1 associates with either IL-10 R beta or IL-20 R beta to form receptor complexes with distinct ligand selectivities. IL-10 R beta is a shared subunit of the IL-10, -22, -26, -28, and -29 receptors, while IL-20 R beta is a shared subunit of the IL-19, -20, -22, and -24 receptors (2). IL-22 R alpha 1/IL-10 R beta is an IL-22 responsive receptor (3, 4), and IL-22 R alpha 1/IL-20 R beta is an IL-20 or IL-24 responsive receptor (5, 6). In both cases, IL‑22 R alpha 1 functions as the high affinity ligand binding subunit, and subsequent association with IL-10 R beta or IL-20 R beta serves to stabilize the complex (3, 6‑9). IL‑22 R alpha 1 contains cytoplasmic motifs for interactions with signal transduction molecules, but association with IL-10 R beta or IL-20 R beta is required for signal transduction (3, 7). IL-22BP functions as a competitive antagonist by binding IL-22 and preventing its association with IL-22 R alpha 1 (8, 10). Even though it is a receptor for interleukins, IL‑22 R alpha 1 is not expressed on hematopoietic cells (7, 11, 12). Instead, IL-22 R alpha 1 expression is restricted to epithelial and stromal cells (7, 11‑14). IL‑22 R alpha 1 signaling promotes innate immune responses and wound healing at sites of infection and inflammation. This includes upregulation of antimicrobial, acute phase, proinflammatory, and extracellular matrix proteins as well as proteases (4, 12, 14, 15). IL‑22 R alpha 1 signaling also promotes downregulation of proteins involved in keratinocyte differentiation (4, 15).

References
  1. Tachiiri, A. et al. (2003) Genes Immun. 4:153.
  2. Langer, J.A. et al. (2004) Cytokine Growth Factor Rev. 15:33.
  3. Xie, M-H. et al. (2000) J. Biol. Chem. 275:31335.
  4. Boniface, K. et al. (2005) J. Immunol. 174:3695.
  5. Dumoutier, L. et al. (2001) J. Immunol. 167:3545.
  6. Wang, M. et al. (2002) J. Biol. Chem. 277:7341.
  7. Kotenko, S.V. et al. (2001) J. Biol. Chem. 276:2725.
  8. Li, J. et al. (2004) Int. Immunopharmacol. 4:693.
  9. Logsdon, N.J. et al. (2002) J. Interferon Cytokine Res. 22:1099
  10. Kotenko, S.V. et al. (2001) J. Immunol. 166:7096.
  11. Nagalakshmi, M.L. et al. (2004) Int. Immunopharmacol. 4:577.
  12. Nagalakshmi, M.L. et al. (2004) Int. Immunopharmacol. 4:679.
  13. Aggarwal, S. et al. (2001) J. Interferon Cytokine Res. 21:1047.
  14. Wolk, K. et al. (2004) Immunity 21:241.
  15. Wolk, K. et al. (2006) Eur. J. Immunol. 36:1309.
Long Name
Interleukin 22 Receptor
Entrez Gene IDs
58985 (Human); 230828 (Mouse)
Alternate Names
CRF2-9; CRF2-9interleukin 22 receptor; Cytokine receptor class-II member 9; Cytokine receptor family 2 member 9; IL-22 R alpha 1; IL-22 receptor subunit alpha-1; IL22R alpha 1; IL22R; IL22R1; IL22RA1; IL-22Ra1; IL-22R-alpha-1; IL-TIF-R1; interleukin 22 receptor, alpha 1; interleukin-22 receptor subunit alpha-1; zcytoR11
