Mouse RAGE/AGER Alexa Fluor® 647‑conjugated Antibody

R&D Systems | Catalog # FAB11795R

R&D Systems

Key Product Details

Species Reactivity

Mouse

Applications

Flow Cytometry

Label

Alexa Fluor 647 (Excitation = 650 nm, Emission = 668 nm)

Antibody Source

Monoclonal Rat IgG2A Clone # 697023
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse RAGE
Gly23-Leu342
Accession # NP_031451

Specificity

Detects mouse RAGE in direct ELISAs and Western blots. In Western blots, approximately 15% cross-reactivity with recombinant canine RAGE and no cross-reactivity with recombinant human RAGE or recombinant rat RAGE is observed.

Clonality

Monoclonal

Host

Rat

Isotype

IgG2A

Scientific Data Images for Mouse RAGE/AGER Alexa Fluor® 647‑conjugated Antibody

Detection of RAGE antibody in Mouse Splenocytes antibody by Flow Cytometry.

Detection of RAGE in Mouse Splenocytes by Flow Cytometry.

Mouse splenocytes either (A) unstimulated or (B) stimulated to induce Th1 cells were stained with Rat Anti-Mouse RAGE Alexa Fluor® 647-conjugated Monoclonal Antibody (Catalog # FAB11795R) and Rat Anti-Mouse CD4 PE-conjugated Monoclonal Antibody (FAB554P). Quadrant markers were set based on control antibody staining (IC006R). View our protocol for Staining Membrane-associated Proteins.

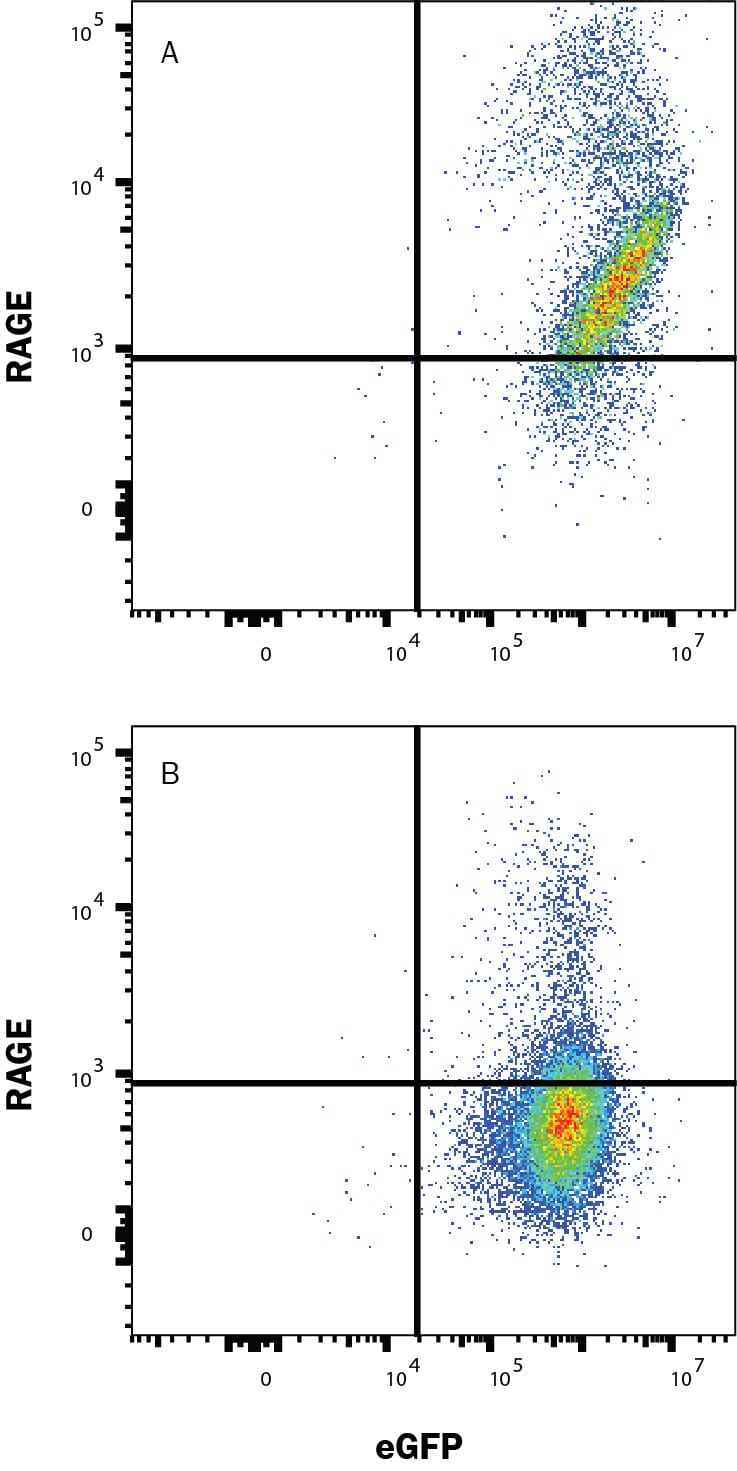

Detection of RAGE/AGER in HEK293 cells by Flow Cytometry.

HEK293 cells transfected with mRAGE and eGFP (A) vs irrelevant and eGFP (B) were stained with Rat Anti-Mouse RAGE/AGER Alexa Fluor® 647‑conjugated Monoclonal Antibody (Catalog # FAB11795R). View our protocol for Staining Membrane-associated Proteins.

Applications for Mouse RAGE/AGER Alexa Fluor® 647‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

Titration recommended for optimal concentration with starting range of 0.1-1 µg/1 million cells. Samples used for this experiment were Mouse splenocytes stimulated to induce Th1 cells and HEK293 cells transfected with mRAGE and eGFP vs irrelevant.

Reviewed Applications

Read 1 review rated 4 using FAB11795R in the following applications:

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: RAGE/AGER

Advanced glycation endproducts (AGE) are adducts formed by the non-enzymatic glycation or oxidation of macromolecules (1). AGE forms during aging and its formation is accelerated under pathophysiologic states such as diabetes, Alzheimer’s disease, renal failure and immune/inflammatory disorders. Receptor for Advanced Glycation Endoproducts (RAGE), named for its ability to bind AGE, is a multiligand receptor belonging the immunoglobulin (Ig) superfamily. Besides AGE, RAGE binds amyloid beta -peptide, S100/calgranulin family proteins, high mobility group B1 (HMGB1, also know as amphoterin) and leukocyte integrins (1, 2).

The mouse RAGE gene encodes a 403 amino acid (aa) residue type I transmembrane glycoprotein with a 22 aa signal peptide, a 319 aa extracellular domain containing a Ig-like V-type domain and two Ig-like Ce-type domains, a 21 aa transmembrane domain and a 41 aa cytoplasmic domain (3). The V-type domain and the cytoplasmic domain are important for ligand binding and for intracellular signaling, respectively. Two alternative splice variants, lacking the V-type domain or the cytoplasmic tail, are known (1, 4). RAGE is highly expressed in the embryonic central nervous system (5). In adult tissues, RAGE is expressed at low levels in multiple tissues including endothelial and smooth muscle cells, mononuclear phagocytes, pericytes, microglia, neurons, cardiac myocytes and hepatocytes (6). The expression of RAGE is upregulated upon ligand interaction. Depending on the cellular context and interacting ligand, RAGE activation can trigger differential signaling pathways that affect divergent pathways of gene expression (1, 7). RAGE activation modulates varied essential cellular responses (including inflammation, immunity, proliferation, cellular adhesion and migration) that contribute to cellular dysfunction associated with chronic diseases such as diabetes, cancer, amyloidoses and immune or inflammatory disorders (1).

References

  1. Schmidt, A. et al. (2001) J. Clin. Invest. 108:949.
  2. Chavakis, T. et al. (2003) J. Exp. Med. 198:507.
  3. Renard, C. et al. (1997) Mol. Pharmacol. 52:54.
  4. Yonekura, H. et al. (2003) Biochem. J. 370:1097.
  5. Hori, O. et al. (1995) J. Biol. Chem. 270:25752.
  6. Brett, J. et al. (1993) Am. J. Pathol. 143:1699.
  7. Valencia, J.V. et al. (2004) Diabetes 53:743.

Long Name

Receptor for Advanced Glycation End Products

Alternate Names

AGER, SCARJ1

Entrez Gene IDs

177 (Human); 11596 (Mouse); 81722 (Rat); 403168 (Canine)

Gene Symbol

AGER

UniProt

Additional RAGE/AGER Products

Product Documents for Mouse RAGE/AGER Alexa Fluor® 647‑conjugated Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Mouse RAGE/AGER Alexa Fluor® 647‑conjugated Antibody


This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.

For research use only

Citations for Mouse RAGE/AGER Alexa Fluor® 647‑conjugated Antibody

Customer Reviews for Mouse RAGE/AGER Alexa Fluor® 647‑conjugated Antibody (1)

4 out of 5
1 Customer Rating
5 Stars
0%
4 Stars
100%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Mouse RAGE/AGER Alexa Fluor® 647‑conjugated Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 1 of 1 review Showing All
Filter By:
  • Mouse RAGE Alexa Fluor® 647-conjugated Antibody
    Name: Mahesh Raundhal
    Application: Flow Cytometry
    Sample Tested: Murine Splenocytes (C57B6)
    Species: Mouse
    Verified Customer | Posted 03/30/2018
    Mouse splenocytes were incubated with 1:100 dilution of AF647 anti-RAGE for 25 mins at 4 C. Excess antibody was washed off and cells were analyzed using CytoFlex LX.
