Mouse XL Cytokine Luminex® Performance Premixed Kit

Build your own Luminex Assay with our Luminex Assay Customization Tool.

U.S. orders usually ship in 5-10 business days

Build Now
Mouse XL Cytokine Luminex Panel Standard Curves
3 Images
Product Details
Supplemental Products

Mouse XL Cytokine Luminex® Performance Premixed Kit Summary

Panel Luminex Performance Mouse XL Cytokine Panel
Assay Type Magnetic bead-based multiplex assay for the Luminex® platform
Format 1 x 96-well microplate and Magnetic antibody-coated beads
Species Mouse
Analytes Detected Please see analyte list in assay customization tool below.
Performance Validation Our Luminex High Performance Assays undergo our most extensive validation testing. All Luminex High Performance Assay Panels are validated for use with serum and plasma samples. Some High Performance Assays are additionally validated for cell culture supernatants, milk, saliva, or urine, as indicated on the individual product data sheets. Luminex High Performance Assays are tested for sensitivity (three-quarters the low standard), intra-assay precision, inter-assay precision, and to ensure assay linearity for validated sample types. Recovery values for individual samples in validated sample types are also tested. Validation data for each analyte can be found in the product datasheet.

Make your selections below to configure your assay

Filter Analytes
Select All Select None


Below are kits that are available based on your selections. These selections may be further customized before adding to the cart or emailing the configuration to your purchasing department or local distributor to place your order. Selected analytes may be included in more than one High Performance Assay. All assay options are displayed.

If you run into bead region incompatibilities, send your Luminex code to our team and find out more.

How would you like these analytes mixed?

User Mixed
Please select at least one mixing option to see the kits.

Would you like to split based on dilution?

Do not split
Split based on serum
Split based on plasma
Split based on cell culture supernates

Not finding your analyte of interest? View our complete Luminex offering in the full version of our Luminex Assay Customization Tool. We also offer Custom Luminex Services.

Product Features

Magnetic Luminex High Performance Assays are flexible bead-based multiplex assays. They allow up to 50 user-defined target analytes to be simultaneously profiled using cell culture supernates, serum, or plasma samples. Some panels are also validated with human milk, saliva, and/or urine samples.

  • Simultaneously profile up to analytes of your choice in one sample
  • Magnetic format allows for easier wash steps
  • Undergoes similar validation testing as Quantikine® ELISA Kits
  • Precise and Specific
  • Requires a small sample volume (<50 µL)
  • Run your assay in just 3-5 hours
  • Mass-calibrated standards for consistent results with every new lot of material
  • Enough reagents for one 96-well plate
Kit Components
  • Premixed cocktail of antibody-coated Magnetic beads
  • Premixed cocktail of biotinylated detection antibody
  • Standard Cocktail(s)
  • Bead Diluent
  • Biotin Antibody Diluent
  • Calibrator Diluent
  • Wash Buffer
  • Streptavidin-PE
  • One flat-bottom 96-well Microplate
  • Foil Plate Sealers (4)
  • Mixing Bottle
  • Standard Value Card**
  • High and low controls with Control Mean Value Card

**A standard curve must be generated each time an assay is run, utilizing values from the Standard Value Card included in the Kit.

Background: Luminex Mouse Cytokine Panel

Mouse models have been used widely in biomedical research in preclinical and translation medicine research and across multiple research areas such as immunology, cancer, infectious diseases, and immune profiling. Due to their share of a significant amount of genetic and biological similarities with humans, mouse models have been ideal for studying human diseases and their potential treatments.

The Mouse XL Cytokine Luminex Panel allows up to 45 mouse biomarkers to be detected in a single sample including CXCL1, IL-6, TNF-alpha, IL-1beta, IL-10, IFN-gamma, and MCP-1. The measurement and analysis of cytokines in biological fluids has become increasingly important due to their integral role in regulating growth, cellular proliferation, and host response to infection, injury, and inflammation, as well as their influence on reproduction and bone remodeling. While traditional techniques for quantifying cytokines, such as bioassay, ELISA, intracellular staining, RPA, and PCR, have limitations and cannot measure multiple cytokines simultaneously in the Luminex Mouse Cytokine Panel offers an efficient and cost-effective solution. The Luminex Mouse Cytokine Assay offers various options for cytokine analysis, including premix, user mix, and fixed panel. This feature makes it an invaluable tool for uncovering insights that would not be possible through the analysis of a single protein. The Luminex Mouse Panel is ideal for both basic research and clinical diagnostics, providing researchers and clinicians with a better understanding of the intricate interplay between cytokines in biological systems.


Intra-Assay Precision - is generated from the mean of the %CV's from 40 reportable results across two different concentrations of analytes in a single serum assay

Inter-Assay Precision - is generated from the mean of the %CV's across two different concentrations of analytes across 40 different serum assays.

  n=40 (20x2 levels) n=30
Analyte Intra-Assay (%CV) Inter-Assay (%CV)
BAFF/BLyS/TNFSF13B 1.6 11.8
CCL2/JE/MCP-1 2.1 11.9
CCL3/MIP-1 alpha 2.1 11.0
CCL4/MIP-1 beta 1.5 6.8
CCL5/RANTES 2.6 9.7
CCL11/Eotaxin 2.8 12.3
CCL19/MIP-3 beta 2.3 11.1
Chitinase 3-like 1 2.4 16.7
CXCL1/KC 1.9 96
CXCL10/IP-10/CRG-2 2.5 12.4
EGF 2.0 11.7
FGF-basic 2.1 10.4
Flt-3 ligand 1.9 12.1
G-CSF 2.6 12.1
GDF-15 2.1 12.0
GM-CSF 2.3 11.6
ICAM-1 1.9 12.6
IFN-gamma 2.1 9.2
IL-1 alpha/IL-1F1 2.2 10.7
IL-1 beta/IL-1F3 1.9 11.9
IL-2 1.7 12.5
IL-3 2.1 11.2
IL-4 2.3 13.0
IL-5 5.6 10.8
IL-6 2.0 11.3
IL-7 2.9 14.5
IL-9 1.7 7.3
IL-10 1.7 11.7
IL-11 2.4 13.8
IL-12 p70 2.8 12.2
IL-13 3.0 14.2
IL-16 1.7 10.5
IL-17A 1.4 11.4
IL-18 5.1 14.8
IL-21 3.3 16.1
IL-27 2.2 9.7
IL-31 2.5 14.1
LDL R 2.5 11.2
LIF 2.0 12.9
LIX 2.4 11.0
M-CSF 2.1 11.6
TIMP-1 1.9 8.9
TNF-alpha 1.6 9.9
VEGF 2.1 11.9


Linearity - The data represents mean spiked or natural linearity in serum matrix samples. Samples with natural linearity are marked with an asterisk.

Spike Recovery - The data represents mean percent recovery of spiked standards ranging from low, medium, and high concentration in serum matrix samples.

  Linearity Spiked
Analyte N Average % N Average %
CCL2/JE/MCP-1 4 109 4 98
CCL3/MIP-1 alpha 4 105 4 107
CCL4/MIP-1 beta 4 119 4 85
CCL5/RANTES 4 144 4 76
CCL11/Eotaxin* 4 82 4 HE
CCL19/MIP-3 beta 4 99 4 107
Chitinase 3-like 1* 4 89 4 HE
CXCL1/KC 4 109 4 96
CXCL10/IP-10/CRG-2 4 108 4 104
EGF 4 148 4 67
FGF-basic 4 133 4 86
Flt-3 ligand 4 104 4 104
G-CSF 4 4
GDF-15 4 4
GM-CSF 4 128 4 86
ICAM-1 4 131 4 88
IFN-gamma 4 153 4 56
IL-1 alpha/IL-1F1 4 136 4 76
IL-1 beta/IL-1F2 4 115 4 97
IL-1ra/IL-1F3 4 145 4 64
IL-2 4 112 4 96
IL-3 4 165 4 53
IL-4 4 136 4 67
IL-5 4 99 4 101
IL-6 4 120 4 91
IL-7 4 105 4 104
IL-9 4 119 4 98
IL-10 4 145 4 65
IL-11 4 4
IL-12 p70 4 113 4 88
IL-13 4 119 4 56
IL-16 3 135 3 86
IL-17A 4 116 4 92
IL-18 4 4
IL-21 4 109 4 91
IL-27 4 158 4 50
IL-31 4 136 4 70
LDL R 4 108 4 104
LIF 4 4
LIX 4 4
M-CSF 4 117 4 100
TIMP-1 4 99 4 119
TNF-alpha 4 109 4 97
VEGF 4 130 4 78
"◊" Not recommended for particular sample type, see Samples Collection section for reference.
*Natural linearity
"HE" Spiked recovery was not observed due to natural linearity in high endogenous samples.
Which Luminex Assay is right for me?

Assays for the Luminex platform are offered as High Performance Assays or Assays. The Luminex High Performance Assays are fully validated panels with a focused selection of analytes. They are available in We Mix, You Mix, and Predetermined formats. The Luminex Assays allows for the maximum number of analytes in a multiplex and is supplied as a premixed kit. View a table comparing the features and benefits of these bead-based multiplex assays.

More Information About Magnetic Bead-based Multiplex Kits For The Luminex® Platform

Magnetic Luminex High Performance Assays are designed for use with the Luminex MAGPIX CCD Imager. Alternatively, kits can be used with the Luminex 100/200™ or FLEXMAP 3D, dual laser, flow-based sorting and detection platforms.

Analyte-specific antibodies are pre-coated onto color-coded microparticles. Microparticles, standards, and samples are pipetted into wells and the immobilized antibodies bind the analytes of interest. After washing away any unbound substances, a biotinylated antibody cocktail specific to the analytes of interest is added to each well. Following a wash to remove any unbound biotinylated antibody, Streptavidin-Phycoerythrin conjugate (Streptavidin-PE), which binds to the biotinylated detection antibodies, is added to each well. A final wash removes unbound Streptavidin-PE and the microparticles are resuspended in buffer and read using the Luminex or Bio-Plex analyzer. One laser is bead-specific and determines which analyte is being detected. A magnet in the analyzer captures and holds the superparaMagnetic microparticles in a monolayer. Two spectrally distinct Light Emitting Diodes (LEDs) illuminate the beads. One LED identifies the analyte that is being detected and the second LED determines the magnitude of the PE-derived signal, which is in direct proportion to the amount of analyte bound. Each well is imaged with a CCD camera. Kits can also be used with Luminex 100/200 or a Bio-Rad Bio-Plex dual laser, flow-based systems.

Scientific Data

Multiplex Immunoassay View Larger

Mouse XL Cytokine Luminex Panel Standard Curves

Multiplex Immunoassay View Larger

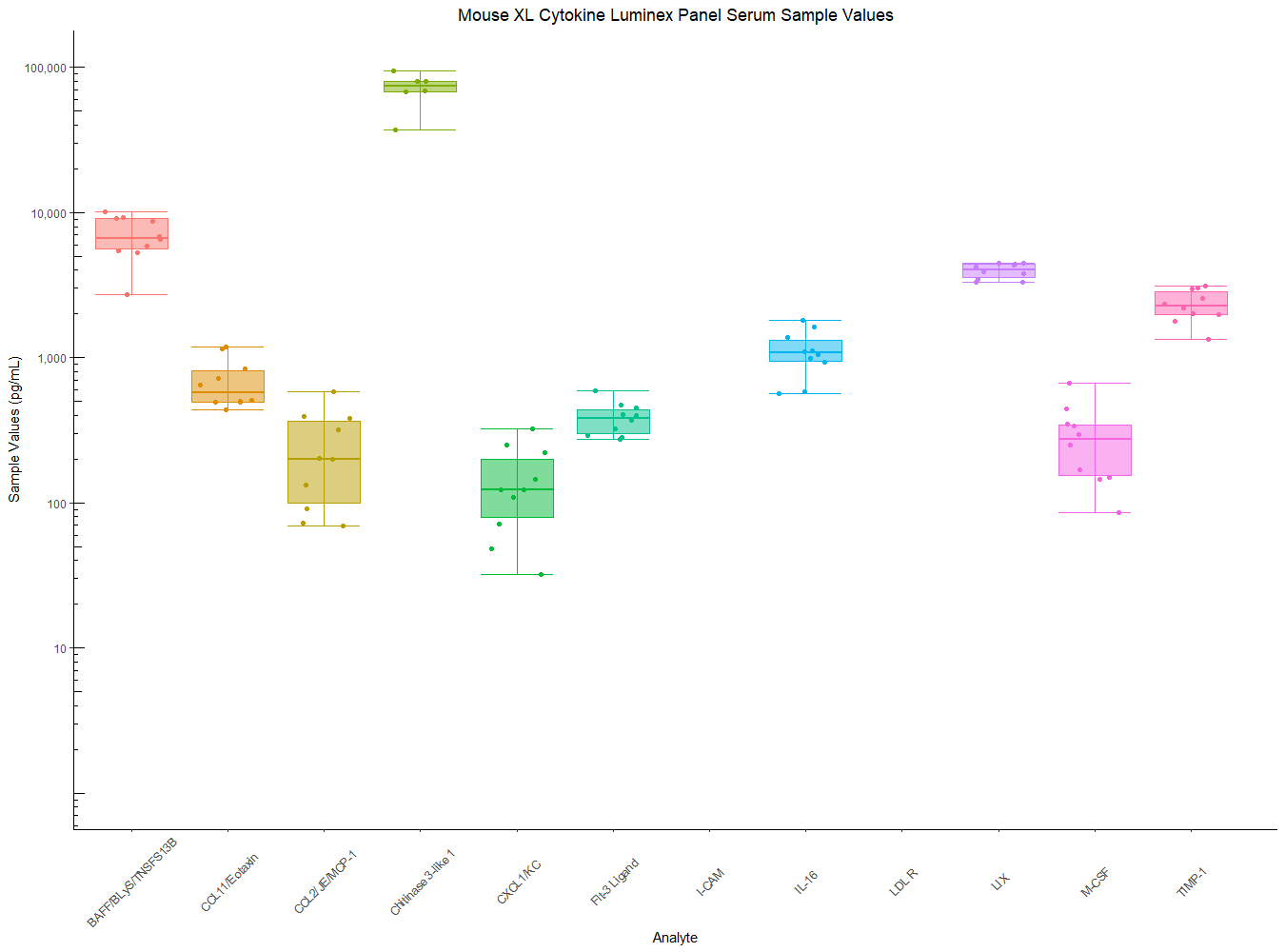

Mouse XL Cytokine Performance Luminex Panel Serum Sample Values

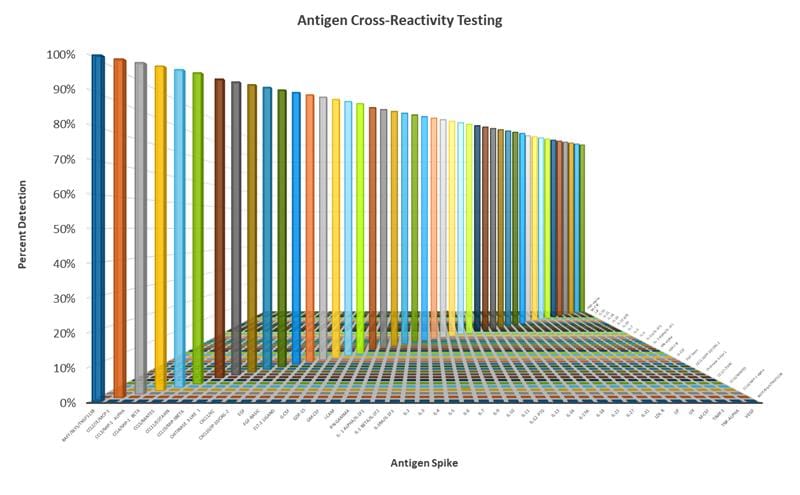

Antigens were spiked in at 3-times the value of the high standard tested for cross-reactivity within the panel.   < 0.5% cross-reactivity was measured across all 45 analytes for all antigens.
