BOP-JF646

Tocris Bioscience | Catalog # 6997

Red fluorescent dual α9β1/α4β1 integrin inhibitor comprising BOP conjugated to Janelia Fluor® 646; fluorogenic; photostable
Tocris Bioscience
Discontinued Product
6997 has been discontinued. View all Fluorescent Integrins Probes products.

Key Product Details

Description

Red fluorescent dual α9β1/α4β1 integrin inhibitor comprising BOP conjugated to Janelia Fluor® 646; fluorogenic; photostable

Wavelength

Excitation = 655 nm, Emission = 672 nm
View all Fluorescent Integrins Probes »

Product Description

BOP-JF646 is a fluorescent dual α9β1/α4β1 integrin inhibitor. Comprises BOP (Cat. No. 6047) conjugated to Janelia Fluor® 646 (Cat. No. 6148). Fluorogenic: fluoresces only once bound to integrins, enabling hassle-free no-wash experiments. Bright and photostable, enabling live cell tracking of integrin receptors over long time-course experiments. Excitation maximum = 655 nm; emission maximum = 672 nm.

Scientific Data Images for BOP-JF646

Application of BOP-JF549

Application of BOP-JF549 in Immortalized Human Keratinocyte Cells.

Immortalized human keratinocytes expressing a GFP-tagged alpha 4 integrin were incubated with 10 μm BOP-Janelia Fluor® 568. Cells were incubated at 37°C and imaged using Nikon A1R confocal microscope. Scale bar = 10 μm.Image kindly provided by Willow Hight-Warburton; Kings College London.

Optical Data

BOP-JF646 Dye Spectra
Emission Color Red
Brightness
λabs 655 nm
λem 672 nm
Closest Laser line 647 nm
Application Flow Cytometry, Confocal Microscopy, Super Resolution Microscopy (SRM)

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Product Specifications for BOP-JF646

Molecular Weight

1090.30

Formula

C57H59N9O10SSi

Storage

Store at -20°C

Purity

≥90% (HPLC)

Chemical Name

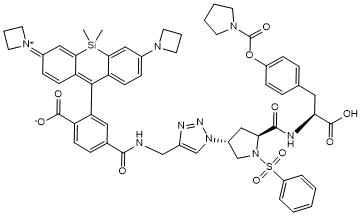

2-(3-(Azetidin-1-ium-1-ylidene)-7-(azetidin-1-yl)-5,5-dimethyl-3,5-dihydrodibenzo[b,e]silin-10-yl)-5-(((1-((3R,5S)-5-(((S)-1-carboxy-2-(4-((pyrrolidine-1-carbonyl)oxy)phenyl)ethyl)carbamoyl)-1-(phenylsulfonyl)pyrrolidin-3-yl)-1H-1,2,3-triazol-4-yl)methyl)carbamoyl)benzoate

InChI Key

NHBQNNGTILNQPL-HXFFEZBUSA-N

SMILES

OC([C@@H](NC([C@@H]1C[C@@H](N2C=C(CNC(C3=CC=C(C([O-])=O)C(C(C4=CC=C(N5CCC5)C=C4[Si]6(C)C)=C(C=C/7)C6=CC7=[N+]8CCC\8)=C3)=O)N=N2)CN1S(=O)(C9=CC=CC=C9)=O)=O)CC%10=CC=C(C=C%10)OC(N%11CCCC%11)=O)=O

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Calculators

Calculate the mass, volume, or concentration required for a solution.

=
x
x
g/mol

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Calculate the dilution required to prepare a stock solution.

x
=
x

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background References

References are publications that support the biological activity of the product.

There are currently no references for this product.

Product Documents for BOP-JF646

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for BOP-JF646

For research use only
