Key Product Details

Species Reactivity

Validated:

Human

Predicted:

Mouse (94%), Rat (93%). Backed by our 100% Guarantee.

Applications

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Flow Cytometry, Flow (Intracellular), CyTOF-ready

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG2b Kappa Clone # 8G10NB

Format

Azide and BSA Free
View all Ferroportin/SLC40A1 Primary Antibodies »

Product Specifications

Immunogen

This Ferroportin/SLC40A1 Antibody (8G10NB) was developed against partial recombinant human Ferroportin protein (between amino acids 150-350) [Uniprot: Q9NP59].

Localization

Membrane, Cytoplasm

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2b Kappa

Theoretical MW

62.5 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for Ferroportin/SLC40A1 Antibody (8G10NB) - Azide and BSA Free

Western Blot: Ferroportin/SLC40A1 Antibody (8G10NB)Azide and BSA Free [NBP2-45357]

Western Blot: Ferroportin/SLC40A1 Antibody (8G10NB)Azide and BSA Free [NBP2-45357]

Western Blot: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide Free [NBP2-45357] - Analysis using Ferroportin/SLC40A1 Antibody (8G10NB) in (A) recombinant human Ferroportin protein at 0.5 ug/ml (Molecular weight: 62.5 KDa) and (B) NCCIT lysate at 2 ug/ml. Image from the standard format of this antibody.
Immunohistochemistry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide and BSA Free [NBP2-45357]

Immunohistochemistry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide and BSA Free [NBP2-45357]

Immunohistochemistry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide Free [NBP2-45357] - Analysis of a FFPE human spleen section using mouse monoclonal Ferroportin/SLC40A1 Antibody (8G10NB) at 5 ug/ml concentration with HRP-DAB detection followed by hematoxylin counterstaining. The antibody generated membrane cytoplasmic staining in several c

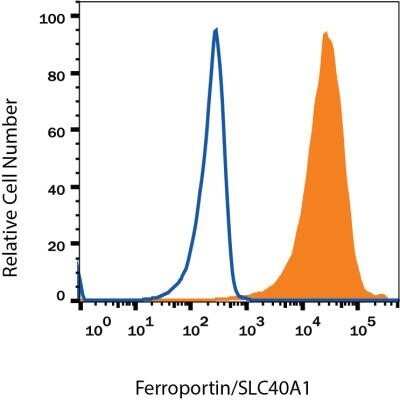

Flow Cytometry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide and BSA Free [NBP2-45357]

Flow Cytometry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide and BSA Free [NBP2-45357]

Flow Cytometry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide Free [NBP2-45357] - Detection of Ferroportin/SLC40A1 in HEK293 human cell line transfected with human Ferroportin/SLC40A1. HEK293 human embryonic kidney cell line transfected with human Ferroportin/SLC40A1 (filled histogram) or irrelevant transfectants (open histogram) were stained with Mouse Ferroportin/SLC40A1 Antibody (8G10NB) followed by APC-conjugated Anti-mouse IgG Secondary Antibody (R&D Systems Catalog # F0101B). Image from the standard format of this antibody.
Flow Cytometry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide and BSA Free [NBP2-45357]

Flow Cytometry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide and BSA Free [NBP2-45357]

Flow Cytometry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide Free [NBP2-45357] - An intracellular stain was performed on HepG cells with NBP2-45356F (blue) and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeabilized with 0.1% saponin. Cells were incubated in an antibody dilution of 5 ug/mL for 30 minutes at room temperature. Both antibodies were directly conjugated to FITC..
Flow Cytometry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide and BSA Free [NBP2-45357]

Flow Cytometry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide and BSA Free [NBP2-45357]

Flow Cytometry: Ferroportin/SLC40A1 Antibody (8G10NB) - Azide Free [NBP2-45357] - An intracellular stain was performed on HepG2 cells with NBP2-45356AF488 (blue) and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeablized with 0.1% saponin. Cells were incubated in an antibody dilution of 10 ug/mL for 30 minutes at room temperature. Both antibodies were directly conjugated to Alexa Fluor 488.

Applications for Ferroportin/SLC40A1 Antibody (8G10NB) - Azide and BSA Free

Application
Recommended Usage

Immunohistochemistry

5 ug/ml

Immunohistochemistry-Paraffin

5 ug/ml

Western Blot

2-4 ug/ml

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

Azide and BSA Free

Preservative

No Preservative

Concentration

1.0 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at -20C. Avoid freeze-thaw cycles.

Background: Ferroportin/SLC40A1

Ferroportin is a 12-transmembrane domain protein, belonging to the major facilitator superfamily of transporters of small molecules, that is localized to the plasma membrane. Human Ferroportin has a theoretical molecular weight of 62.5 kDa. Ferroportin (FPN1 or SLC40A1) functions as an iron-regulated transporter (highly expressed in placenta, intestine, muscle, spleen, macrophages etc.) and is the receptor for the iron-regulatory hormone, hepcidin. In iron metabolism, FPN1 plays a key role in intestinal iron absorption as well as cellular iron release and mediates iron absorption in the presence of ferroxidases, hephaestin (HP) and/or ceruloplasmin (CP). FPN1 is implicated in iron export from duodenal epithelial cells and in the transfer of iron between maternal and fetal circulation. FPN1 transports iron in the ferrous form whereas plasma transferrin only binds iron's ferric form. Ferroxidases are key players in oxidizing iron transported by FPN1 and without the activity of ferroxidases, FPN1 is internalized followed by degradation. While other cell types utilize the circulating or GPI-linked multicopper ferroxidase CP for FPN1, intestinal cells utilize a membrane-bound HP, a paralog of CP that also show interaction with FPN1 (1).

FPN1 regulation is dependent on the cell type and involves transcriptional, posttranscriptional, and posttranslational mechanisms including hepcidin-mediated endocytosis and proteolysis. Hepcidin controls the concentration of FPN1 in the membrane, with hepcidin deficiency resulting in iron overload (high iron) and hepcidin excess leading to iron restriction and anemia (2). Ferroportin disease or hemochromatosis type 4 (HFE4) is associated with distinct FPN1 variants with either reduced FPN1 cell surface expression/iron export capacity or hepcidin resistance and iron overload (3, 4).

References

1. De Domenico I, Ward DM, Kaplan J. (2011) Hepcidin and ferroportin: the new players in iron metabolism. Semin Liver Dis. 31(3):272-9. PMID: 21901657

2. Drakesmith H, Nemeth E, Ganz T. (2015) Ironing out Ferroportin. Cell Metab. 22(5):777-87. PMID: 26437604

3. Pietrangelo A. (2017) Ferroportin disease: pathogenesis, diagnosis and treatment. Haematologica. 102(12):1972-1984. PMID: 29101207

4. Vlasveld LT, Janssen R, Bardou-Jacquet E, Venselaar H, Hamdi-Roze H, Drakesmith H, Swinkels DW. (2019) Twenty Years of Ferroportin Disease: A Review or An Update of Published Clinical, Biochemical, Molecular, and Functional Features. Pharmaceuticals (Basel). 12(3). pii: E132. PMID: 31505869

Long Name

Solute Carrier Family 40 Member 1

Alternate Names

FPN1, HFE4, IREG1, MST079, MTP1, SLC11A3, SLC40A1

Gene Symbol

SLC40A1
