Catalog Number: 5622

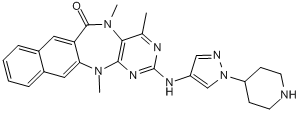

Chemical Name: 5,13-Dihydro-4,5,13-trimethyl-2-[[1-(4-piperidinyl)-1H-pyrazol-4-yl]amino]-6H-naphtho[2,3-e]pyrimido[5,4-b][1,4]diazepin-6-one
Biological Activity
Potent and selective NUAK1 inhibitor (IC50 = 100 nM). Exhibits no significant inhibition against a panel of 139 kinases, including ten AMPK family members. Inhibits NUAK1-mediated MYPT1 phosphorylation. Also inhibits cell proliferation in U2OS cells in vitro, to a similar extent as NUAK1 knockdown models.
Technical Data
  • M.Wt:
  • Formula:
  • Solubility:
    Soluble to 100 mM in DMSO and to 100 mM in ethanol
  • Purity:
  • Storage:
    Store at -20°C
  • CAS No:
The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis. All Tocris products are intended for laboratory research use only.
Additional Information
Licensing Caveats:
Sold under license from Dana-Farber Cancer Institute
Background References
  1. Characterization of WZ4003 and HTH-01-015 as selective inhibitors of the LKB1-tumour-suppressor-activated NUAK kinases.
    Banerjee et al.
    Biochem.J., 2014;457:215
Tocris Bioscience is the leading supplier of novel and exclusive tools for life science research with over 30 years' experience in the industry. Tocris is a Bio-Techne brand.

Order Details


Contact Information

Molarity Calculator
Calculate the mass, volume or concentration required for a solution

The molarity calculator is based on the following equation:

Mass (g) = Concentration (mol/L) x Volume (L) x Molecular Weight (g/mol)
An example of a molarity calculation using the molarity calculator:
What is the mass of compound required to make a 10 mM stock solution in 10 ml of water given that the molecular weight of the compound is 197.13 g/mol?
