Human Growth Factor Luminex® Performance Assay 21-plex Fixed Panel

Catalog # Availability Size / Price Qty

U.S. orders usually ship in 1-2 business days

Human Growth Factor Luminex Panel Standard Curves
2 Images
Product Details
Supplemental Products

Human Growth Factor Luminex® Performance Assay 21-plex Fixed Panel Summary

Assay Type bead-based multiplex assay for the Luminex® platform
Format 1 x 96-well microplate and antibody-coated beads
Analytes Detected Please see analyte list in assay customization tool below.
Performance Validation Luminex Assays are validated for use with cell culture supernatants, plasma and serum. All Luminex assays are tested for sensitivity, intra-assay precision, inter-assay precision and to ensure assay linearity for validated sample types. Antibody pairs are selected and tested to confirm the parallel detection of natural and recombinant standard protein and to ensure the accurate determination of target analytes within biological samples. Assays for each target analyte are screened against all target analytes to confirm low antibody cross-reactivity.

Not finding your analyte of interest? View our complete Luminex offering in the full version of our Luminex Assay Customization Tool. We also offer Custom Luminex Services.

Product Features

Luminex Assays are the most flexible bead-based multiplex assays that we offer. They allow up to 50 user-defined target analytes to be simultaneously profiled using cell culture supernates, serum, or plasma samples.

  • Simultaneously profile up to 50 analytes of your choice in one sample
  • Choose from a wide menu of analytes, including many unique analytes
  • Requires a small sample volume (<50 µL)
  • Run your assay in just 3-4 hours
  • Mass-calibrated standards for consistent results with every new lot of material
  • Enough reagents for one 96-well plate

Please allow additional time for international orders.

Kit Components
  • Standard Cocktail(s)
  • Bead Diluent
  • Biotin Antibody Diluent
  • Standard/Sample Diluent
  • Wash Buffer
  • Streptavidin-PE
  • Foil Plate Sealers (4)
  • Mixing Bottle
  • Certificate of Analysis**

**A standard curve must be generated each time an assay is run, utilizing values from the Certificate of Analysis provided with each Luminex Assay.


Intra-Assay Precision - is generated from the mean of the %CV's from 40 reportable results across two different concentrations of analytes in a single serum assay

Inter-Assay Precision - is generated from the mean of the %CV's across two different concentrations of analytes across 30 different serum assays.

  n=40 (20x2 levels) n=30
Analyte Intra-Assay (%CV) Inter-Assay (%CV)
CD40 Ligand 3.8 10.8
EGF 4.1 8.0
FGF-basic 2.0 7.6
Flt-3 Ligand 2.4 8.4
G-CSF 1.8 7.0
Granzyme B 2.9 8.2
GRO beta 1.9 6.8
IFN-beta 2.4 7.1
IL-3 3.6 9.9
IL-8 3.2 8.4
IL-9 6.2 10.3
IL-17E 3.1 8.1
IL-33 2.9 9.7
MIP-1 alpha 2.9 5.7
MIP-3 beta 2.5 8.6
PDGF-AA 2.7 7.1
PDGF-AB/BB 2.2 7.4
PD-L1/B7-H1 2.7 8.3
TGF-alpha 4.4 9.2
TRAIL 2.4 7.9
VEGF 2.9 10.1


Linearity - The data represents mean spiked or natural linearity in serum matrix samples. Samples with natural linearity are marked with an asterisk.

Spike Recovery - The data represents mean percent recovery of spiked standards ranging from low, medium, and high concentration in serum matrix samples.

  Linearity Spiked
Analyte N Average % N Average %
CD40 Ligand 4 131 4 75
EGF* 4 150 HE
FGF basic 4 128 4 87
Flt-3 Ligand 4 119 4 78
G-CSF 4 208 4 34
Granzyme B 4 107 4 96
GRO beta* 4 88 HE
IFN-beta 4 137 4 63
IL-3 4 123 4 78
IL-8 4 118 4 78
IL-17E 4 150 4 55
IL-33 4 103 4 87
MIP-1 alpha 4 95 4 111
MIP-3 beta 4 123 4 76
PDGF-AA* 4 91 HE
PDGF-AB/BB* 4 108 HE
PD-L1/B7-H1 4 106 4 96
TGF-alpha 4 142 4 80
TRAIL 4 144 4 69
VEGF* 4 129 HE
*Natural Linearity
HE = Spiked recovery was not observed due to natural linewarity in high endogenous samples.
Which Luminex Assay is right for me?

Assays for the Luminex platform are offered as High Performance Assays or Assays. The Luminex High Performance Assays are fully validated panels with a focused selection of analytes. They are available in We Mix, You Mix, and Predetermined formats. The Luminex Assays allows for the maximum number of analytes in a multiplex and is supplied as a premixed kit. View a table comparing the features and benefits of these bead-based multiplex assays.

Scientific Data

Human Growth Factor Luminex Panel Standard Curves

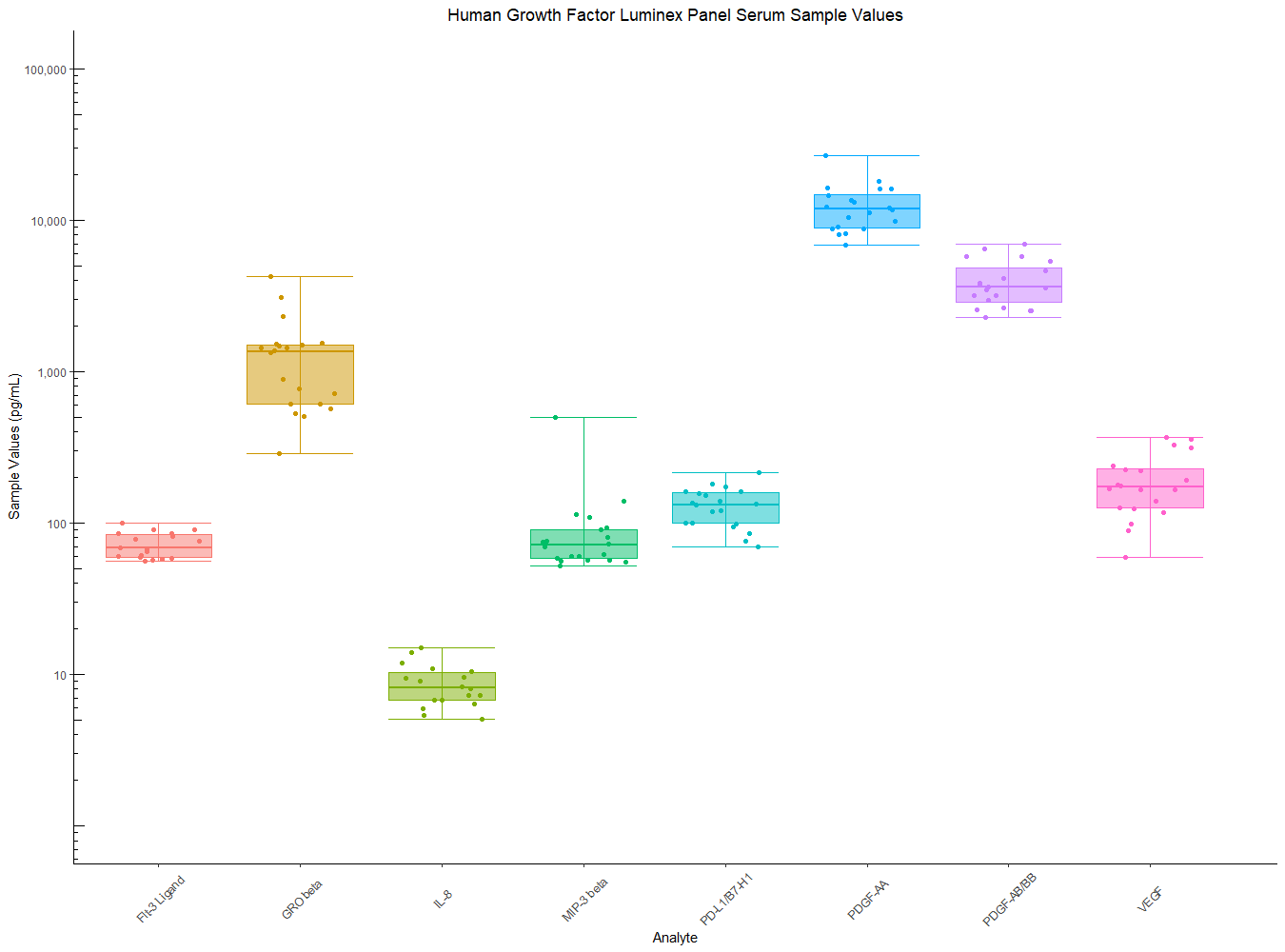

Human Growth Factor Performance Luminex Panel Serum Sample Values

Product Datasheets

You must select a language.

Product Specific Notices
Luminex® is a registered trademark of Luminex Corporation.
