Human ICAM‑4 PE‑conjugated Antibody

R&D Systems | Catalog # FAB7179P

Product Discontinued
R&D Systems
Discontinued Product
FAB7179P has been discontinued. An alternative/replacement product is available: FAB8397G. View all ICAM-4 products.

Key Product Details

Species Reactivity

Human

Applications

Flow Cytometry

Label

Phycoerythrin (Excitation = 488 nm, Emission = 565-605 nm)

Antibody Source

Polyclonal Sheep IgG
Loading...

Product Specifications

Immunogen

Chinese hamster ovary cell line CHO-derived recombinant human ICAM-4
Ala31-Ala240
Accession # Q14773

Specificity

Detects human ICAM-4 in direct ELISAs and Western blots.

Clonality

Polyclonal

Host

Sheep

Isotype

IgG

Scientific Data Images for Human ICAM‑4 PE‑conjugated Antibody

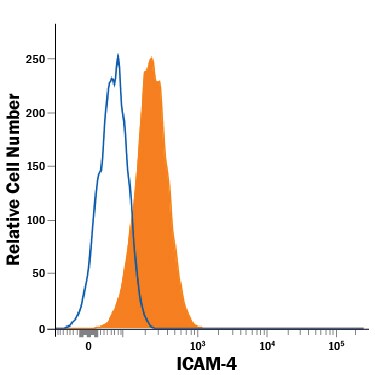

Detection of ICAM-4 antibody in Human Red Blood Cells antibody by Flow Cytometry.

Detection of ICAM‑4 in Human Red Blood Cells by Flow Cytometry.

Human red blood cells were stained with Sheep Anti-Human ICAM-4 PE-conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # FAB7179P, filled histogram) or isotype control antibody (Catalog # IC016P, open histogram). View our protocol for Staining Membrane-associated Proteins.

Applications for Human ICAM‑4 PE‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: Human red blood cells

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: ICAM-4

ICAM-4 (Intercellular Adhesion Molecule 4), also known as Landsteiner-Wiener glycoprotein and CD242, is a 42 kDa member of the ICAM family, Ig superfamily of proteins. It is expressed on erythrocytes and erythroblasts, and serves as a receptor for LFA-1, Mac-1, and CD11c/CD18, plus alpha 4 beta 1 and alpha-V containing integrins. ICAM-4 is suggested to bind to Mac-1 on macrophages, allowing for its phagocytosis in senescence. Mature human ICAM-4 is a 249 amino acid (aa) type I transmembrane glycoprotein. It possesses a 218 aa extracellular region (aa 23-240) that contains two C2-type Ig-like domains (aa 62-124 and 146-217), and a 10 aa C-terminal cytoplasmic tail. ICAM-4 may form 85 kDa homodimers. There are three potential isoform variants. One shows a five aa substitution for aa 233-271, a second contains a 15 aa substitution for aa 14-29, and a third possesses a 141 aa substitution for aa 132-271. Over aa 31-240, human ICAM-4 shares 71% aa sequence identity with mouse ICAM-4.

Long Name

Intercellular Adhesion Molecule 4

Alternate Names

CD242, ICAM4

Entrez Gene IDs

3386 (Human); 78369 (Mouse)

Gene Symbol

ICAM4

UniProt
