Human PAG1 Antibody


  • Species Reactivity
    Human
  • Specificity
    Detects human PAG1 in direct ELISAs and Western blots.
  • Source
    Monoclonal Mouse IgG1 Clone # 504004
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    E. coli-derived human PAG1
    Ser38-Leu432
    Accession # Q9NWQ8
  • Formulation
    Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
  • Label
    Unconjugated
Applications
  •
    Recommended
    Concentration
    Sample
  • Western Blot
    1 µg/mL
    See below
  • Simple Western
    10 µg/mL
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples
Detection of Human PAG1 by Western Blot. Western blot shows lysates of Daudi human Burkitt's lymphoma cell line and Raji human Burkitt's lymphoma cell line. PVDF Membrane was probed with 1 µg/mL of Human PAG1 Polyclonal Antibody (Catalog # MAB5285) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF007). Specific bands were detected for PAG1 at approximately 70-85 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

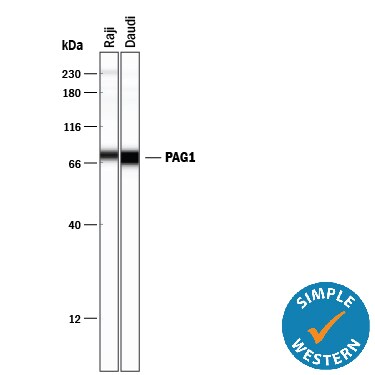

Detection of Human PAG1 by Simple WesternTM. Simple Western lane view shows lysates of Raji human Burkitt's lymphoma cell line and Daudi human Burkitt's lymphoma cell line, loaded at 0.2 mg/mL. A specific band was detected for PAG1 at approximately 76 kDa (as indicated) using 10 µg/mL of Mouse Anti-Human PAG1 Monoclonal Antibody (Catalog # MAB5285). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.

Preparation and Storage
  • Reconstitution
    Reconstitute at 0.5 mg/mL in sterile PBS.
  • Shipping
    The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
  • Stability & Storage
    Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
    • 12 months from date of receipt, -20 to -70 °C as supplied.
    • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
    • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: PAG1

PAG1 (Phosphoprotein-associated with glycosphingolipid enriched microdomains 1; also Cbp/Csk-binding protein) is a 47 kDa protein that runs anomalously at 70‑85 kDa in SDS PAGE. PAG1 is a constitutively phosphorylated and palmitoylated protein that occurs in leukocyte lipid rafts. It negatively regulates Src family kinases by linking Csk to FynT. Human PAG1 is 432 amino acids (aa) in length. It is a type III (no signal sequence) transmembrane protein that contains a 16 aa extracellular region (aa 1-16) and a 395 aa cytoplasmic domain (aa 38-432). PAG1 is palmitoylated at Cys37 and phosphorylated at Tyr317 where it interacts with Csk. There is an FynT binding site at aa 131-137. One splice variant shows a 36 aa substitution for aa 293-432.

  • Long Name:
    Phosphoprotein Associated with Glycosphingolipid Microdomains 1
  • Entrez Gene IDs:
    55824 (Human); 94212 (Mouse)
  • Alternate Names:
    CBP; CBPMGC138364; Csk-binding protein; PAG1; PAGFLJ37858; phosphoprotein associated with glycosphingolipid microdomains 1; phosphoprotein associated with glycosphingolipid-enriched microdomains 1; Transmembrane adapter protein PAG; Transmembrane phosphoprotein Cbp
