Janelia Fluor® 549, BromoCatch™ Ligand

Tocris Bioscience | Catalog # 8942

Fluorogenic Janelia Fluor® 549 conjugated covalent ligand for BromoCatch™, enabling no-wash live-cell imaging
Tocris Bioscience

Key Product Details

Description

Fluorogenic Janelia Fluor® 549 conjugated covalent ligand for BromoCatch™, enabling no-wash live-cell imaging

Wavelength

Excitation = 556 nm, Emission = 577 nm
View all BromoCatch Platform »

Product Description

Janelia Fluor® 549, BromoCatch™ Ligand is a fluorogenic BromoCatch™ ligand functionalized with Janelia Fluor® 549, designed for real-time, no-wash imaging of BromoCatch-tagged proteins in live cells. Upon covalent binding to the BromoCatch™ tag, this probe undergoes a fluorescence switch-on due to the environmental sensitivity of the Janelia Fluor® 549 dye, delivering bright signal with minimal background fluorescence. Compatible with super-resolution imaging and suitable for dynamic cellular studies, Janelia Fluor® 549, BromoCatch™ Ligand offers a powerful tool for live-cell tracking of BromoCatch-tagged proteins with excellent photostability and imaging contrast.

Please refer to this protocol for further information on how to use this product.

Janelia Fluor® is a registered trademark of Howard Hughes Medical Institute.

This product is part of an early adopter program.

BromoCatch™ is a trademark of Bio-Techne Corp.

Licensing Information

Sold under license from the Howard Hughes Medical Institute, Janelia Research Campus and the University of Dundee

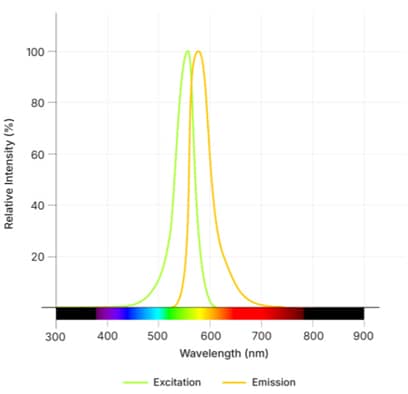

Optical Data

λabs 556 nm
λem 577 nm

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Product Specifications for Janelia Fluor® 549, BromoCatch™ Ligand

Molecular Weight

1074.27

Formula

C59H63N9O9S

Storage

Store at -20°C

Purity

≥90% (HPLC)

Chemical Name

4-(((R)-14-((S)-4-(4-Acrylamidophenyl)-2,3,9-trimethyl-6H-thieno[3,2-f][1,2,4]triazolo[4,3-a][1,4]diazepin-6-yl)-13-oxo-3,6,9-trioxa-12-azahexadecyl)carbamoyl)-2-(3-(azetidin-1-ium-1-ylidene)-6-(azetidin-1-yl)-3H-xanthen-9-yl)benzoate

InChI Key

KPBISVQUOTWWDN-GFPQFKIWSA-N

SMILES

CC1=C(C)SC2=C1C(C3=CC=C(C=C3)NC(C=C)=O)=N[C@@H]([C@H](C(NCCOCCOCCOCCNC(C4=CC=C(C(C5=C6C(OC7=CC(N8CCC8)=CC=C57)=C/C(C=C6)=[N+]9CCC/9)=C4)C([O-])=O)=O)=O)CC)C%10=NN=C(C)N2%10

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Solubility

Solvent Max Conc. mg/mL Max Conc. mM
Solubility
DMSO 10.74 10

Preparing Stock Solutions for Janelia Fluor® 549, BromoCatch™ Ligand

The following data is based on the product molecular weight 1074.27.

Batch specific molecular weights may vary from batch to batch due to the degree of hydration, which all affect the solvent volumes required to prepare stock solutions.

Select a batch to recalculate based on the batch molecular weight:

Concentration / Solvent Volume / Mass 1 mg 5 mg 10 mg
0.1 mM 9.31 mL 46.54 mL 93.09 mL
0.5 mM 1.86 mL 9.31 mL 18.62 mL
1 mM 0.93 mL 4.65 mL 9.31 mL
5 mM 0.19 mL 0.93 mL 1.86 mL

Calculators

Calculate the mass, volume, or concentration required for a solution.

=
x
x
g/mol

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Calculate the dilution required to prepare a stock solution.

x
=
x

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background References

References are publications that support the biological activity of the product.

Product Documents for Janelia Fluor® 549, BromoCatch™ Ligand

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for Janelia Fluor® 549, BromoCatch™ Ligand

For research use only
