KLRG1 (Killer cell Lectin‑like Receptor G1), also called MAFA (Mast cell Function Associated), is an inhibitory type II transmembrane glycoprotein of the C‑type lectin family, designated CLEC15A (1). Mature mouse KLRG1 consists of a 33 amino acid (aa) cytoplasmic domain with one Immunoreceptor Tyrosine‑based Inhibitory Motif (ITIM), a 23 aa transmembrane segment, and a 132 aa extracellular domain (ECD) with one C‑type lectin domain (CTLD) (2). Within the ECD, mouse KLRG1 shares 57% and 80% aa sequence identity with human and rat KLRG1, respectively. Alternate splicing generates additional isoforms of mouse KLRG1 that lack either the CTLD or the CTLD, transmembrane segment, and a portion of the cytoplasmic domain (3). KLRG1 is expressed as a 30 ‑ 40 kDa N‑glycosylated molecule that forms disulfide‑linked homodimers, trimers, and tetramers (4, 5). It is expressed on subpopulations of CD8+, CD4+, regulatory, and gamma/delta T cells as well as on NK cells (2, 4, 6 ‑ 8). KLRG1 is expressed on T cells found in cord blood, but it is down‑regulated postnatally and is subsequently re‑expressed on antigen‑exposed T cells (7, 9). It is expressed by a greater proportion of CD8+ T cells in the elderly and by virus‑specific CD8+ T cells during chronic virus infection (10 ‑ 12). KLRG1 binds to E-, N-, and R-Cadherins, triggering ITIM‑dependent KLRG1 signaling and inhibition of T cell activation (5, 13, 14). The response is bi‑directional, as KLRG1 binding to E‑Cadherin on dendritic cells (DC) can induce an anti‑inflammatory DC phenotype (increased IL‑10 production and decreased IL‑6 and TNF‑ alpha production) (15).
Key Product Details
Species Reactivity
Applications
Label
Antibody Source
Product Specifications
Immunogen
Accession # O88713
Specificity
Clonality
Host
Isotype
Scientific Data Images for KLRG1 Antibody (2F1) [PE]

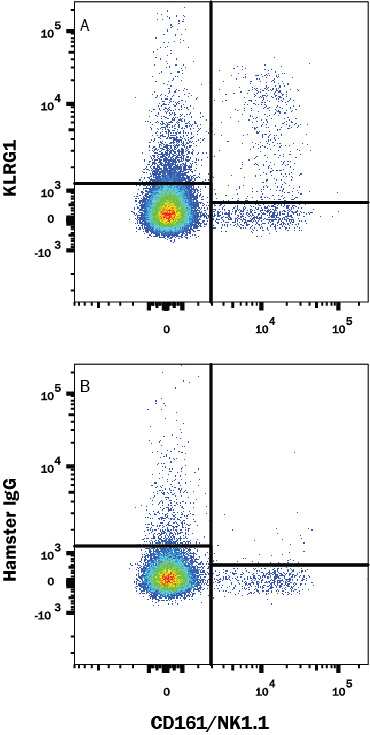

Detection of KLRG1 in Mouse Splenocytes by Flow Cytometry.
C57BL/6 mouse splenocytes were stained with Mouse Anti-Mouse CD161/NK1.1 APC-conjugated Monoclonal Antibody (Catalog # FAB8319A) and either (A) Hamster Anti-Mouse KLRG1 PE-conjugated Monoclonal Antibody (Catalog # FAB69441P) or (B) Hamster IgG Phycoerythrin Isotype Control. View our protocol for Staining Membrane-associated Proteins.Detection of KLRG1 in Mouse Splenocytes by Flow Cytometry.
C57BL/6 mouse splenocytes were stained with Mouse Anti-Mouse CD161/NK1.1 APC-conjugated Monoclonal Antibody (Catalog # FAB8319A) and either (A) Hamster Anti-Mouse KLRG1 PE-conjugated Monoclonal Antibody (Catalog # FAB69441P) or (B) Hamster IgG Phycoerythrin Isotype Control. View our protocol for Staining Membrane-associated Proteins.Applications for KLRG1 Antibody (2F1) [PE]
Flow Cytometry
Sample: See below
Spectra Viewer
Plan Your Experiments
Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.
Spectra ViewerFlow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Formulation
Preservative
Concentration
Shipping
Stability & Storage
Background: KLRG1
References
- Henson, S.M. and A.N. Akbar (2009) Age 31:285.
- Hanke, T. et al. (1998) Eur. J. Immunol. 28:4409.
- Voehringer, D. et al. (2001) Immunogenetics 52:206.
- Corral, L. et al. (2000) Eur. J. Immunol. 30:920.
- Rosshart, S. et al. (2008) Eur. J. Immunol. 38:3354.
- Voehringer, D. et al. (2002) Blood 100:3698.
- Beyersdorf, N. et al. (2007) Eur. J. Immunol. 37:3445.
- Eberl, M. et al. (2005) J. Leukoc. Biol. 77:67.
- Marcolino, I. et al. (2004) Eur. J. Immunol. 34:2672.
- Ouyang, Q. et al. (2003) Exp. Gerontol. 38:911.
- Thimme, R. et al. (2005) J. Virol. 79:12112.
- Cush, S.S. and E. Flano (2011) J. Immunol. 186:4051.
- Ito, M. et al. (2006) J. Exp. Med. 203:289.
- Tessmer, M.S. et al. (2007) Int. Immunol. 19:391.
- Banh, C. et al. (2009) Blood 114:5299.
Long Name
Alternate Names
UniProt
Additional KLRG1 Products
Product Documents for KLRG1 Antibody (2F1) [PE]
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Product Specific Notices for KLRG1 Antibody (2F1) [PE]
This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
