Mouse ICAM‑1/CD54 APC‑conjugated Antibody

Name: Mouse ICAM‑1/CD54 APC‑conjugated Antibody
Brand: R&D Systems
SKU: FAB796A

R&D Systems | Catalog # FAB796A

Submit a review

Product Documents

Discontinued Product

FAB796A has been discontinued. View all ICAM-1/CD54 products.

Product Specifications
Scientific Data
Applications
Spectra Viewer
Flow Cytometry
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Species Reactivity

Mouse

Applications

Flow Cytometry

Label

Allophycocyanin (Excitation = 620-650 nm, Emission = 660-670 nm)

Antibody Source

Monoclonal Rat IgG_2B Clone # 166623

View all ICAM-1/CD54 Primary Antibodies »

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse ICAM-1
Gln28-Asn485
Accession # P13597

Specificity

Detects mouse ICAM-1 in ELISAs and Western blots. In Western blots, this antibody shows weak cross-reactivity with recombinant human (rh) ICAM‑1 and recombinant mouse (rm) ICAM-2 and no cross-reactivity with rhCD31, rmDCC, rhICAM-2, rhICAM-3, recombinant rat (rr) ICAM-1, rmMAdCAM-1, or rmVCAM-1.

Clonality

Monoclonal

Host

Rat

Isotype

IgG_2B

Scientific Data Images for Mouse ICAM‑1/CD54 APC‑conjugated Antibody

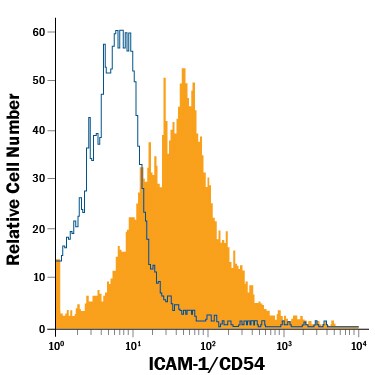

Detection of ICAM‑1/CD54 in Mouse Splenocytes by Flow Cytometry.

Mouse splenocytes were stained with Rat Anti-Mouse ICAM-1/CD54 APC-conjugated Monoclonal Antibody (Catalog # FAB796A, filled histogram) or isotype control antibody (Catalog # IC013A, open histogram). View our protocol for Staining Membrane-associated Proteins.

Applications for Mouse ICAM‑1/CD54 APC‑conjugated Antibody

Application

Recommended Usage

Flow Cytometry

10 µL/10⁶ cells
Sample: Mouse splenocytes

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
Spillover Popups - Visualize the spectra of individual fluorochromes
Antigen Density Selector - Match fluorochrome brightness with antigen density

Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8° C. Do not use past expiration date. Protect from light.

Background: ICAM-1/CD54

ICAM-1 (InterCellular Adhesion Molecule-1), also known as CD54, is an 85-93 kDa member of the Immunoglobulin supergene family of molecules. Mouse ICAM-1 is a 510 amino acid (aa) type I transmembrane glycoprotein that contains five C2-type Ig-like domains in a 458 aa extracellular domain (ECD) (aa 28-485). It is expressed constitutively by, or inducibly on, a very wide variety of cells, including neurons, dendritic cells, fibroblasts, skeletal muscle myocytes, keratinocytes, eosinophils, neutrophils, hepatocytes, monocytes and vascular endothelial cells. On the cell surface, it exists primarily as an "intermediate" between a homodimeric and monomeric state. The homodimeric pairing does not seem to offer a distinct advantage with respect to ligand binding. On the other hand, the degree of glycosylation has a marked impact on ICAM-1 ligand binding, with under-glycosylation associated with low affinity ligand binding. Ligands for ICAM-1 include LFA-1 ( alpha L beta 2), Mac-1 ( alpha M beta 2), CD11c/CD18, fibrinogen, hyaluronan and select rhinoviruses. Notably, ICAM-1 is recognized to be a potential coreceptor for HGF, acting in concert with c-Met during ligand binding. ICAM-1 is best known for its role in white cell trafficking (leukocyte binding to endothelium), and is also reported to play a key role in the establishment of CD8⁺ T cell memory, serving as a link between mature dendritic cells and naïve CD8⁺ T cells. Over its ECD, mouse ICAM-1 shares 78% and 54% aa sequence identity with rat and human ICAM-1 ECD, respectively. There is one isoform variant for mouse ICAM-1 listed in SwissProt that shows a 28 aa substitution for aa 1-34.
