The IL-22 receptor, also known as IL-22 R alpha 1 and CRF2-9, is an approximately 65 kDa type I transmembrane glycoprotein that belongs to the type II cytokine receptor family (CRF). IL-22 R alpha 1 contains a 211 amino acid (aa) extracellular domain (ECD) with two fibronectin type III repeats, and a 330 aa cytoplasmic domain (1). Within the ECD, mouse IL-22 R alpha 1 shares 78%, 78%, and 94% aa sequence identity with canine, human, and rat IL-22 R alpha 1, respectively. It shares 20%‑26% aa sequence identity with the ECDs of other class II receptors IL-10 R, IL-20 R, and IL-28 R. IL-22 R alpha 1 associates with either IL-10 R beta or IL-20 R beta to form receptor complexes with distinct ligand selectivities. IL-10 R beta is a shared subunit of the IL-10, -22, -26, -28, and -29 receptors, while IL-20 R beta is a shared subunit of the IL-19, -20, -22, and -24 receptors (2). IL-22 R alpha 1/IL-10 R beta is an IL-22 responsive receptor (3, 4), and IL-22 R alpha 1/IL-20 R beta is an IL-20 or IL-24 responsive receptor (5, 6). In both cases, IL‑22 R alpha 1 functions as the high affinity ligand binding subunit, and subsequent association with IL-10 R beta or IL-20 R beta serves to stabilize the complex (3, 6‑9). IL‑22 R alpha 1 contains cytoplasmic motifs for interactions with signal transduction molecules, but association with IL-10 R beta or IL-20 R beta is required for signal transduction (3, 7). IL-22BP functions as a competitive antagonist by binding IL-22 and preventing its association with IL-22 R alpha 1 (8, 10). Even though it is a receptor for interleukins, IL‑22 R alpha 1 is not expressed on hematopoietic cells (7, 11, 12). Instead, IL-22 R alpha 1 expression is restricted to epithelial and stromal cells (7, 11‑14). IL‑22 R alpha 1 signaling promotes innate immune responses and wound healing at sites of infection and inflammation. This includes upregulation of antimicrobial, acute phase, proinflammatory, and extracellular matrix proteins as well as proteases (4, 12, 14, 15). IL‑22 R alpha 1 signaling also promotes downregulation of proteins involved in keratinocyte differentiation (4, 15).
Mouse IL‑22 R alpha 1 Antibody
R&D Systems | Catalog # MAB42941
Discontinued Product
MAB42941 has been discontinued.
View all IL-22 R alpha 1 products.
Key Product Details
Species Reactivity
Validated:
Mouse
Cited:
Human, Mouse
Applications
Validated:
Flow Cytometry, CyTOF-ready
Cited:
Immunohistochemistry, Immunohistochemistry-Frozen, Flow Cytometry, Immunocytochemistry
Label
Unconjugated
Antibody Source
Monoclonal Rat IgG2A Clone # 496514
Loading...
Product Specifications
Immunogen
Mouse myeloma cell line NS0-derived recombinant mouse IL-22 R alpha 1
Thr18-Ala228
Accession # Q80XZ4
Thr18-Ala228
Accession # Q80XZ4
Specificity
Detects mouse IL-22 R alpha 1 in direct ELISAs. In direct ELISAs, 25% cross-reactivity with recombinant human (rh) IL‑22 R alpha 1 is observed and no cross-reactivity with rhIL-20 R alpha, recombinant mouse (rm) IL-20 R alpha, rhIL-22BP, or rmIL-22BP is observed.
Clonality
Monoclonal
Host
Rat
Isotype
IgG2A
Scientific Data Images for Mouse IL‑22 R alpha 1 Antibody

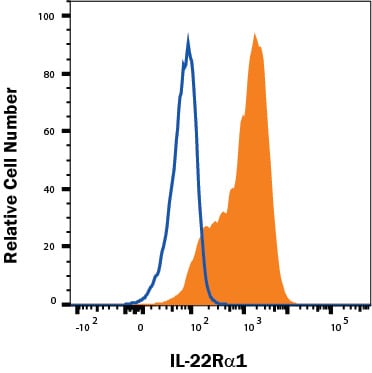

Detection of IL‑22 R alpha 1 in Hepa 1‑6 Mouse Cell Line by Flow Cytometry.
Hepa 1‑6 mouse hepatoma cell line was stained with Rat Anti-Mouse IL‑22 Ra1 Monoclonal Antibody (Catalog # MAB42941, filled histogram) or isotype control antibody (Catalog # MAB006, open histogram), followed by Allophycocyanin-conjugated Anti-Rat IgG F(ab')2Secondary Antibody (Catalog # F0113).Detection of IL‑22 R alpha 1 in C2C12 cells by Flow Cytometry.
C2C12 cells were stained with Rat Anti-Mouse IL‑22 R alpha 1 Monoclonal Antibody (Catalog # MAB42941, filled histogram) or isotype control antibody (Catalog # MAB006, open histogram), followed by Phycoerythrin-conjugated Anti-Rat IgG Secondary Antibody (Catalog # F0105B). View our protocol for Staining Membrane-associated Proteins.Applications for Mouse IL‑22 R alpha 1 Antibody
Application
Recommended Usage
CyTOF-ready
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Flow Cytometry
0.25 µg/106 cells
Sample: Hepa 1‑6 mouse hepatoma cell line and C2C12 mouse myoblast cell line
Sample: Hepa 1‑6 mouse hepatoma cell line and C2C12 mouse myoblast cell line
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: IL-22 R alpha 1
References
- Tachiiri, A. et al. (2003) Genes Immun. 4:153.
- Langer, J.A. et al. (2004) Cytokine Growth Factor Rev. 15:33.
- Xie, M-H. et al. (2000) J. Biol. Chem. 275:31335.
- Boniface, K. et al. (2005) J. Immunol. 174:3695.
- Dumoutier, L. et al. (2001) J. Immunol. 167:3545.
- Wang, M. et al. (2002) J. Biol. Chem. 277:7341.
- Kotenko, S.V. et al. (2001) J. Biol. Chem. 276:2725.
- Li, J. et al. (2004) Int. Immunopharmacol. 4:693.
- Logsdon, N.J. et al. (2002) J. Interferon Cytokine Res. 22:1099
- Kotenko, S.V. et al. (2001) J. Immunol. 166:7096.
- Nagalakshmi, M.L. et al. (2004) Int. Immunopharmacol. 4:577.
- Nagalakshmi, M.L. et al. (2004) Int. Immunopharmacol. 4:679.
- Aggarwal, S. et al. (2001) J. Interferon Cytokine Res. 21:1047.
- Wolk, K. et al. (2004) Immunity 21:241.
- Wolk, K. et al. (2006) Eur. J. Immunol. 36:1309.
Long Name
Interleukin 22 Receptor
Alternate Names
CRF2-9, IL-22Ra1, IL-TIF-R1, IL22R alpha 1, IL22RA1
Gene Symbol
IL22RA1
UniProt
