OD1

Tocris Bioscience | Catalog # 5941

Potent hNav1.4, rNav1.6 and rNav1.7 channel activator
Tocris Bioscience

Key Product Details

Description

Potent hNav1.4, rNav1.6 and rNav1.7 channel activator
View all Voltage-gated Sodium Channel Blockers »

Product Description

OD1 is a potent rat Nav1.7, human Nav1.4 and rat Nav1.6 channel activator (EC50 values are 7, 10 and 47 nM, respectively). Exhibits minimal activation at mammalian Nav1.2, Nav1.3 and Nav1.5 (EC50 values >3 μM). Inhibits fast inactivation on all channels. Increases peak currents at all voltages and stimulates a persistent Na+ current at hNav1.7 channel. Increases hyperpolarization at Nav1.4 and Nav1.6 channels. Induces spontaneous pain in vivo.

Product Specifications for OD1

Molecular Weight

7206.10

Formula

C308H466N90O95S8

Storage

Store at -20°C

Purity

≥95% (HPLC)

PubChem ID

123773280

InChI Key

AGQDOUOEJSDDQH-BJQYWQRQSA-N

SMILES

[H]NCC(=O)N[C@@H](C(C)C)C(=O)N[C@@H](CCCNC(N)=N)C(=O)N[C@@H](CC(O)=O)C(=O)N[C@@H](C)C(=O)N[C@@H](CC1=CC=C(O)C=C1)C(=O)N[C@@H]([C@@H](C)CC)C(=O)N[C@@H](C)C(=O)N[C@@H](CC(O)=O)C(=O)N[C@@H](CC(O)=O)C(=O)N[C@@H](CCCCN)C(=O)N[C@@H](CC(N)=O)C(=O)N[C@H]1CSSC[C@H](NC(=O)[C@H](CCCCN)NC(=O)CNC(=O)[C@@H]2CCCN2C(=O)[C@@H](NC(=O)[C@H](CCCNC(N)=N)NC(=O)[C@@H](NC(=O)[C@@H]2CCCN2C(=O)[C@@H](NC(=O)[C@H](CCC(O)=O)NC(=O)[C@H](CC(O)=O)NC(=O)[C@@H]2CCCN2C(=O)[C@H](CC(C)C)NC(=O)[C@H](CCCCN)NC(=O)[C@@H](NC(=O)[C@@H]2CSSC[C@@H]3NC(=O)[C@H](CC4=CC=C(O)C=C4)NC(=O)CNC(=O)[C@H](CO)NC(=O)[C@H](CCC(O)=O)NC(=O)[C@H](C)NC(=O)CNC(=O)[C@H](CC(N)=O)NC(=O)[C@H](CCCCN)NC(=O)[C@@H](NC(=O)[C@@H]4CSSC[C@H](NC(=O)[C@@H](NC(=O)[C@H](CC5=CC=C(O)C=C5)NC(=O)[C@@H](NC1=O)C(C)C)[C@@H](C)O)C(=O)N[C@@H](C)C(=O)N[C@@H](CO)C(=O)N[C@@H](CC(N)=O)C(=O)NCC(=O)N[C@@H](CC1=CC=C(O)C=C1)C(=O)N[C@@H](CSSC[C@H](NC(=O)[C@H](C)NC(=O)[C@H](CC(N)=O)NC(=O)CNC(=O)[C@H](CC1=CC=C(O)C=C1)NC(=O)[C@H](CCCNC(N)=N)NC(=O)CNC(=O)[C@@H](NC(=O)[C@H](CC1=CNC5=C1C=CC=C5)NC(=O)[C@H](CCC(N)=O)NC3=O)[C@@H](C)CC)C(=O)N[C@@H](CC1=CNC3=C1C=CC=C3)C(=O)N2)C(=O)N[C@@H](CC(N)=O)C(=O)N[C@@H]([C@@H](C)O)C(=O)N[C@@H](CCC(O)=O)C(=O)N4)[C@@H](C)O)[C@@H](C)CC)C(C)C)[C@@H](C)CC)[C@@H](C)CC)C(=O)N[C@@H](CCCNC(N)=N)C(N)=O

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Solubility

Solubility Soluble to 1mg/ml in water

Calculators

Calculate the mass, volume, or concentration required for a solution.

=
x
x
g/mol

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Calculate the dilution required to prepare a stock solution.

x
=
x

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background References

References are publications that support the biological activity of the product.

Product Documents for OD1

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for OD1

For research use only

Related Research Areas

Ion Channels and Regulators

Customer Reviews for OD1 (1)

5 out of 5
1 Customer Rating
5 Stars
100%
4 Stars
0%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used OD1?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 1 of 1 review Showing All
Filter By:
Clear Filters X

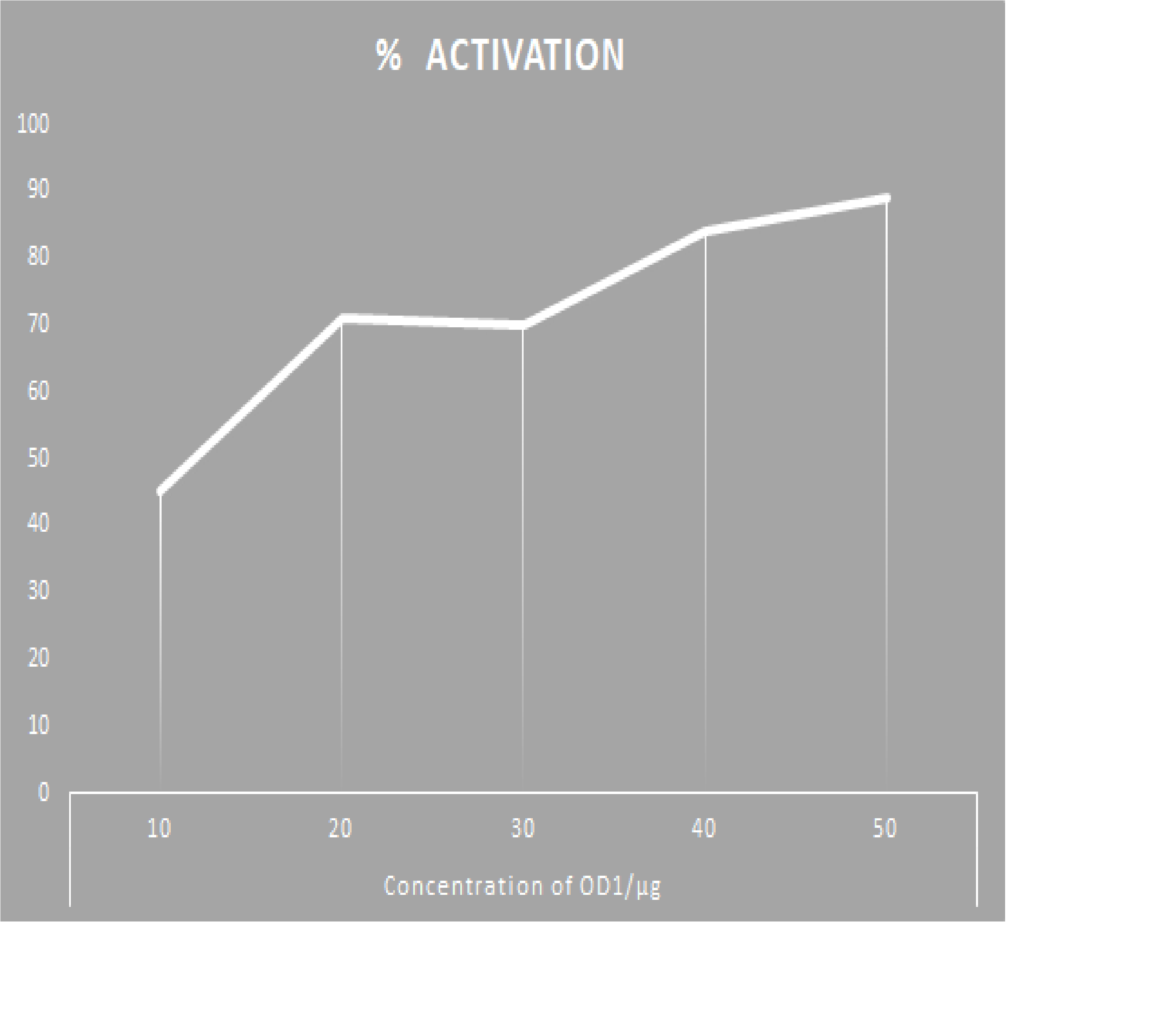

  • OD1 used to activate rNav1.7
    Name: Anonymous
    Species: Human
    Verified Customer | Posted 02/12/2019
    Our lab used the product on rNav1.7. OD1 potently inhibits fast inactivation of mammalian channels Nav1.7.
