Phalloidin-Janelia Fluor® 646

Tocris Bioscience | Catalog # 7201

Red-fluorescent F-actin probe. Binds and labels F-actin. Used for: F-actin labelling. Application: confocal microscopy, super resolution microscopy (SRM) including dSTORM & STED, flow cytometry
Tocris Bioscience
Discontinued Product
7201 has been discontinued. View all Janelia Fluor Dyes products.

Key Product Details

Description

Red-fluorescent F-actin probe. Binds and labels F-actin. Used for: F-actin labelling. Application: confocal microscopy, super resolution microscopy (SRM) including dSTORM & STED, flow cytometry

Alternative Names

Phalloidin-JF646

Wavelength

Excitation = 646 nm, Emission = 664 nm
View all Janelia Fluor Dyes »

Product Description

Key information

: Phalloidin-Janelia Fluor® 646 is a red fluorescent F-actin probe. It binds and labels specifically F-actin.

Used for: Phalloidin-Janelia Fluor® 646 can be used to visualize and quantify F-actin in tissue sections, cell cultures or cell-free experiments with optimal results in formaldehyde-fixed and permeabilized cells.

Application: confocal microscopy, super-resolution microscopy (SRM) including dSTORM and STED and flow cytometry.

Properties and Photophysical Data: Phalloidin-Janelia Fluor® 646 is composed of the F-actin probe, Phalloidin (Cat. No. 4535), conjugated to Janelia Fluor® 646 (Cat. No. 6148). Excitation and emission maxima (λ) are 646 nm and 664 nm, respectively; quantum yield = 0.54; extinction coefficient = 152,000 M-1cm-1.

Scientific Data Images for Phalloidin-Janelia Fluor® 646

Application of Phalloidin-Janelia Fluor® 646

Application of Phalloidin-Janelia Fluor® 646.

HeLa cells were fixed for 10 minutes with 4% formaldehyde in PBS and permeabilized with PBS/0.25% Triton X-100 for 6 minutes. An additional post-fixation step was performed twice with 1% formaldehyde in PBS followed by 3 washes with PBS. Phalloidin Janelia Fluor® 646 was prepared as a 10 μM stock solution diluted in methanol and diluted to a working concentration of 20 nM in PBS. Stained cells were imaged with a Leica SP8X WLL upright confocal microscope. Image kindly provided by Brigitte Bergner, Steffen Dietzel, Core Facility Bioimaging at the Biomedical Center of the Ludwig-Maximilians-Universität München.
Application of Phalloidin-Janelia Fluor® 646

Application of Phalloidin-Janelia Fluor® 646.

HeLa cells were fixed for 10 minutes with 4% formaldehyde in PBS and permeabilized with PBS/0.25% Triton X-100 for 6 minutes. An additional post-fixation step was performed twice with 1% formaldehyde in PBS followed by 3 washes with PBS. Phalloidin Janelia Fluor® 646 was prepared as a 10 μM stock solution diluted in methanol and diluted to a working concentration of 20 nM in PBS. Stained cells were imaged with a Leica SP8X WLL upright confocal microscope. Image kindly provided by Brigitte Bergner, Steffen Dietzel, Core Facility Bioimaging at the Biomedical Center of the Ludwig-Maximilians-Universität München.

Licensing Information

Sold under license from the Howard Hughes Medical Institute, Janelia Research Campus

Optical Data

Phalloidin-Janelia Fluor<sup>®</sup> 646 Dye Spectra
Emission Color Red
Brightness
λabs 646 nm
λem 664 nm
Extinction Coefficient (ε) 152,000 M-1cm-1
Quantum Yield (φ) 0.54
Closest Laser line 640 nm
Application Confocal Imaging, dSTORM, STED, Flow Cytometry

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Product Specifications for Phalloidin-Janelia Fluor® 646

Molecular Weight

1266.51

Formula

C64H75N11O13SSi

Storage

Store at -20°C

Purity

≥90% (HPLC)

InChI Key

AOXMEZGPCIYGOB-BNAQDRCBSA-N

SMILES

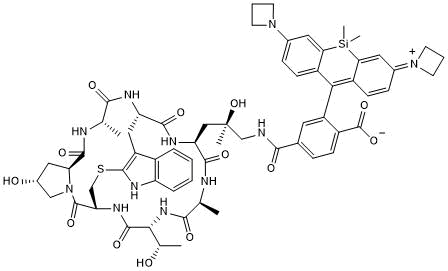

O=C([C@H](NC([C@H](C)NC([C@H](C[C@](O)(C)CNC(C1=CC=C(C([O-])=O)C(C2=C(C=C/3)C([Si](C)(C)C4=CC(N5CCC5)=CC=C42)=CC3=[N+]6CCC\6)=C1)=O)N7)=O)=O)[C@H](C)O)N[C@H]8CSC(N9)=C(C[C@H](NC([C@H](C)NC([C@@H]%10C[C@@H](O)CN%10C8=O)=O)=O)C7=O)C%11=C9C=CC=C%11

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Calculators

Calculate the mass, volume, or concentration required for a solution.

=
x
x
g/mol

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Calculate the dilution required to prepare a stock solution.

x
=
x

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background References

References are publications that support the biological activity of the product.

Product Documents for Phalloidin-Janelia Fluor® 646

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for Phalloidin-Janelia Fluor® 646

For research use only
