Recombinant Human CD177 Fc Chimera Protein, CF

R&D Systems | Catalog # 11238-CD

R&D Systems
100% Guarantee

Key Product Details

  • R&D Systems CHO-derived Recombinant Human CD177 Fc Chimera Protein (11238-CD)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

CHO

Accession Number

AAH29167.1

Structure / Form

Disulfide-linked homodimer

Applications

Bioactivity
View all CD177 Proteins and Enzymes »

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived human CD177 protein
Human CD177
(Leu22-Gly407)
Accession # AAH29167.1		 IEGRMD Human IgG1
(Pro100-Lys330)
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Leu22

Predicted Molecular Mass

68 kDa

SDS-PAGE

83-93 kDa, under reducing conditions.

Activity

Measured by its binding ability in a functional ELISA.
When Recombinant Human CD177 Fc Chimera (Catalog # 11238-CD) is immobilized at 1 µg/mL (100 µL/well), Recombinant Human Podoplanin Fc Chimera (Catalog # 3670-PL) binds with an ED50 of 0.600-7.20 μg/mL.

Scientific Data Images for Recombinant Human CD177 Fc Chimera Protein, CF

Recombinant Human CD177 Fc Chimera Protein Binding Activity.

When Recombinant Human CD177 Fc Chimera Protein (Catalog # 11238-CD) is immobilized at 1 µg/mL (100 µL/well), Recombinant Human Podoplanin Fc Chimera Protein (3670-PL) binds with an ED50 of 0.600-7.20 μg/mL.

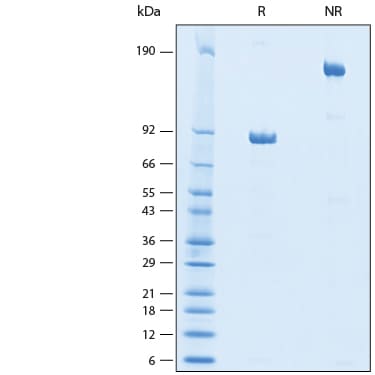

Recombinant Human CD177 Fc Chimera Protein SDS-PAGE.

2 μg/lane of Recombinant Human CD177 Fc Chimera Protein (Catalog # 11238-CD) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 83-93 kDa and 160-180 kDa, respectively.

Formulation, Preparation, and Storage

11238-CD
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: CD177

CD177, also known as NB1, human neutrophil antigen-2a (HNA-2a), and polycythemia rubra vera-1 (PRV-1), is an approximately 50-60 kDa glycoprotein member of the uPAR/CD59/Ly6 superfamily (1). Mature human CD177 is a 387 amino acid (aa) protein that contains two uPAR/Ly6 domains (2, 3). It lacks the first two uPAR domains that are present in mouse and rat CD177. Mature human CD177 shares 55% aa sequence identity with common regions of mouse and rat CD177. Alternative splicing of human CD177 generates additional isoforms that are truncated either just before or just after the first uPAR domain. CD177 is expressed on the surface of neutrophils through a glycosylphosphatidylinositol (GPI) anchor (2, 4, 5). It is nearly absent from neutrophils from paroxysmal nocturnal hemoglobinurea patients who are deficient in the ability to synthesize GPI linkages (5, 7). It is up-regulated on granulocytes from polycythemia vera and thalassemia patients (3, 6). CD177 binds to PECAM-1 on vascular endothelial cells, an interaction which mediates neutrophil adhesion to the vascular wall and neutrophil transmigration (8). It associates in cis with the Integrin MAC-1 (CD11b/CD18) (9). CD177 also associates in cis with Proteinase 3 (PR3) and is required for cell surface PR3 expression (9-11). PR3 is normally found in intracellular vesicles, but once at the cell surface it can serve as an autoimmune target for anti-neutrophil cytoplasmic antibodies (ANCA) (12). The ANCA targeting of CD177-PR3 complexes triggers neutrophil activation and vasculitis (9, 12).

References

  1. Stroncek, D.F. (2007) Curr. Opin. Hematol. 14:688.
  2. Kissel, K. et al. (2001) Eur. J. Immunol. 31:1301.
  3. Temerinac, S. et al. (2000) Blood 95:2569.
  4. Skubitz, K.M. et al. (1991) J. Leukoc. Biol. 49:163.
  5. Klippel, S. et al. (2002) Blood 100:2441.
  6. Zoi, K. et al. (2008) Brit. J. Haematol. 141:100.
  7. Boccuni, P. et al. (2000) Crit. Rev. Oncol. Hematol. 33:25.
  8. Sachs, U.J.H. et al. (2007) J. Biol. Chem. 282:23603.
  9. Jerke, U. et al. (2011) J. Biol. Chem. 286:7070.
  10. von Vietinghoff, S. et al. (2007) Blood 109:4487.
  11. Kuckleburg, C.J. et al. (2012) J. Immunol. 188:2419.
  12. van Timmeren, M.M. and P. Heeringa (2012) Curr. Opin. Rheumatol. 24:8.

Long Name

Polycythemia Rubra Vera Protein 1

Alternate Names

CD177, HNA-2a, NB1 GP, PRV1

Entrez Gene IDs

57126 (Human); 68891 (Mouse)

Gene Symbol

CD177

UniProt

AAH29167.1 (Human)
