SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that are commonly comprised of four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M), and Nucleocapsid protein (N) (1). SARS-CoV-2 Spike Protein (S Protein) is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180-kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-CoV-2, as with most coronaviruses, proteolytic cleavage of the S protein into the S1 and S2 subunits is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3-5). The S protein of SARS-CoV-2 shares 75% and 29% amino acid (aa) sequence identity with the S protein of SARS-CoV-1 and MERS, respectively. The S Protein of the SARS-CoV-2 virus, like the SARS-CoV-1 counterpart, binds Angiotensin-Converting Enzyme 2 (ACE2), but with much higher affinity and faster binding kinetics through the receptor binding domain (RBD) located in the C-terminal region of S1 (6). Based on structural biology studies, the RBD can be oriented either in the up/standing or down/lying state with the up/standing state associated with higher pathogenicity (7). Polyclonal antibodies to the RBD of the SARS-CoV-2 protein have been shown to inhibit interaction with the ACE2 receptor, confirming RBD as an attractive target for vaccinations or antiviral therapy (8). It has been demonstrated that the S Protein can invade host cells through the CD147/EMMPRIN receptor and mediate membrane fusion (9, 10).
Recombinant SARS-CoV-2 Spike WT (GCN4-IZ) His Protein, CF
R&D Systems | Catalog # 11110-CV
Loading...
Key Product Details
- R&D Systems HEK293-derived Recombinant SARS-CoV-2 Spike WT (GCN4-IZ) His Protein (11110-CV)
- Quality control testing to verify active proteins with lot specific assays by in-house scientists
- All R&D Systems proteins are covered with a 100% guarantee
Source
HEK293
Accession Number
Applications
Bioactivity
Loading...
Product Specifications
Source
Human embryonic kidney cell, HEK293-derived sars-cov-2 Spike protein
| SARS-CoV-2 Spike (Val16-Lys1211) Accession # YP_009724390.1 |
GCN4-IZ | 6-His tag |
| N-terminus | C-terminus |
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Val16 & Ser686
Predicted Molecular Mass
75 kDa & 63 kDa
SDS-PAGE
78-97 kDa & 146-176 kDa, under reducing conditions.
Activity
Measured by its binding ability in a functional ELISA with Recombinant
Human Neuropilin-1 Fc Chimera
(Catalog #
10455-N1).
Scientific Data Images for Recombinant SARS-CoV-2 Spike WT (GCN4-IZ) His Protein, CF

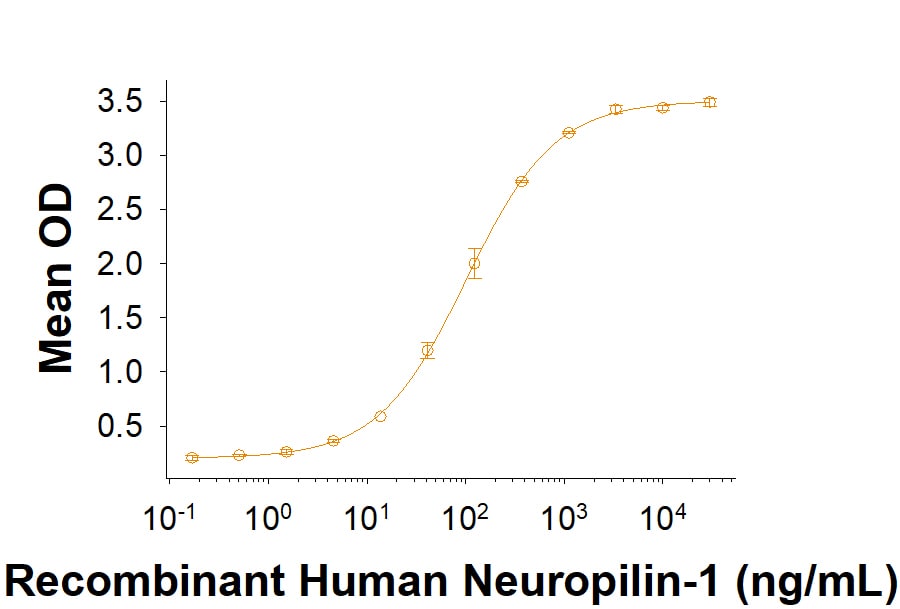

Recombinant SARS-CoV-2 Spike WT (GCN4-IZ) His-tag Protein Binding Activity.

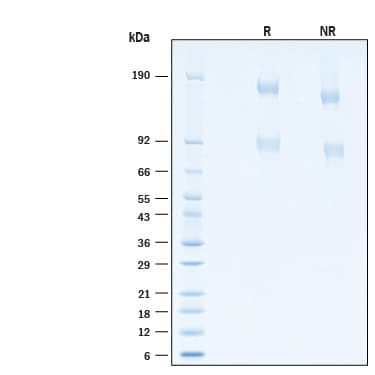

Recombinant SARS-CoV-2 Spike WT (GCN4-IZ) His-tag Protein (Catalog # 11110-CV) binds Recombinant Human Neuropilin-1 Fc Chimera (10455-N1) in a functional ELISA.Recombinant SARS-CoV-2 Spike WT (GCN4-IZ) His-tag Protein SDS-PAGE.
2 μg/lane of Recombinant SARS-CoV-2 Spike WT (GCN4-IZ) His-tag Protein (Catalog # 11110-CV) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 78-97 kDa & 146-176 kDa, under reducing conditions.Formulation, Preparation, and Storage
11110-CV
| Formulation | Supplied as a 0.2 μm filtered solution in PBS with Trehalose. |
| Shipping | The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Background: Spike
References
- Wu, F. et al. (2020) Nature 579:265.
- Tortorici, M.A. and D. Veesler (2019). Adv. Virus Res. 105:93.
- Bosch, B.J. et al. (2003). J. Virol. 77:8801.
- Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871.
- Millet, J.K. and G.R. Whittaker (2015) Virus Res. 202:120.
- Ortega, J.T. et al. (2020) EXCLI J. 19:410.
- Yuan, Y. et al. (2017) Nat. Commun. 8:15092.
- Tai, W. et al. (2020) Cell. Mol. Immunol. https://doi.org/10.1016/j.it.2020.03.007.
- Wang, X. et al. (2020) https://doi.org/10.1038/s41423-020-0424-9.
- Wang, K. et al. (2020) bioRxiv https://www.biorxiv.org/content/10.1101/2020.03.14.988345v1.
Long Name
Spike Protein
Alternate Names
S Protein
Entrez Gene IDs
Gene Symbol
S
UniProt
