Simple Plex Human ICAM-1/CD54 Cartridge

Name: Simple Plex Human ICAM-1/CD54 Cartridge
Brand: R&D Systems
SKU: SPCKB-PS-000303
Price: 450 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-PS-000303

Submit a review

Citations

Product Documents

Simple Plex Human ICAM-1/CD54 assay kit for use on Ella instrument. Contains cartridge, sample diluent 000303, and wash buffer.

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (25 µL), Serum (500 nL), EDTA Plasma (500 nL), Heparin Plasma (500 nL), Cerebrospinal Fluid (5 µL)

Sensitivity

2.01 pg/mL

Assay Range

4.1-15630 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid)

Simple Plex Human ICAM-1/CD54 Cartridge Summary

Simple Plex assay for the detection of human ICAM-1 in serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF)

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all ICAM-1/CD54 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human ICAM-1.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Cerebrospinal Fluid, EDTA Plasma, Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	10	10
Mean (pg/mL)	117	5027	106	5096
Standard Deviation	6.60	318	6.78	245
CV%	5.7	6.3	6.4	4.8

Recovery for Simple Plex Human ICAM-1/CD54 Cartridge

Recovery was not necessary as ICAM-1 shows natural linearity data from a neat sample to a 1:16 dilution.

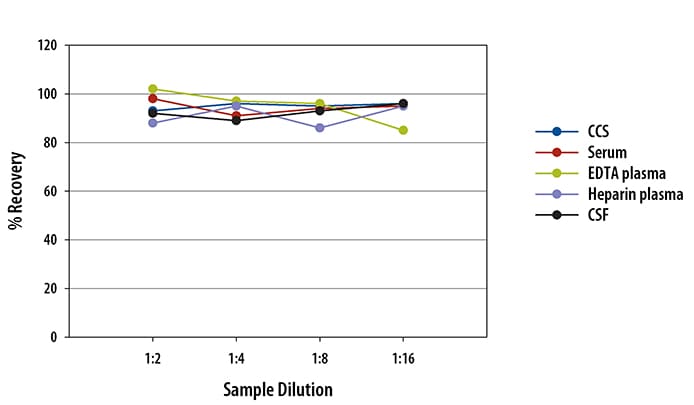

Linearity

Samples containing and/or spiked with high concentrations of human ICAM-1 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Images for Simple Plex Human ICAM-1/CD54 Cartridge

Human ICAM-1 Simple Plex Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: ICAM-1/CD54

ICAM-1 (intercellular adhesion molecule-1), also known as CD54, is a transmembrane protein that is upregulated on endothelial and epithelial cells at sites of inflammation. It mediates the vascular adhesion and paracellular migration of leukocytes expressing activated LFA-1 (CD11a/CD18) and Mac-1 (CD11b/CD18). It also binds several non-integrin ligands including CD43/Sialophorin, Fibrinogen, Hyaluronan, rhinoviruses, and Plasmodium falciparum-infected erythrocytes. Soluble ICAM-1 promotes angiogenesis and serves an indicator of vascular endothelial cell activation or damage. Elevated levels of soluble ICAM-1 are associated with cardiovascular disease, type 2 diabetes, organ transplant dysfunction, oxidant stress, increased abdominal fat mass, hypertension, liver disease, certain malignancies, and cerebral malaria.
