Simple Plex Human Lipocalin-2/NGAL Cartridge

R&D Systems | Catalog # SPCKB-PS-000509

Simple Plex Cartridge Kit for quantitation of Lipocalin-2. Includes wash buffer and sample diluent. For use with the Ella automated immunoassay system.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (10 µL), EDTA Plasma (10 µL), Heparin Plasma (10 µL), Urine (10 µL), Cerebrospinal Fluid (25 µL)

Sensitivity

8.93 pg/mL

Assay Range

17.2-10470 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine, Cerebrospinal Fluid)

Simple Plex Human Lipocalin-2/NGAL Cartridge Summary

Simple Plex assay for the detection of human Lipocalin-2 in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), urine, and cerebrospinal fluid (CSF).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all Lipocalin-2/NGAL Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human Lipocalin-2.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Cerebrospinal Fluid, EDTA Plasma, Heparin Plasma, Serum, Urine

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 21 20
Mean (pg/mL) 69.3 3041 66.8 3000
Standard Deviation 4.08 214 4.78 189
CV% 5.9 7.0 7.2 6.3

Recovery for Simple Plex Human Lipocalin-2/NGAL Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 103 102-104

Linearity

Samples containing and/or spiked with high concentrations of human Lipocalin-2 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

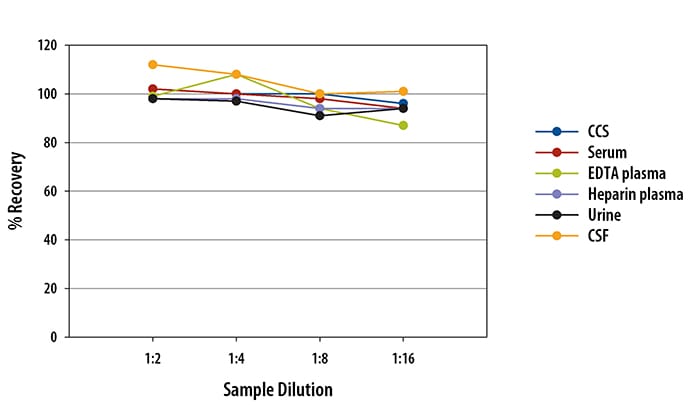

Human Lipocalin-2/NGAL Ella Assay Linearity

Scientific Data Images for Simple Plex Human Lipocalin-2/NGAL Cartridge

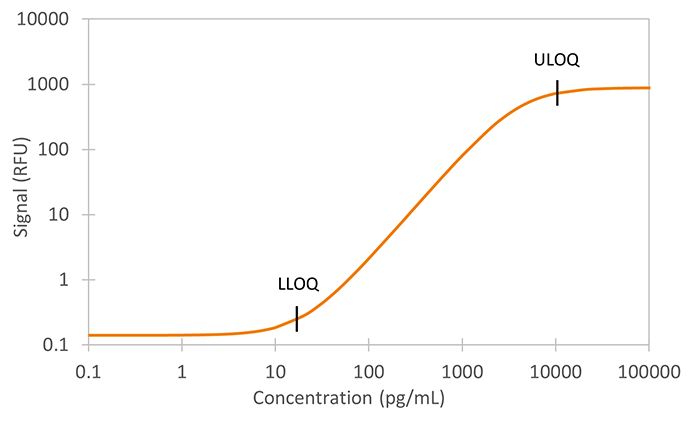

Human Lipocalin-2/NGAL Ella Assay Standard Curve

Human Lipocalin-2/NGAL Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Lipocalin-2/NGAL

Lipocalin-2/NGAL (Neutrophil Gelatinase-associated Lipocalin) is a secreted carrier protein that acts in the innate immune response, differentiation, tumorigenesis, and cell survival. It is induced in macrophages, glial cells, and epithelial cells during inflammation, anemia, and hypoxia. Lipocalin-2 binds catecholate siderophores which are secreted by bacteria and are required for bacterial iron uptake. Lipocalin-2 functions as a bacteriostatic agent in the innate immune response by limiting the bacterial iron supply. Iron uptake by Lipocalin-2 into mammalian cells is important for the regulation of iron-sensitive gene transcription. In the kidney, Lipocalin-2-mediated iron trafficking is required for protection from renal injury.

Long Name

Neutrophil Gelatinase-associated Lipocalin

Alternate Names

24p3, LCN2, Lipocalin2, MSFI, NGAL, Oncogene 24p3, p25, Siderocalin, Uterocalin

Entrez Gene IDs

3934 (Human); 16819 (Mouse); 170496 (Rat); 102137149 (Cynomolgus Monkey)

Gene Symbol

LCN2
