Simple Plex Human MIF Cartridge

R&D Systems | Catalog # SPCKB-PS-000512

Simple Plex Human MIF assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (10 µL), Platelet-poor EDTA Plasma (10 µL), Platelet-poor Heparin Plasma (10 µL), Urine (10 µL), Cerebrospinal Fluid (25 µL)

Sensitivity

5.74 pg/mL

Assay Range

26.3-16020 pg/mL (Cell Culture Supernates, Serum, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma, Urine, Cerebrospinal Fluid)

Simple Plex Human MIF Cartridge Summary

Simple Plex assay for the detection of human Macrophage Migration Inhibitory Factor (MIF) in cell culture supernatant (CCS), serum and platelet-poor plasma (EDTA/Heparin), urine, and cerebrospinal fluid (CSF).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all MIF Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human MIF.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, Cerebrospinal Fluid, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma, Serum, Urine

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 20 19
Mean (pg/mL) 108 5001 99.1 4400
Standard Deviation 4.76 263 6.02 375
CV% 4.4 5.3 6.1 8.5

Recovery for Simple Plex Human MIF Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 106 105-107

Linearity

Samples containing and/or spiked with high concentrations of human MIF were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

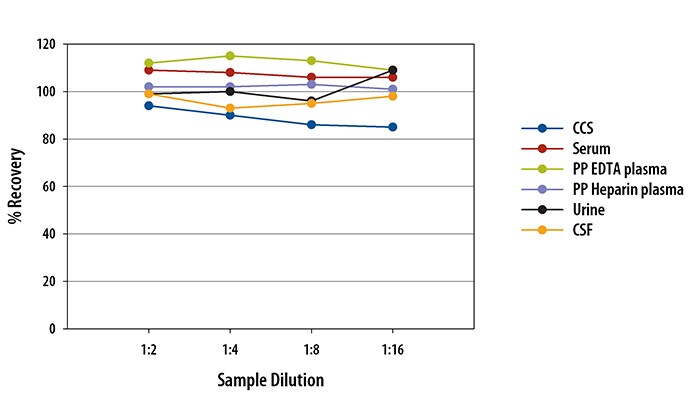

Human MIF Simple Plex Assay Linearity

Scientific Data Images for Simple Plex Human MIF Cartridge

Human MIF Simple Plex Assay Standard Curve

Human MIF Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: MIF

MIF (macrophage migration inhibitory factor) is a pro-inflammatory cytokine that is released during microbial infection, ARDS, rheumatoid arthritis, atherosclerosis, type 2 diabetes, and cancer. It signals through CXCR4, CXCR7, or complexes of CD74-CD44. MIF exhibits potent paracrine and autocrine stimulatory effects on cell growth and survival and enhances the production of inflammatory cytokines. It also inhibits the effectiveness of immunosuppressive glucocorticoids.

Long Name

Macrophage Migration Inhibitory Factor

Alternate Names

EC 5.3.2.1, EC 5.3.3.12, GIFmacrophage migration inhibitory factor, GLIF, Glycosylation-inhibiting factor, L-dopachrome isomerase, L-dopachrome tautomerase, macrophage migration inhibitory factor (glycosylation-inhibiting factor), MMIF, Phenylpyruvate tautomerase

Entrez Gene IDs

4282 (Human); 17319 (Mouse)

Gene Symbol

MIF
