Simple Plex Human Neurogranin Cartridge

R&D Systems | Catalog # SPCKB-PS-009250

Simple Plex Human Neurogranin assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (10 µL), EDTA Plasma (10 µL), Heparin Plasma (10 µL), Cerebrospinal Fluid (10 µL)

Sensitivity

2.12 pg/mL

Assay Range

16.4-4000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid)

Simple Plex Human Neurogranin Cartridge Summary

Simple Plex assay is for the detection of human Neurogranin in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF) in Sample Diluent SD13.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all Neurogranin Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human Neurogranin.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, Cerebrospinal Fluid, EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 95 98
Mean (pg/mL) 41.4 1893 37.1 1744
Standard Deviation 3.68 144 3.78 163
CV% 8.9 7.6 10.2 9.4

Recovery for Simple Plex Human Neurogranin Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 102 100-104

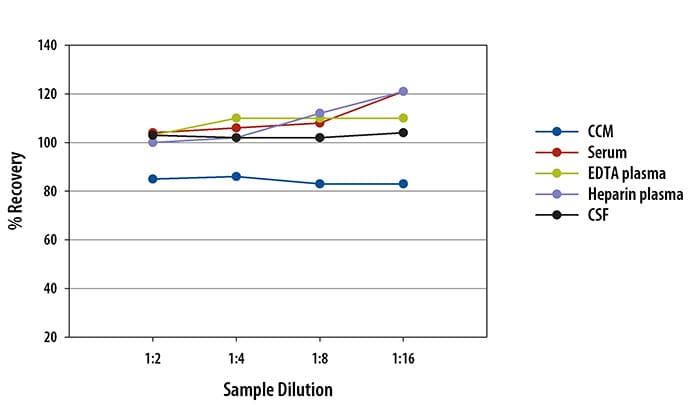

Linearity

Samples containing and/or spiked with high concentrations of human Neurogranin were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Simple Plex Human Neurogranin Cartridge

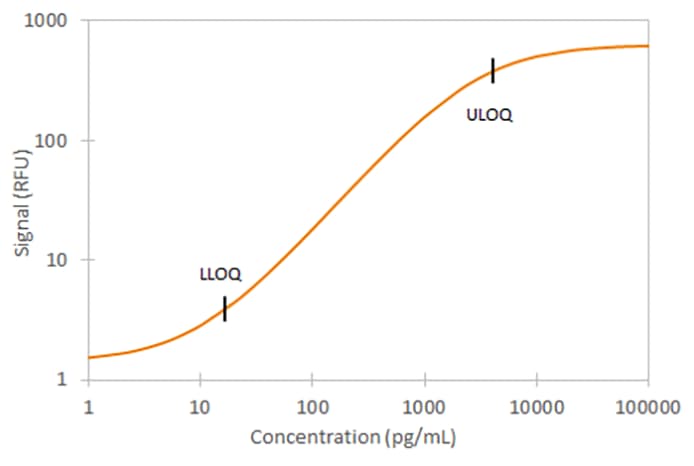

Human Neurogranin Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Neurogranin

Neurogranin (NRGN) is the human homolog of the neuron-specific rat RC3/neurogranin gene. This gene encodes a postsynaptic protein kinase substrate that binds calmodulin in the absence of calcium. The NRGN gene contains four exons and three introns. The exons 1 and 2 encode the protein and exons 3 and 4 contain untranslated sequences. It is suggested that the NRGN is a direct target for thyroid hormone in human brain, and that control of expression of this gene could underlay many of the consequences of hypothyroidism on mental states during development as well as in adult subjects. (provided by RefSeq)

Alternate Names

hng, NRGN, RC3

Entrez Gene IDs

4900 (Human); 64011 (Mouse); 64356 (Rat)

Gene Symbol

NRGN
