Simple Plex Human P-Selectin/CD62P Assay Cartridge

R&D Systems | Catalog # SPCKB-PS-008987

Simple Plex Human P-Selectin assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (10 µL), EDTA Plasma (10 µL), Platelet-poor EDTA Plasma (10 µL), Heparin Plasma (10 µL), Platelet-poor Heparin Plasma (10 µL)

Sensitivity

3.26 pg/mL

Assay Range

13.1-20000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Platelet-poor EDTA Plasma, Heparin Plasma, Platelet-poor Heparin Plasma)

Simple Plex Human P-Selectin/CD62P Assay Cartridge Summary

Simple Plex assay for the detection of human P-Selectin/CD62P in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and platelet-poor plasma (EDTA/Heparin).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all P-Selectin/CD62P Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human P-Selectin.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 58 58
Mean (pg/mL) 136 7673 152 7536
Standard Deviation 6.81 596 14.1 625
CV% 5.0 7.8 9.3 8.3

Recovery for Simple Plex Human P-Selectin/CD62P Assay Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 91 89-94

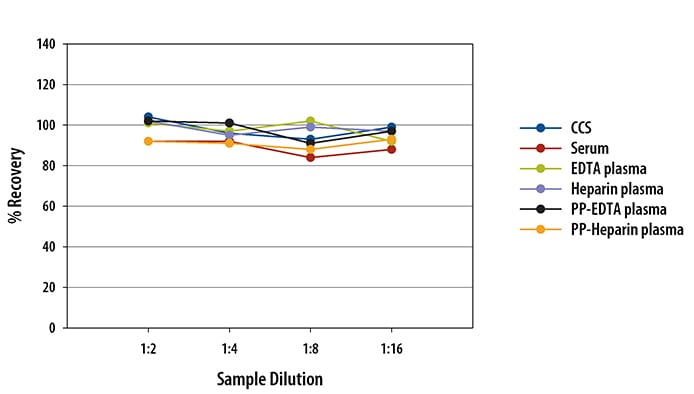

Linearity

Samples containing and/or spiked with high concentrations of human P-Selectin were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Simple Plex Human P-Selectin/CD62P Assay Cartridge

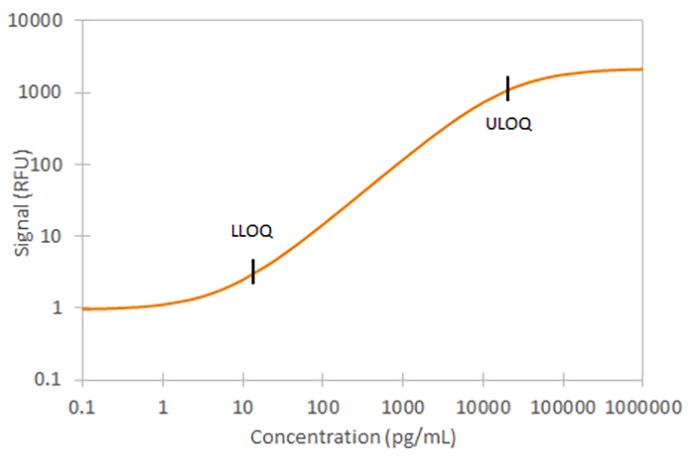

Human P-Selectin/CD62P Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: P-Selectin/CD62P

P-Selectin, also known as CD62P, GMP-140, PADGEM, and LECAM-3, is a transmembrane adhesion protein that is upregulated on activated platelets and vascular endothelial cells. It binds to hematopoietic cell PSGL-1/CD162 with highly clustered O-linked sialyl Lewis-x (sLex ) tetrasaccharides and sulfated tyrosine, as well as to heparin sulfate, Versican, and CD42b/GPIb alpha. P-Selectin mediates the initial interaction of circulating leukocytes with activated endothelial cells that produces a characteristic ‘rolling’ of the leukocytes on the endothelium. It is therefore critical for leukocyte extravasation at sites of inflammation and leukocyte involvement in thrombus formation at sites of vascular injury.

Alternate Names

CD62P, GMP140, GRMP, PADGEM, PSEL, SELP

Entrez Gene IDs

6403 (Human); 20344 (Mouse)

Gene Symbol

SELP
