Simple Plex Human RAGE Cartridge

Catalog #: SPCKB-PS-000341 Datasheet / COA / SDS
Simple Plex Human RAGE/AGER assay kit for use on Ella instrument. Contains cartridge, sample diluent SD06, and wash buffer
Catalog # Availability Size / Price Qty
SPCKB-PS-000341
SPCKA-PS-000341
SPCKC-PS-000341
Human RAGE Simple Plex Assay
3 Images
Product Details
FAQs
Reviews

Simple Plex Human RAGE Cartridge Summary

Sample Type & Volume Required Per Well*
Cell Culture Supernates (10 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)
Sensitivity
12.4 pg/mL
Assay Range
12.4 - 7,570 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Specificity
Natural and recombinant human RAGE.
Cross-reactivity
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
Interference
No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of human Receptor for Advanced Glycation End product (RAGE) in cell culture supernatant (CCS), serum and plasma (EDTA/Heparin).

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay
Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 19 19
Mean (pg/mL) 49.6 2301 45.3 2263
Standard Deviation 3.15 175 3.16 247
CV% 6.4 7.6 7 10.9

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Supernates (n=5) 108 106-110

Linearity

Samples containing and/or spiked with high concentrations of human RAGE were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

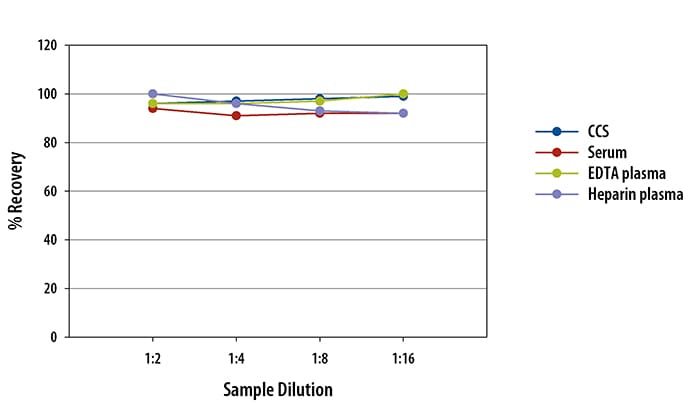

Human RAGE Simple Plex Assay Linearity

Scientific Data

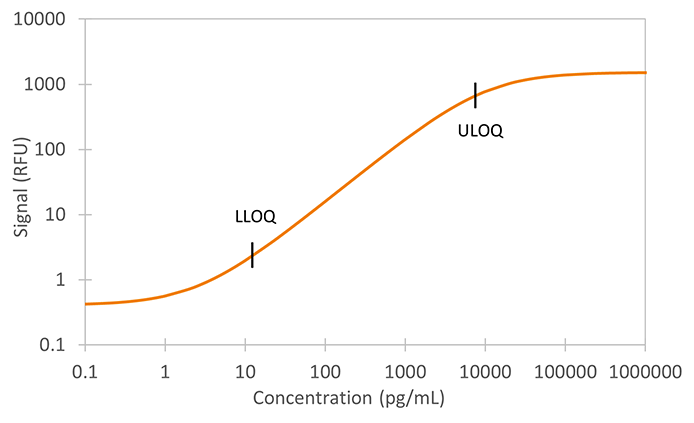

Human RAGE Simple Plex Assay Standard Curve

Product Datasheets

You must select a language.

x

Preparation and Storage

Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: RAGE/AGER

RAGE (Receptor for Advanced Glycation End product) is a transmembrane glycoprotein that binds advanced glycation end products (AGEs), beta-amyloid peptides, HMGB1/Amphoterin, and several S100 family proteins. AGEs are adducts formed by the non-enzymatic glycation and oxidation of proteins and lipids. A soluble form can also be generated by MMP-mediated shedding. RAGE is expressed in the CNS during development as well as in adult endothelial cells, smooth muscle cells, pericytes, monocytes, and neurons. It is locally upregulated in vascular inflammation (e.g. diabetes, atherosclerosis, vascular injury, Alzheimer’s disease). At these sites, RAGE binding to S100A1, EN-RAGE/S100A12, or S100B induces inflammatory immune cell adhesion and infiltration as well as vascular smooth muscle proliferation, neointimal expansion, atherosclerotic plaque development, and transport of A-beta into the cerebrospinal fluid. In cancer, RAGE binding to HMGB1, S100A8, or S100A9 promotes tumor growth and metastasis in addition to inflammatory cell infiltration.

To view our complete solutions for RAGE research, visit bio-techne.com.

Long Name:
Receptor for Advanced Glycation End Products
Entrez Gene IDs:
177 (Human); 11596 (Mouse); 81722 (Rat); 403168 (Canine)
Alternate Names:
advanced glycosylation end product-specific receptor; AGER; RAGE isoform delta; RAGE isoform sRAGE-delta; RAGE; Receptor for advanced glycosylation end products; receptor for advanced glycosylation end-products; SCARJ1
