Simple Plex Human TREM-1 Cartridge

R&D Systems | Catalog # SPCKB-PS-001020

Simple Plex Human TREM-1 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL), Urine (25 µL), Cerebrospinal Fluid (25 µL)

Sensitivity

0.73 pg/mL

Assay Range

4.2-40000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine, Cerebrospinal Fluid)

Simple Plex Human TREM-1 Cartridge Summary

Simple Plex assay for the detection of human Triggering Receptor Expressed on Myeloid cells (TREM-1) in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), urine, and cerebrospinal fluid (CSF).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all TREM-1 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human TREM-1.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, Cerebrospinal Fluid, EDTA Plasma, Heparin Plasma, Serum, Urine

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 24 23
Mean (pg/mL) 216 11034 220 11170
Standard Deviation 17.9 1013 20.1 673
CV% 8.3 9.2 9.1 6.0

Recovery for Simple Plex Human TREM-1 Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Supernates (n=3) 119 115-123
Urine (n=5) 118 113-125

Linearity

Samples containing and/or spiked with high concentrations of human TREM-1 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

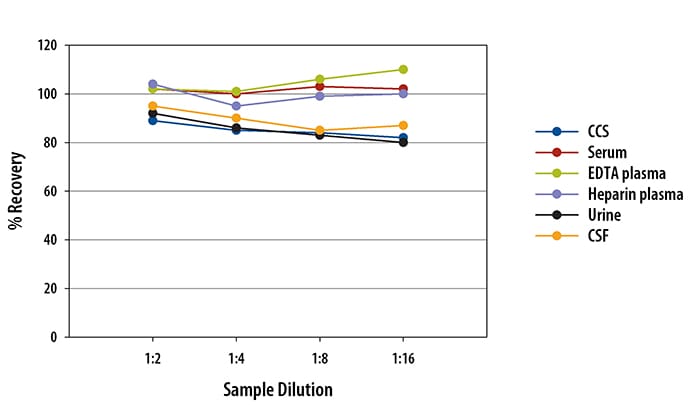

Human TREM-1 Ella Assay Linearity

Scientific Data Images for Simple Plex Human TREM-1 Cartridge

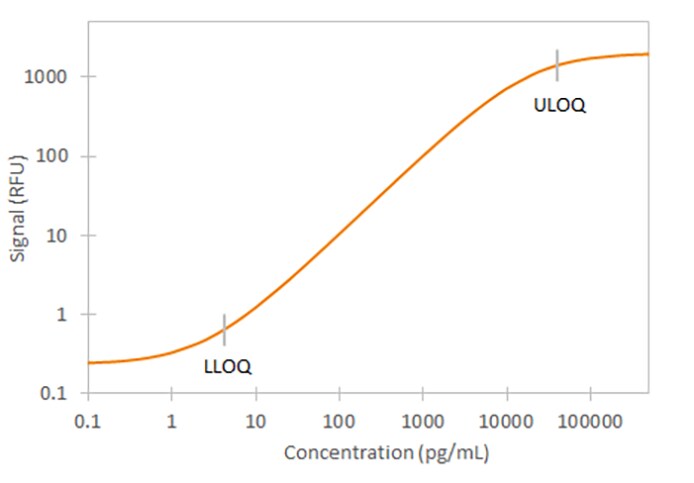

Human TREM-1 Ella Assay Standard Curve

Human TREM-1 Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TREM-1

The TREM family of receptors regulates the activity of various cell types of the immune system including neutrophils, monocyte/macrophages, microglia, and dendritic cells. The receptors are members of the immunoglobulin superfamily, characterized structurally by a single V-set immunoglobulin (Ig) domain and a short cytoplasmic tail. TREMs associate with the DAP12 signal adapter, an immunoreceptor tyrosine-based activation motif- (ITAM)-containing protein that is phosphorylated and transduces signals when activated.

Long Name

Triggering Receptor Expressed on Myeloid Cells 1

Alternate Names

CD354, TREM1

Entrez Gene IDs

54210 (Human); 58217 (Mouse)

Gene Symbol

TREM1
