Simple Plex Human UCH-L1 Cartridge

R&D Systems | Catalog # SPCKB-PS-010947

Simple Plex Human UCH-L1 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.


Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL), Cerebrospinal Fluid (10 µL)

Sensitivity

17.87 pg/mL

Assay Range

32.77-50000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid)

Simple Plex Human UCH-L1 Cartridge Summary

Simple Plex assay is for the detection of human Ubiquitin C-terminal Hydrolase L1 (UCH-L1) in cell culture supernates (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF) in Sample Diluent SD13.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Loading...

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant UCH-L1.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, Cerebrospinal Fluid, EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 51 51
Mean (pg/mL) 418 18533 408 19520
Standard Deviation 29.0 1381 33.8 1589
CV% 6.9 7.4 8.3 8.1

Recovery for Simple Plex Human UCH-L1 Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 106 106-107
Cerebrospinal Fluid (n=4) 107 99-113
EDTA Plasma (n=4) 110 107-112
Heparin Plasma (n=4) 117 104-123
Serum (n=4) 116 109-122

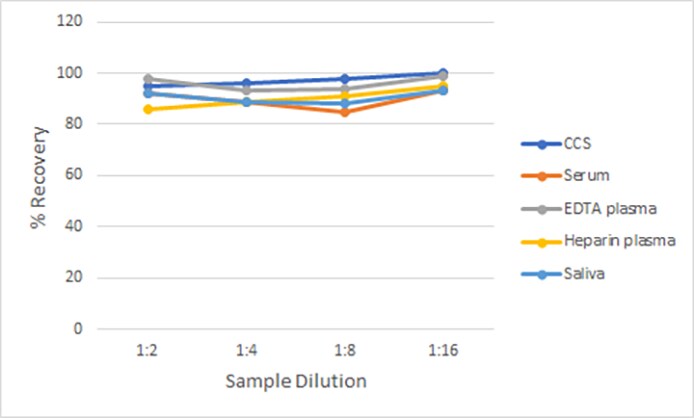

Linearity

Samples containing and/or spiked with high concentrations of UCH-L1were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Human UCH-L1 Ella Assay

Scientific Data Images for Simple Plex Human UCH-L1 Cartridge

Human UCH-L1 Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: UCH-L1/PGP9.5

Ubiquitin Carboxyterminal Hydrolase Isozyme 1 (UCH-L1), also known as PGP9.5, is a cytoplasmic protein that belongs to the peptidase C12 family of enzymes. It is predominantly expressed in neurons in the brain and has only limited expression in other healthy tissue such as the gonads. However, UCH-L1/PGP.95 is found in high levels in several cancer cells types including pancreatic cancer, colorectal cancer, and breast cancer. UCH-L1/PGP.95 has dual enzymatic activity. As a monomer, it acts as Ubiquitin hydrolase that removes Ubiquitin from modified proteins. As a homodimer, UCH-L1/PGP9.5 acts as a ligase that creates Ubiquitin dimers. UCH-L1/PGP9.5's role in neurons appears to be that of generating free Ubiquitin. UCH-L1/PGP9.5 is required for the maintenance of axonal integrity, and its dysfunction has been implicated in neurodegenerative disease. Human UCH-L1 is 223 amino acids (aa) in length and has a predicted molecular weight of 24-27 kDa. It is O-glycosylated, ubiquitinated, and farnesylated; when farnesylated, it becomes associated with cell membranes. Three potential splice forms have been reported. One shows a two aa substitution for aa 12-15, a second contains an alternative start site at Met82, and a third shows the same start site coupled with a deletion of aa 138-153. Full-length human UCH-L1 shares 95% aa identity with the mouse ortholog

Long Name

Ubiquitin C-terminal Hydrolase L1

Alternate Names

PARK5, PGP9.5, UCHL1

Entrez Gene IDs

7345 (Human); 22223 (Mouse)

Gene Symbol

UCHL1

Additional UCH-L1/PGP9.5 Products

Product Documents for Simple Plex Human UCH-L1 Cartridge

Loading product document information...

Loading product document information...

Certificate of Analysis

To download a Certificate of Analysis, please enter your Simple Plex catalog number and lot number in the search boxes below.

Product Specific Notices for Simple Plex Human UCH-L1 Cartridge

For research use only
