Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG)

R&D Systems | Catalog # GL402

R&D Systems
100% Guarantee

Key Product Details

Conjugate

Cy5

Product Summary for Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG)





Formulation

Supplied in 25 mM Tris, 150 mM NaCl, pH 7.5

Stability & Storage

• 6 months from date of receipt, -20 to -70 °C
as supplied.
• 3 months, -20 to -70 °C under sterile
conditions after opening.
• Use a manual defrost freezer and avoid
repeated freeze-thaw cycles.

Applications

  • Used as a substrate to study activity of various heparanases and heparinases.
  • Used to study protein heparan sulfate interactions.

Key Features:

  • Excitation at 649 nm and emission at 671 nm.
  • The fluorescent dye Cy5 is conjugated to the non-reducing end terminal GlcNAc residue.
  • Heparan sulfate can be released by digestion with heparanase or heparinase II, heparinase III.
  • Can be separated on 15%-17% SDS-PAGE and directly visualized.

For Details:

Related Reagents

Click Chemistry

Enzymes and detection reagents

  • Recombinant Human Active Heparanase/HPSE Protein (7570-GH)
  • Recombinant Mouse Active Heparanase/HPSE Protein (9788-GH)
  • Recombinant Human Exostosin 1/2 Heterodimer Protein (8567-GT)


Scientific Data Images for Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG)

Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG).

This substrate can be used to study the activity of various heparanases and heparinases. This can also be used to study protein heparan sulfate interactions. The fluorescent dye Cy5 is conjugated to the non-reducing end terminal GlcNAc residue.

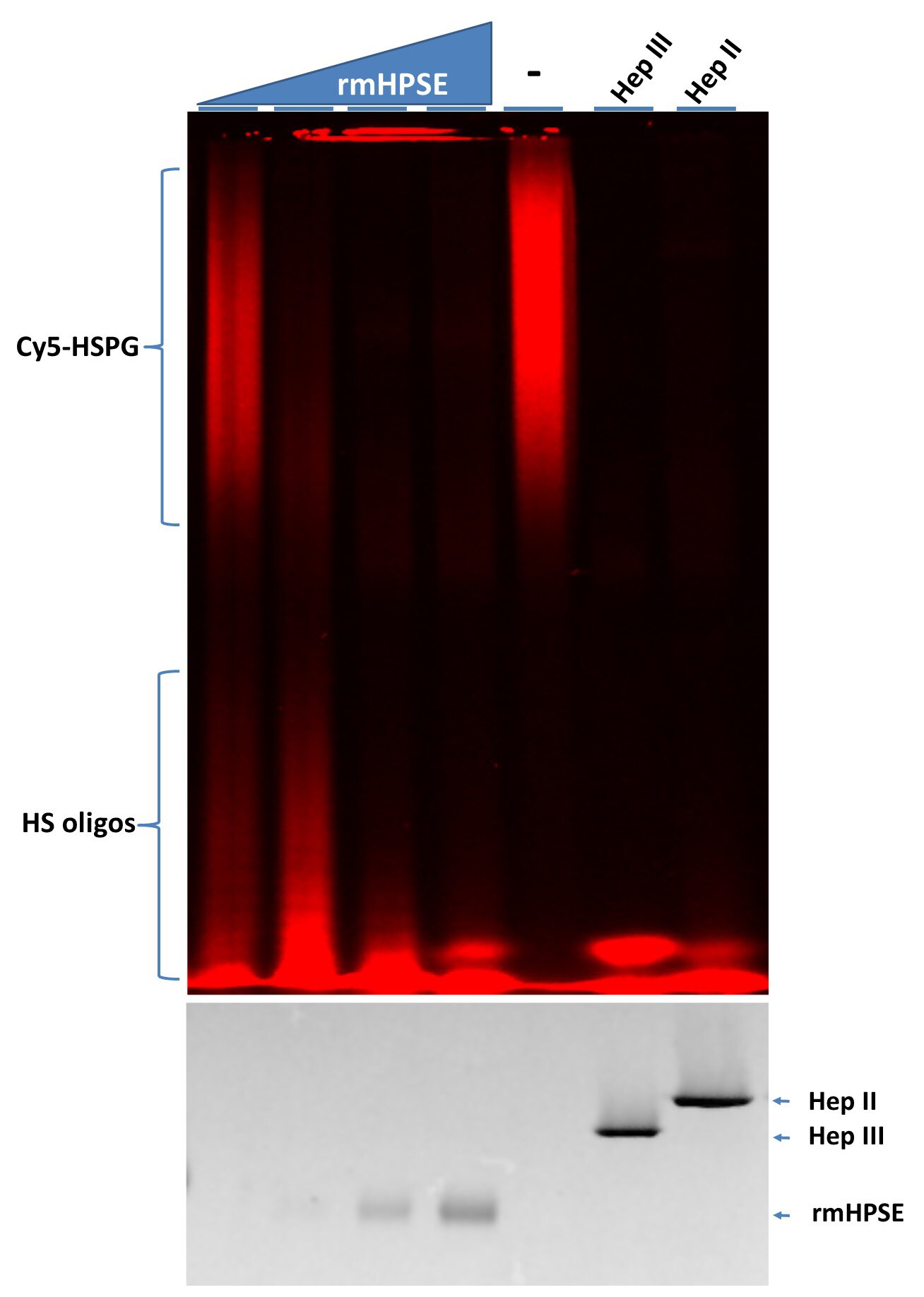

Fluorescent gel mobility shift caused by Recombinant Mouse Heparanase.

Lane 1-4 contained Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG) (Catalog # GL402) digested with increasing amounts of Recombinant Mouse Active Heparanase/HSPE Protein (9788-GH). Lane 5 contained Cy5-HSPG only. Lane 6, Cy5-HSPG was digested with Recombinant P. heparinus Heparinase III Protein (6145-GH). Lane 7, Cy5-HSPG was digested with Recombinant P. heparinus Heparinase II Protein (6336-GH).

Formulation, Preparation, and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at -70 °C. Use a manual defrost freezer and avoid repeated freeze-thaw cycles. Do not use past expiration date.

Background: Heparan Sulfate Proteoglycan/HSPG

Long Name

Heparan Sulfate Proteoglycan

Additional Heparan Sulfate Proteoglycan/HSPG Products

Product Documents for Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG)

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG)

For research use only

Customer Reviews for Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG)

There are currently no reviews for this product. Be the first to review Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG) and earn rewards!

Have you used Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG)?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Protocols

View specific protocols for Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG) (GL402):

Sample Assay Protocol for using Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG) as substrate for Recombinant Mouse Heparanase Assay

Protocols are guidelines. Parameters need to be optimized by end users. Suggested input of Cy5-HSPG in an assay separated on SDS-PAGE is 2 pmol.

Materials

  • Assay Buffer: 50 mM NaOAc, pH 5.0
  • Recombinant Mouse Active Heparanase/HPSE Protein (rmHPSE) (Catalog # 9788-GH)
  • Cy5 Labeled Heparan Sulfate Proteoglycan (Cy5-HSPG) (R&D Systems®, Catalog # GL402)
  • 15% SDS-PAGE
  • 6X Gel Loading Dye
  • A fluorescent imager

Assay

  1. Dilute rmHPSE to 100 ng/µL and Cy5-HSPG to 0.4 µM with Assay Buffer.
  2. Add 5 µL of rmHPSE, 5 µL of Cy5-HSPG, and 10 µL of Assay Buffer to a tube.
  3. Prepare a negative control by mixing 5 µL of Cy5-HSPG and 15 µL of Assay Buffer in another tube.
  4. Incubate the reaction and control at 37o C for 60 minutes.
  5. Add 5 µL of 6X Gel Loading Dye to each tube.
  6. Load 12.5 µL of each tube to a 15% SDS-PAGE gel and run the gel at 250 constant voltage until the dye front reaches the end of the gel.
  7. Expose the gel for 10 seconds on a fluorescent imager.
  8. Determine change in fluorescent signal with Alphaview or any other densitometry software.

Final Assay Conditions Per Reaction

  • rmHPSE: 500 ng
  • Cy5-HSPG: 2 pmol
