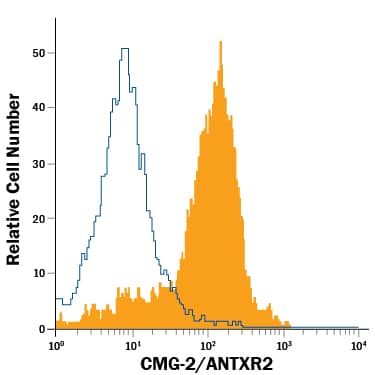

Detection of CMG‑2/ANTXR2 in Human Whole Blood Monocytes by Flow Cytometry.
Human whole blood monocytes were stained with Goat Anti-Human CMG‑2/ANTXR2 PE‑conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # FAB2940P, filled histogram) or isotype control antibody (Catalog # IC108P, open histogram). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
12 months from date of receipt, 2 to 8 °C as supplied.
Capillary Morphogenesis Gene-2 (CMG-2) is a widely expressed Anthrax Toxin Receptor (ATR) family protein (1‑3). CMG-2 is a 55 kDa type I transmembrane (TM) protein that contains a 33 amino acid (aa) signal sequence, a 284 aa extracellular domain (ECD), a 24 aa TM segment, and a 147 aa cytoplasmic domain. There are three additional isoforms. Isoform 4 shows a 12 aa insertion in the cytoplasmic region, isoform 2 shows a 103 aa deletion in the ECD, and isoform 3 is a truncated, 20 kDa, 289 aa soluble form. The main functional domain of CMG-2 is an extracellular integrin-like von Willebrand factor type A (VWA) domain with a metal ion dependent adhesion site (MIDAS). This domain adheres selectively to collagen type IV and laminin (1‑5). CMG-2 isoform 2 is induced in HUVEC as they undergo capillary formation in collagen matrices in vitro (3). CMG-2 is mutated in juvenile hyaline fibromatosis and infantile systemic hyalinosis disorders, and several of these mutations result in loss of laminin binding (6). CMG-2 and the related protein ATR/TEM8 serve as receptors for the protective antigen (PA) of Bacillus Anthracis (1, 2). After binding the VWA domain, PA undergoes furin-type cleavage, forms a heptameric receptor/PA pre-pore, and binds LF or EF toxin subunits (5, 7, 8). Transport to low pH endosomes, which requires CMG-2 ubiquitination and interaction with the LDL receptor related protein LRP6 (9, 10), allows PA pore formation and release of toxin to the cytoplasm (10, 11). Soluble CMG-2 VWA domain acts as a dummy receptor that can protect cultured cells from anthrax intoxication (2). Within the extracellular region, human CMG-2 shares 84%, 81%,89% and 93% amino acid sequence identity with mouse, rat, bovine, and canine CMG-2, respectively. CMG-2 VWA domain also shares 60% aa sequence identity with ATR/TEM8.
Scobie, H.M. and J.A.T. Young (2005) Curr. Opin. Microbiol. 8:106.
Scobie, H.M. et al. (2003) Proc. Natl. Acad. Sci. USA 100:5170.
Bell, S.E. et al. (2001) J. Cell Sci. 114:2755.
Lacy, D.B. et al. (2004) Proc. Natl. Acad. Sci. USA 101:6367.
Santelli, E. et al. (2004) Nature 430:905.
Dowling, O. et al. (2003) Am. J. Hum. Genet. 73:957.
Wigelsworth, D.J. et al. (2004) J. Biol. Chem. 279:23349.
Go, M.Y. et al. (2006) J. Mol. Biol. 360:145.
Abrami, L. et al. (2006) J. Cell Biol. 172:309.
Wei, W. et al. (2006) Cell 124:1141.
Lacy, D.B. et al. (2004) Proc. Natl. Acad. Sci. USA 101:13147.
