Lipocalin-2/NGAL (Neutrophil Gelatinase-associated Lipocalin) is a secreted carrier protein that acts in the innate immune response, differentiation, tumorigenesis, and cell survival. It is induced in macrophages, glial cells, and epithelial cells during inflammation, anemia, and hypoxia. Lipocalin-2 binds catecholate siderophores which are secreted by bacteria and are required for bacterial iron uptake. Lipocalin-2 functions as a bacteriostatic agent in the innate immune response by limiting the bacterial iron supply. Iron uptake by Lipocalin-2 into mammalian cells is important for the regulation of iron-sensitive gene transcription. In the kidney, Lipocalin-2-mediated iron trafficking is required for protection from renal injury.
Human Lipocalin-2/NGAL Quantikine QuicKit ELISA
R&D Systems | Catalog # QK1757
Loading...
Key Product Details
Assay Length
80 minutes
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 µL), Serum (10 µL), Heparin Plasma (10 µL), Saliva (10 µL), Urine (25 µL)
Sensitivity
0.033 ng/mL
Assay Range
0.313-10 ng/mL (Cell Culture Supernates, Serum, Heparin Plasma, Saliva, Urine)
Loading...
Product Summary for Human Lipocalin-2/NGAL Quantikine QuicKit ELISA
The Quantikine™ QuicKit™ Human Lipocalin-2/NGAL Immunoassay is a one step, 80-minute solid phase ELISA designed to measure human Lipocalin-2 levels in cell culture supernates, serum, heparin plasma, saliva, and urine. It contains NS0-expressed recombinant human Lipocalin-2 and antibodies raised against the recombinant protein. Results obtained using natural human Lipocalin-2 showed linear curves that were parallel to the standard curves obtained using the QuicKit standards. These results indicate that this kit can be used to determine relative mass values for natural human Lipocalin-2.
Product Specifications
Measurement
Quantitative ELISA
Detection Method
Colorimetric - 450nm (TMB)
Conjugate
HRP
Species
Human
Specificity
Natural and recombinant human Lipocalin-2.
Cross-reactivity
< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference
No significant interference observed with available related molecules.
Sample Values
| Sample Type | Mean (ng/mL) | Range (ng/mL) | Standard Deviation (ng/mL) |
| Serum (n=10) | 79.3 | 50.9-129 | 25.7 |
| Heparin Plasma (n=10) | 64.3 | 46.3-94.9 | 18.3 |
| Saliva (n=10) | 387 | 62.1-734 | 217 |
| Urine (n=10) | 11.3 | 1.18-27.9 | 9.37 |
Serum/Plasma/Saliva/Urine - Samples from apparently healthy volunteers were evaluated for the presence of human Lipocalin-2 in this assay. No medical histories were available for the donors used in this study.
Cell Culture Supernates
Human peripheral blood mononuclear cells (1 x 106 cells/mL) were cultured in RPMI supplemented with 10% fetal bovine serum, 2 mM L-glutamine, 100 U/mL penicillin, and 100 μg/mL streptomycin sulfate. Cells were cultured unstimulated or stimulated with 10 μg/mL PHA. Aliquots of the cell culture supernates were removed and assayed for levels of human Lipocalin-2.
| Condition | Day 1(ng/mL) | Day 5 (ng/mL) |
| Unstmulated | 2.59 | 5.18 |
| Stimulated | 3.28 | 4.58 |
Precision
Intra-Assay Precision (Precision within an assay) Two samples of known concentration were tested twenty times on one plate to assess intra-assay precision.
Inter-Assay Precision (Precision between assays) Two samples of known concentration were tested in ten separate assays to assess inter-assay precision. Assays were performed by at least three technicians.
Cell Culture Supernates, Heparin Plasma, Saliva, Serum, Urine
| Intra-Assay Precision | Inter-Assay Precision | |||
|---|---|---|---|---|
| Sample | 1 | 2 | 1 | 2 |
| n | 20 | 20 | 10 | 10 |
| Mean (ng/mL) | 1.01 | 6.05 | 1.11 | 6.46 |
| Standard Deviation | 0.025 | 0.261 | 0.058 | 0.379 |
| CV% | 2.5 | 4.3 | 5.2 | 5.9 |
Recovery for Human Lipocalin-2/NGAL Quantikine QuicKit ELISA
The recovery of human Lipocalin-2 spiked to three different levels in samples throughout the range of the assay in various matrices was evaluated.
| Sample Type | Average % Recovery | Range % |
|---|---|---|
| Serum (n=0) | ||
| Urine (n=2) | 102 | 89-110 |

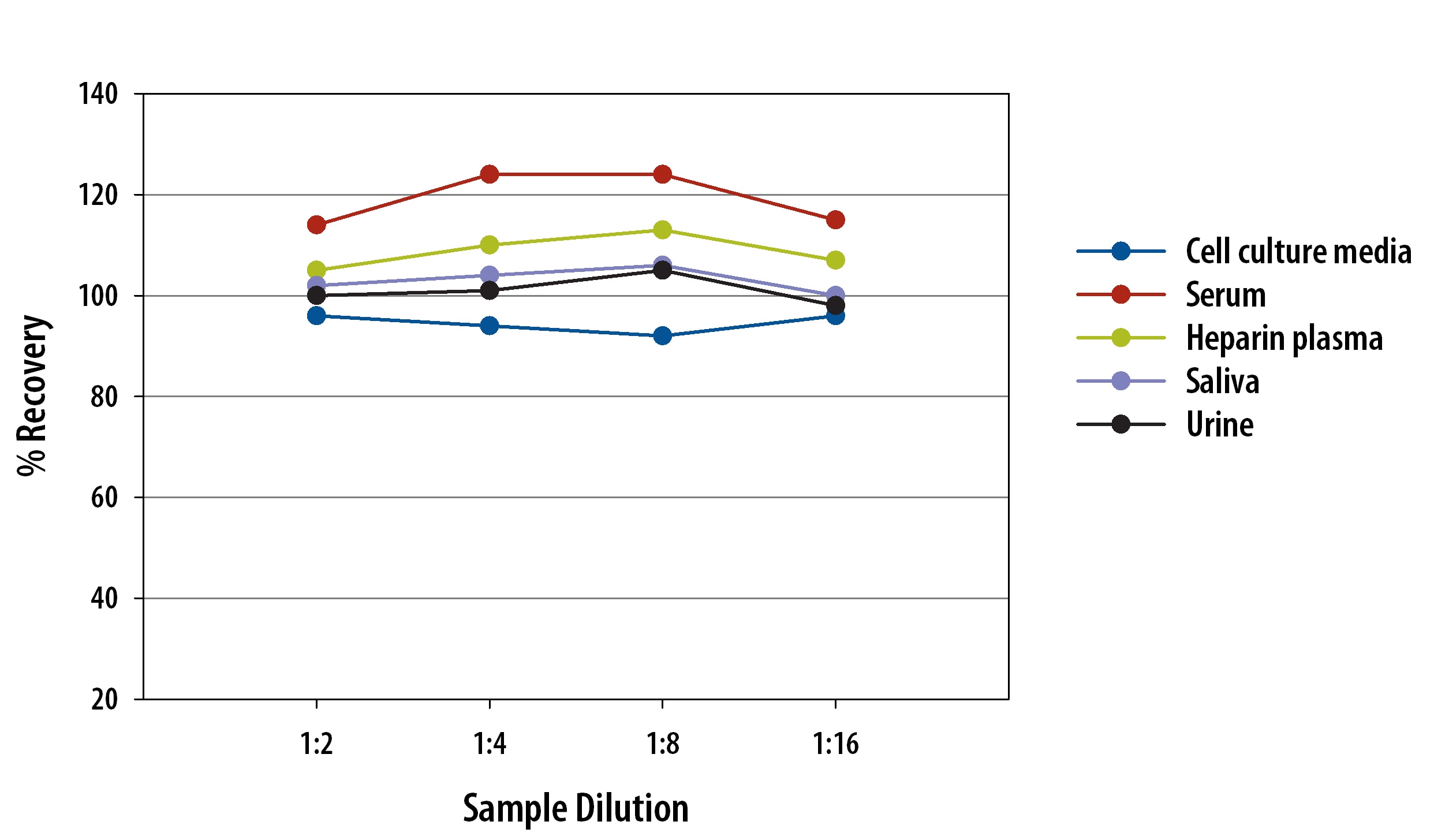

Linearity
To assess linearity of the assay, samples containing and/or spiked with high concentrations of human Lipocalin-2 in various matrices were diluted with the calibrator diluent to produce samples with values within the dynamic range of the assay.
Scientific Data Images for Human Lipocalin-2/NGAL Quantikine QuicKit ELISA
Human Lipocalin-2 Standard Curve ELISA
Preparation and Storage
Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.
Background: Lipocalin-2/NGAL
Long Name
Neutrophil Gelatinase-associated Lipocalin
Alternate Names
24p3, LCN2, Lipocalin2, MSFI, NGAL, Oncogene 24p3, p25, Siderocalin, Uterocalin
Gene Symbol
LCN2
Additional Lipocalin-2/NGAL Products
Product Documents for Human Lipocalin-2/NGAL Quantikine QuicKit ELISA
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human Lipocalin-2/NGAL Quantikine QuicKit ELISA
For research use only
