Human/Mouse Neuropilin-2 APC-conjugated Antibody


  • Species Reactivity
    Human, Mouse
  • Specificity
    Detects human Neuropilin-2 in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant rat (rr) Neuropilin-1 or rrNeuropilin-2 is observed. Detects mouse Neuropilin-2 in flow cytometry.
  • Source
    Monoclonal Mouse IgG2A Clone # 257103
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    Mouse myeloma cell line NS0-derived recombinant human Neuropilin‑2
    Gln23-Tyr855
    Accession # NP_003863
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
    Allophycocyanin
Applications
  •
    Recommended
    Concentration
    Sample
  • Flow Cytometry
    10 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples
Detection of Neuropilin‑2 in HUVEC Human Cells by Flow Cytometry. HUVEC human umbilical vein endothelial cells were stained with Mouse Anti-Human/Mouse Neuropilin‑2 APC‑conjugated Monoclonal Antibody (Catalog # FAB22151A, filled histogram) or isotype control antibody (Catalog # IC003A, open histogram). View our protocol for Staining Membrane-associated Proteins.

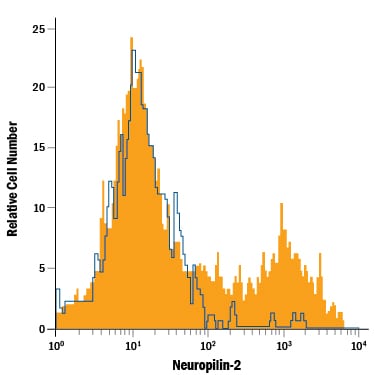

Detection of Neuropilin‑2 in bEnd.3 Mouse Cell Line by Flow Cytometry. bEnd.3 mouse endothelioma cell line was stained with Mouse Anti-Human/Mouse Neuropilin‑2 APC‑conjugated Monoclonal Antibody (Catalog # FAB22151A, filled histogram) or isotype control antibody (Catalog # IC003A, open histogram). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: Neuropilin-2

Neuropilin-2 (Npn-2) is a 120 kDa, type I transmembrane (TM) glycoprotein that is related to the semaphorin receptor Neuropilin-1 (1). Npn-2 is a complex molecule with multiple splice forms. Five transmembrane forms are known, and one 62 kDa soluble form has been identified (2). Based on the originally reported precursor size of 909 amino acids (aa), the “standard” precursor in human will have a 20 aa signal sequence, an 842 aa extracellular region, a 25 aa TM segment, and a 42 aa cytoplasmic tail (1). The extracellular region contains two N-terminal CUB (C1r/Ugef/BMP-1) domains, two jellyroll-shaped coagulation factor V type C domains, and a juxtamembrane MAM (Meprin/A-5 protein/tyrosine phosphatase Mu) domain (1, 3). The CUB and factor V domain are involved in VEGF and semaphorin binding. The MAM domain appears necessary for signaling through plexin-1 (4). The five transmembrane isoforms all share the same CUB, factor V and MAM domains. Splicing begins at aa 809, seven amino acids after the end of the MAM domain, and it involves the end of the extracellular region, the TM segment, and the cytoplasmic domain (a total of 101 aa). Two of the four variants show a complete replacement of these 101 aa with a totally unrelated stretch of approximately 90 aa. This creates a new TM and cytoplasmic tail. These forms are called “Npn-2b” forms. Two other isoforms (plus the standard 909 aa form) retain the 101 aa stretch, and add either 17 or 22 aa to the end of the extracellular region. These forms are called “Npn-2a” forms. The isoform offered by R&D Systems is the “a” form with the 17 aa addition. This isoform shows 94% aa identity to the equivalent regions in mouse and rat Npn-2. The soluble form of Npn-2 is 555 aa in precursor length, and contains the two CUB domains plus the first 1½ factor V type C domains (1). Npn-2 binds Sema3B through F, and VEGF isoforms 165, 145, PlGF-2 and VEGF-C (5). It is known to form homodimers and heterodimers with Npn-1, and it forms receptor complexes with plexin-1 and VEGFR1 (4, 5). Npn-2 is found on a variety of cell types including neurons (motor, autonomic, sensory), vascular endothelial cells, Schwann cells and pancreatic acinar cells.

  • References:
    1. Chen, H. et al. (1997) Neuron 19:547.
    2. Rossignol, M. et al. (2000) Genomics 70:211.
    3. He, Z. and M. Tessier-lavigne (1997) Cell 90:739.
    4. Nakamura, F. and Y. Goshima (2002) Adv. Exp. Med. Biol. 515:55.
    5. Neufeld, G. et al. (2002) Adv. Exp. Med. Biol. 515:81.
  • Entrez Gene IDs:
    8828 (Human); 18187 (Mouse); 81527 (Rat)
  • Alternate Names:
    MGC126574; neuropilin 2; Neuropilin2; Neuropilin-2; neuropilin-2a(22); neuropilin-2b(0); NP2; NPN 2; NPN2; PRO2714; receptor for VEGF165 and semaphorins class3; Vascular endothelial cell growth factor 165 receptor 2; vascular endothelial growth factor-165 receptor 2; VEGF1265R2; VEGF165R2neuropilin-2a(17)
