Human/Mouse TREM2 PE‑conjugated Antibody

R&D Systems | Catalog # FAB17291P

R&D Systems

Key Product Details

Species Reactivity

Validated:

Human, Mouse

Cited:

Human, Mouse, Transgenic Mouse

Applications

Validated:

Flow Cytometry

Cited:

Flow Cytometry

Label

Phycoerythrin (Excitation = 488 nm, Emission = 565-605 nm)

Antibody Source

Monoclonal Rat IgG2B Clone # 237920
View all TREM2 Primary Antibodies »

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse TREM-2
extracellular domain
Accession # Q99NH8

Specificity

Detects human and mouse TREM-2 in direct ELISAs and Western blots. Stains TREM-2 transfectants but not TREM-1 transfectants.

Clonality

Monoclonal

Host

Rat

Isotype

IgG2B

Scientific Data Images for Human/Mouse TREM2 PE‑conjugated Antibody

Detection of TREM-2 antibody in RAW 264.7 Mouse Cell Line antibody by Flow Cytometry.

Detection of TREM‑2 in RAW 264.7 Mouse Cell Line by Flow Cytometry.

RAW 264.7 mouse monocyte/macrophage cell line was stained with Rat Anti-Human/Mouse TREM-2 PE-conjugated Monoclonal Antibody (Catalog # FAB17291P, filled histogram) or isotype control antibody (Catalog # IC013P, open histogram). View our protocol for Staining Membrane-associated Proteins.

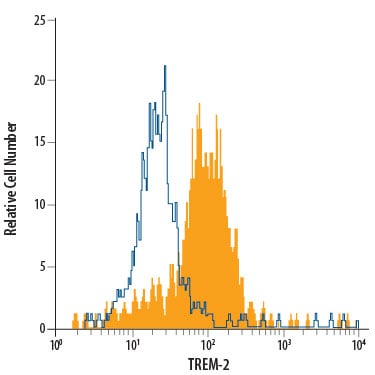

Detection of TREM-2 antibody in Human Blood Monocytes antibody by Flow Cytometry.

Detection of TREM‑2 in Human Blood Monocytes by Flow Cytometry.

Human peripheral blood monocytes were stained with Rat Anti-Human/Mouse TREM-2 PE-conjugated Monoclonal Antibody (Catalog # FAB17291P, filled histogram) or isotype control antibody (Catalog # IC013P, open histogram). View our protocol for Staining Membrane-associated Proteins.

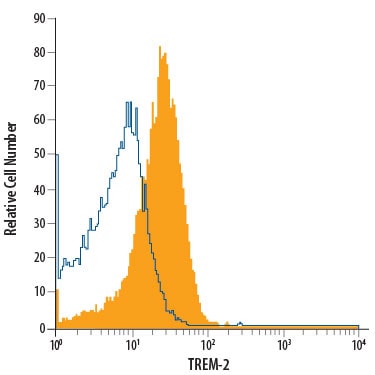

Detection of TREM-2 antibody in THP-1 Human Cell Line antibody by Flow Cytometry.

Detection of TREM‑2 in THP‑1 Human Cell Line by Flow Cytometry.

THP-1 human acute monocytic leukemia cell line was stained with Rat Anti-Human/Mouse TREM-2 PE-conjugated Monoclonal Antibody (Catalog # FAB17291P, filled histogram) or isotype control antibody (Catalog # IC013P, open histogram). View our protocol for Staining Membrane-associated Proteins.

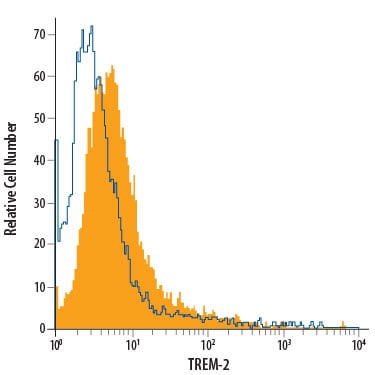

Detection of TREM-2 antibody in Human Mature Dendritic Cells antibody by Flow Cytometry.

Detection of TREM‑2 in Human Mature Dendritic Cells by Flow Cytometry.

Human mature dendritic cells were stained with Rat Anti-Human/Mouse TREM-2 PE-conjugated Monoclonal Antibody (Catalog # FAB17291P, filled histogram) or isotype control antibody (Catalog # IC013P, open histogram). View our protocol for Staining Membrane-associated Proteins.

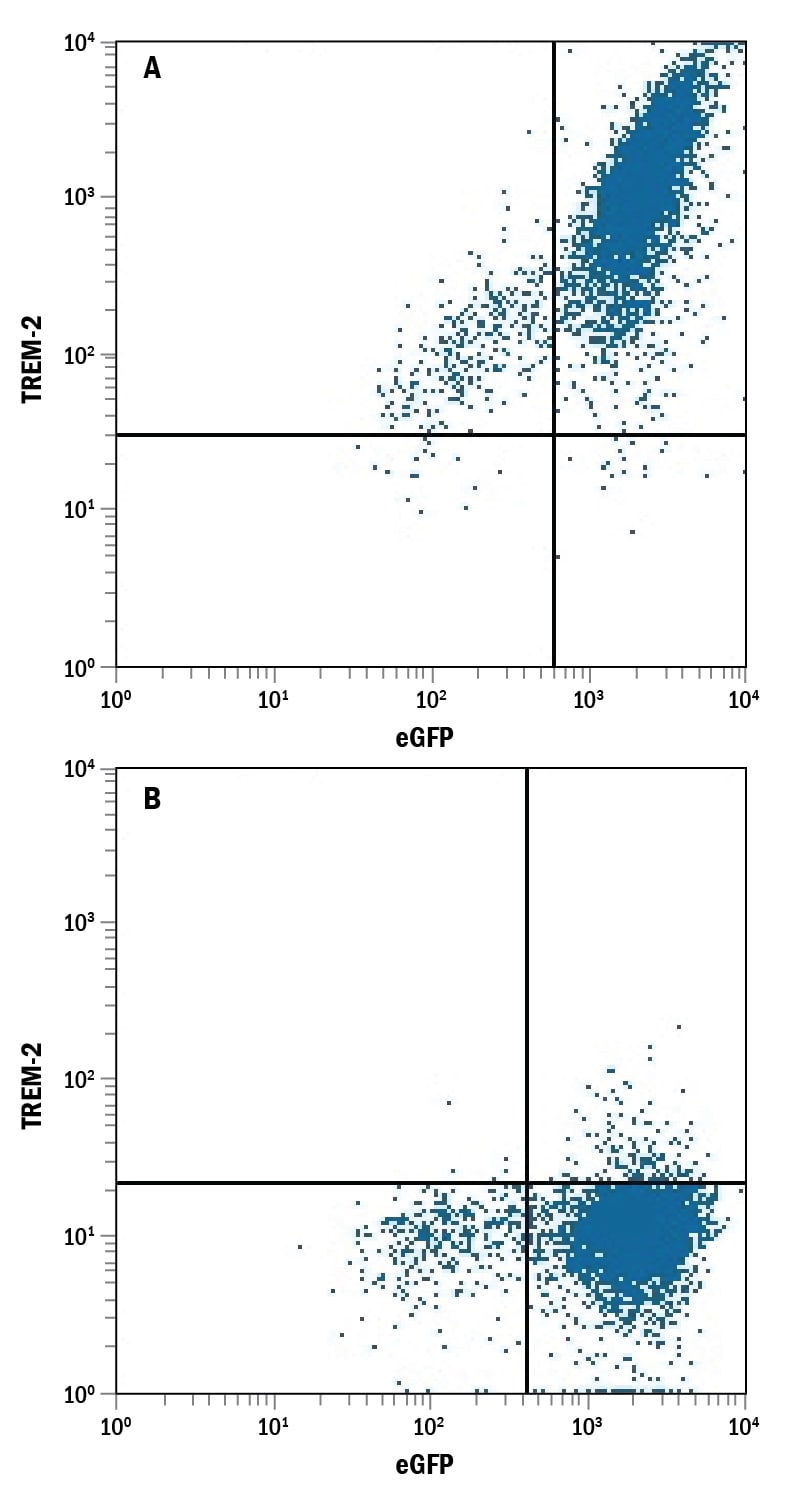

Detection of TREM-2 antibody in HEK293 Human Cell Line Transfected with eGFP and either Human TREM-2 or Human TREM-1 antibody by Flow Cytometry.

Detection of TREM‑2 in HEK293 Human Cell Line Transfected with eGFP and either Human TREM-2 or Human TREM-1 by Flow Cytometry.

HEK293 human embryonic kidney cell line transfected with eGFP and either (A) human TREM-2 or (B) human TREM-1 was stained with Rat Anti-Human/Mouse TREM-2 PE-conjugated Monoclonal Antibody (Catalog # FAB17291P). Quadrant markers were set based on control antibody staining (Catalog # IC013P). View our protocol for Staining Membrane-associated Proteins.

Applications for Human/Mouse TREM2 PE‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: RAW 264.7 mouse monocyte/macrophage cell line, human peripheral blood monocytes, THP‑1 human acute monocytic leukemia cell line, human mature dendritic cells, and HEK293 human embryonic kidney cell line transfected with eGFP and either human TREM-2 or human TREM-1

Reviewed Applications

Read 1 review rated 5 using FAB17291P in the following applications:

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.
Protect from light.

Background: TREM2

TREM-2 (Triggering Receptor Expressed on Myeloid cells-2) is a 35 kDa molecular weight type I transmembrane member of the TREM family and Ig superfamily. Mature human TREM-2 consists of a 156 amino acid (aa) extracellular domain (ECD) with one V-type Ig-like domain, a 21 aa transmembrane (TM) domain, and a 35 aa cytoplasmic tail. Within the ECD, human TREM-2 shares 73% and 74% aa sequence identity with mouse and rat TREM-2, respectively. Two closely related transcripts were reported in mouse and designated TREM-2a and TREM-2b. Soluble forms of the TREM-2 ECD are generated by alternative splicing or proteolytic cleavage, and the cytoplasmic domain can be liberated by gamma-Secretase mediated intramembrane cleavage. It is a pattern recognition receptor that binds anionic ligands. A positively charged lysine within the transmembrane segment allows association with the signal adapter protein, DAP12 to deliver an activating signal that plays a role in both innate and adaptive immune responses, including inhibition of macrophage activation. TREM-2 is expressed on macrophages, immature myeloid dendritic cells, osteoclasts, microglia, and adipocytes. It promotes the differentiation and function of osteoclasts, the production of inflammatory cytokines by adipocytes, insulin resistance, and the phagocytic clearance of bacteria. In the CNS, TREM-2 binds to ApoE, ApoA1, and ApoB and mediates the clearance of apoptotic neurons, amyloid plaques, and cell debris following demyelination. TREM-2 also interacts with and modifies signaling through Plexin A1 on dendritic cells and osteoclasts. Mutations in TREM-2 or DAP12 are associated with the development of Alzheimer's disease and Nasu-Hakola disease (NHD/PLOSL) which is characterized by presenile dementia and bone cysts. Soluble TREM-2 is elevated in cerebrospinal fluid of patients with active multiple sclerosis (MS), and TREM-2 blockade exacerbates disease symptoms in the experimental EAE model of MS.

Long Name

Triggering Receptor Expressed on Myeloid Cells 2

Alternate Names

PLOSL2, TREM-2

Entrez Gene IDs

54209 (Human); 102133279 (Cynomolgus Monkey)

Gene Symbol

TREM2

UniProt

Q99NH8 (Mouse)

Additional TREM2 Products

Product Documents for Human/Mouse TREM2 PE‑conjugated Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Human/Mouse TREM2 PE‑conjugated Antibody

For research use only

Citations for Human/Mouse TREM2 PE‑conjugated Antibody

Customer Reviews for Human/Mouse TREM2 PE‑conjugated Antibody (1)

5 out of 5
1 Customer Rating
5 Stars
100%
4 Stars
0%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Human/Mouse TREM2 PE‑conjugated Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 1 of 1 review Showing All
Filter By:
Clear Filters X
  • Human/Mouse TREM2 PE-conjugated Antibody
    Name: Anonymous
    Application: Flow Cytometry
    Sample Tested: monocyte-derive M2c macrophages
    Species: Human
    Verified Customer | Posted 08/21/2024

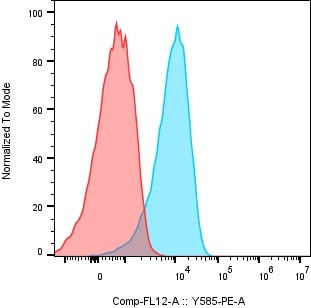

    TREM2 expression on human monocyte-derived M2c macrophages. The cells were treated with 1 μg/ml of the TREM2 PE antibody (catalogue # FAB17291P) (blue) or rat IgG2b PE isotype control antibody (red)
    Human/Mouse TREM2 PE‑conjugated Antibody FAB17291P

There are no reviews that match your criteria.

Showing  1 - 1 of 1 review Showing All

FAQs for Human/Mouse TREM2 PE‑conjugated Antibody

Showing  1 - 1 of 1 FAQ Showing All

    • Q: What type of light chain does the Human/Mouse TREM-2 Antibody, Cat# MAB17291, clone # 237920 have?
      A: This antibody has a kappa light chain.
