Human TIM-1/KIM-1/HAVCR PE-conjugated Antibody

Clone 219211 was used by HLDA to establish CD designation
Catalog # Availability Size / Price Qty
FAB1750P
Human TIM-1/KIM-1/HAVCR PE-conjugated Antibody in Flow Cytometry
1 Image
Product Details
Citations (1)
FAQs
Supplemental Products
Reviews

Human TIM-1/KIM-1/HAVCR PE-conjugated Antibody Summary

Species Reactivity
Human
Specificity
Detects human TIM‑1/KIM-1/HAVCR in direct ELISAs and Western blots. Does not cross-react with recombinant mouse (rm) TIM-1, rmTIM-2, or rhTIM-3.
Source
Monoclonal Mouse IgG2B Clone # 219211
Purification
Protein A or G purified from hybridoma culture supernatant
Immunogen
Mouse myeloma cell line NS0-derived recombinant human TIM‑1/KIM-1/HAVCR
Ser21-Thr288
Accession # AAC39862
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Label
Phycoerythrin (Excitation= 488 nm, Emission= 565-605 nm)

Applications

Recommended Concentration
Sample
Flow Cytometry
10 µL/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Data Example

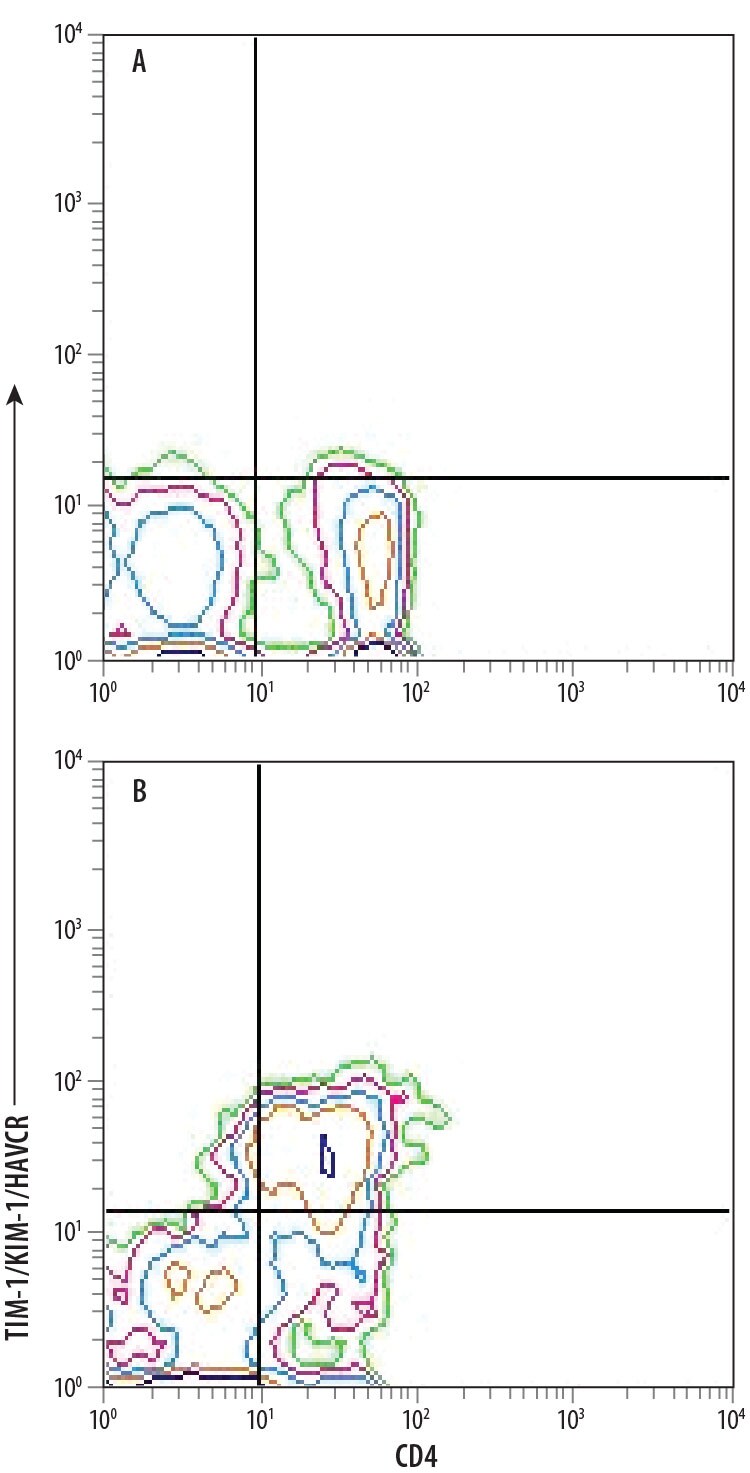

Flow Cytometry Detection of TIM-1/KIM-1/HAVCR in Th2-stimulated Human PBMCs by Flow Cytometry. View Larger

Detection of TIM-1/KIM-1/HAVCR in Th2-stimulated Human PBMCs by Flow Cytometry. (A) Unstimulated and (B) Th2-stimulated human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human TIM-1/KIM-1/HAVCR PE-conjugated Monoclonal Antibody (Catalog # FAB1750P) and Mouse Anti-Human CD4 APC-conjugated Monoclonal Antibody (Catalog # FAB3791A). Quadrant markers were set based on control antibody staining (Catalog # IC0041P). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: TIM-1/KIM-1/HAVCR

TIM-1 (T cell-immunoglobulin-mucin; also KIM-1 and HAVcr-1) is a 100 kDa, type I transmembrane glycoprotein member of the TIM family of immunoglobulin superfamily molecules (1-3). This gene family is involved in the regulation of Th1 and Th2-cell-mediated immunity. Human TIM-1 is synthesized as a 359 amino acid (aa) precursor that contains a 20 aa signal sequence, a 270 aa extracellular domain (ECD), a 21 aa transmembrane segment and a 48 aa cytoplasmic domain (4-6). The ECD contains oneV-type Ig-like domain and a mucin region characterized by multiple PTTTTL motifs. The mucin region undergoes extensive O-linked glycosylation. The TIM-1 gene is highly polymorphic and undergoes alternate splicing (1). For instance, the presence of a six aa sequence (MTTTVP) at position #137 of the mature molecule is associated with protection from atopy in people with a history of hepatitis A (7, 8). There are two cytoplasmic alternate splice forms of TIM‑1. One is a long (359 aa) kidney form termed TIM-1b, and one is a short (334 aa) liver form termed TIM-1a. Both are identical through the first 323 aa of their precursors. TIM-1b contains a tyrosine phosphorylation motif that is not present in 1a (6). TIM-1 is also known to circulate as a soluble form. Constitutive cleavage by an undefined MMP (possibly ADAM33) releases an 85 - 90 kDa soluble molecule (6). The ECD of human TIM-1 is 50% and 43% aa identical to mouse and canine TIM-1 ECD, respectively. The only two reported ligands for TIM-1 are TIM-4 and the hepatitis A virus (4, 9). However, others are believed to exist, and based on the ligand for TIM-3, one may well be an S-type lectin (10). TIM-1 ligation induces T cell proliferation and promotes cytokine production (1, 10).

References
  1. Meyers, J.H. et al. (2005) Trends Mol. Med. 11:1471.
  2. Kuchroo, V.K. et al. (2003) Nat. Rev. Immunol. 3:454.
  3. Mariat, C. et al. (2005) Phil. Trans. R. Soc. B 360:1681.
  4. Feigelstock, D. et al. (1998) J. Virol. 72:6621.
  5. Ichimura, T. et al. (1998) J. Biol. Chem. 273:4135.
  6. Bailly, V. et al. (2002) J. Biol. Chem. 277:39739.
  7. Umetsu, D.T. et al. (2005) J. Pediatr. Gastroenterol. Nutr. 40:S43.
  8. Gao, P-S. et al. (2005) J. Allergy Clin. Immunol. 115:982.
  9. Zhu, C. et al. (2005) Nat. Immunol. 6:1245.
  10. Meyers, J.H. et al. (2005) Nat. Immunol. 6:455.
Long Name
T Cell Immunoglobulin Mucin-1
Entrez Gene IDs
26762 (Human); 171283 (Mouse); 286934 (Rat); 102141332 (Cynomolgus Monkey)
Alternate Names
CD365; HAVCR1; HAVCR-1; HAVCRT cell immunoglobin domain and mucin domain protein 1; hepatitis A virus cellular receptor 1; Kidney injury molecule 1; KIM1; KIM-1; T-cell immunoglobulin and mucin domain-containing protein 1; TIM1; TIM-1; TIM-1TIM; TIM1TIMD-1; TIMD1T-cell membrane protein 1

Product Datasheets

Citation for Human TIM-1/KIM-1/HAVCR PE-conjugated Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. TIM-1 As a Signal Receptor Triggers Dengue Virus-Induced Autophagy
    Authors: LW Chu, CJ Yang, KJ Peng, PL Chen, SJ Wang, YH Ping
    Int J Mol Sci, 2019;20(19):.
    Species: Human
    Sample Types: Whole Cells
    Applications: Confocal Microscopy
