Janelia Fluor® 635b, NHS ester

Tocris Bioscience | Catalog # 8157

Blinking fluorescent dye (Reactive group: NHS ester). Application: super resolution microscopy (SRM) including SMLM
Tocris Bioscience

Key Product Details

Description

Blinking fluorescent dye (Reactive group: NHS ester). Application: super resolution microscopy (SRM) including SMLM

Wavelength

Excitation = 654 nm, Emission = 671 nm
View all Amine-Reactive Janelia Fluor Dyes »

Product Description

Spontaneously Blinking Janelia Fluor® Dyes allow facile single-molecule localization microscopy (SMLM) in cells and dense biomolecular structures, without the need for photoactivation or redox buffers. These spontaneously blinking dyes harness Janelia Fluor® technology to deliver dyes that automatically cycle between 'off' and 'on' states with an ideal duty cycle for super resolution microscopy experiments.

Key Information: Janelia Fluor® 635b, NHS ester is a spontaneously blinking fluorescent dye, supplied with an NHS ester reactive group for the labeling of primary amines. Suitable for DNA labelling using amine-terminated oligonucleotides. Also used to label oligonucleotides for super-resolution assays of transposase-accessible chromatin (ATAC-SMLM).

Application: suitable for super resolution microscopy (SRM) including single-molecule localization microscopy (SMLM).

Properties and Photophysical Data: derived from Janelia Fluor® 635, SE (Cat. No. 6419). Excitation and emission maxima (λ) are 654 nM and 671 nM, respectively.

Janelia Fluor® is a registered trademark of Howard Hughes Medical Institute.

Scientific Data Images for Janelia Fluor® 635b, NHS ester

MEF cells labelled with Janelia Fluor 635b, NHS ester

Application of Janelia Fluor® 635b, NHS ester.

SMLM RNA-FISH image of mouse embryo fibroblast cells expressing MS2 in the 3′UTR of the beta-actin gene and labeled with Janelia Fluor® 635b-oligonucleotide from Janelia Fluor® 635b, NHS ester; scale bar: 5 μm. Image kindly provided by Luke D. Lavis, Janelia Research Campus. For more information on this work read Luke D. Lavis et al (2024) A series of spontaneously blinking dyes for super-resolution microscopy. ACS Chem.Biol. bioRxiv. PMID: 38766149
Application of Janelia Fluor® 635b, NHS ester.

Application of Janelia Fluor® 635b, NHS ester.

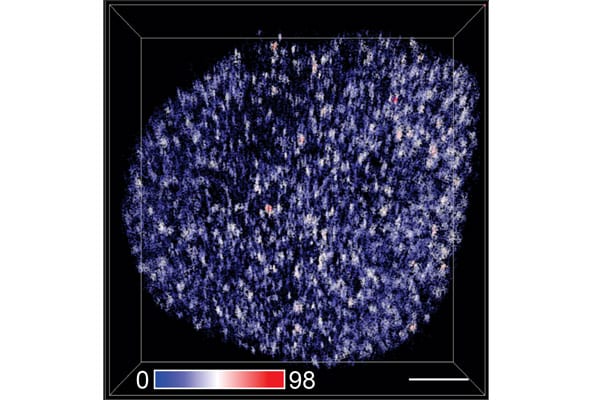

Representative 3D ATAC–SMLM rendering of accessible chromatin localizations in wild-type mouse embryonic stem (mES) cells using oligonucleotide probes labeled with Janelia Fluor® 635b, NHS ester; the color-coded localization density was calculated with a canopy radius of 250 nm; scale bars: 2 μm. Image kindly provided by Luke D. Lavis, Janelia Research Campus. For more information on this work read Luke D. Lavis et al (2024) A series of spontaneously blinking dyes for super-resolution microscopy. ACS Chem.Biol. bioRxiv. PMID: 38766149

Licensing Information

Sold under license from the Howard Hughes Medical Institute, Janelia Research Campus

Optical Data

Janelia Fluor<sup>®</sup> 635b, NHS ester Dye Spectra
λabs 654 nm
λem 671 nm

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Product Specifications for Janelia Fluor® 635b, NHS ester

Molecular Weight

615.71

Formula

C33H31F2N3O5Si

Storage

Store at -20°C

Purity

≥90% (HPLC)

Chemical Name

2,5-Dioxopyrrolidin-1-yl 3,7-bis(3-fluoroazetidin-1-yl)-5,5-dimethyl-3'H,5H-spiro[dibenzo[b,e]siline-10,1'-isobenzofuran]-6'-carboxylate

InChI Key

VNVYFQFCQSHREC-UHFFFAOYSA-N

SMILES

C[Si]1(C)C2=CC(N3CC(F)C3)=CC=C2C4(OCC5=C4C=C(C(ON6C(CCC6=O)=O)=O)C=C5)C7=CC=C(N8CC(F)C8)C=C71

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Calculators

Calculate the mass, volume, or concentration required for a solution.

=
x
x
g/mol

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Calculate the dilution required to prepare a stock solution.

x
=
x

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷
