Mouse Plexin B2 APC‑conjugated Antibody

R&D Systems | Catalog # FAB6836A

R&D Systems
Discontinued Product
FAB6836A has been discontinued. View all Plexin B2 products.

Key Product Details

Species Reactivity

Mouse

Applications

Flow Cytometry

Label

Allophycocyanin (Excitation = 620-650 nm, Emission = 660-670 nm)

Antibody Source

Monoclonal Rat IgG2A Clone # 772417
Loading...

Product Specifications

Immunogen

Chinese hamster ovary cell line CHO-derived recombinant mouse Plexin B2
Leu20-Trp1029
Accession # B2RXS4

Specificity

Detects mouse Plexin B2 in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant human Plexin B2 is observed.

Clonality

Monoclonal

Host

Rat

Isotype

IgG2A

Scientific Data Images for Mouse Plexin B2 APC‑conjugated Antibody

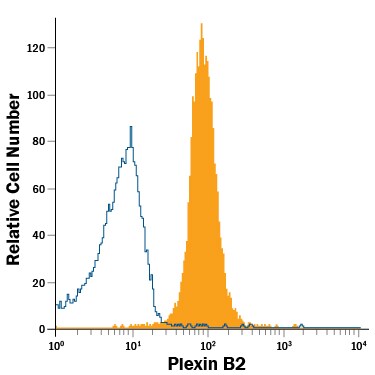

Detection of Plexin B2 antibody in D3 Mouse Cell Line antibody by Flow Cytometry.

Detection of Plexin B2 in D3 Mouse Cell Line by Flow Cytometry.

D3 mouse embryonic stem cell line was stained with Rat Anti-Mouse Plexin B2 APC-conjugated Monoclonal Antibody (Catalog # FAB6836A, filled histogram) or isotype control antibody (Catalog # IC006A, open histogram). View our protocol for Staining Membrane-associated Proteins.

Applications for Mouse Plexin B2 APC‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: D3 mouse embryonic stem cell line

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8° C. Do not use past expiration date. Protect from light.

Background: Plexin B2

Plexin B2 is a 240-250 kDa type I transmembrane (TM) glycoprotein that belongs to the Plexin family, Plexin B subfamily of semaphorin receptors (1, 2). The mouse Plexin B2 cDNA encodes 1842 amino acids (aa) that include a 19 aa signal sequence, a 1182 aa extracellular domain (ECD), a 21 aa TM domain, and a 620 aa cytoplasmic region. The ECD contains one semaphorin domain (aa 20‑468) and three IPT repeats (aa 806‑1096). The ECD may be cleaved into two subunits, a 170 kDa alpha ‑chain (aa 20‑1168) and an 80 kDa TM beta ‑chain, that remain noncovalently linked (1). Multiple splice variants may exist. Within aa 20‑1029 in the ECD, mouse Plexin B2 shares 82%, 93%, 80% and 79% aa identity with human, rat, canine and bovine Plexin B2, respectively. The B Plexins (B1, B2 and B3) share approximately 40% aa identity with each other. Plexin B2 mRNA is expressed in proliferating cerebellar granule cell progenitors, neuroepithelium, developing neurons, growth plate chondrocytes, tooth bud inner enamel epithelium, glomeruli and mesenchyme of the developing kidney, macrophages plus plasmacytoid dendritic cells, and in germinal center B lymphocytes when T cell help is present (3‑9). Plexin B2 is often co‑expressed with Plexin B1, and the two may form heterodimers (1, 4, 6). Genetic deletion of mouse Plexin B2 results in defects in proliferation and migration of cerebellar granule cells, abnormal development of the neural tube and disorganization of the embryonic brain; these defects are not seen when Plexin B1 is deleted (10‑12). In adults, Plexin B2 is expressed in specialized vascular endothelia, pancreatic islets of Langerhans, and adrenal glands (13). Plexin B2 serves as a receptor for type 4 semaphorins, especially Sema4C and Sema4G (8‑14). B Plexins, including Plexin B2, can bind the scatter factor receptors, Met and Ron, and activate them upon semaphorin engagement (1, 15).

References

  1. Artigiani, S. et al. (2003) J. Biol. Chem. 278:10094.
  2. Malik, M.F. et al. (2014) Histol. Histopathol. 29:151.
  3. Friedel, R.H. et al. (2007) J. Neurosci. 27:3921.
  4. Worzfeld, T. et al. (2004) Eur. J. Neurosci. 19:2622.
  5. Zhang, M. et al. (2008) Bone 43:511.
  6. Perala, N.M. et al. (2005) Gene Expr. Patterns 5:355.
  7. Yu, D. et al. (2008) Immunol. Cell Biol. 86:3.
  8. Luque, M.C. et al. (2015) Mol. Immunol. 67:559.
  9. Holl, E.K.et al. (2012) PLoS ONE 7:e43333.
  10. Deng, S. et al. (2007) J. Neurosci. 27:6333.
  11. Hirschberg, A. et al. (2010) Mol. Cell. Biol. 30:764.
  12. Maier, V. et al. (2011) Mol. Cell. Neurosci. 46:419.
  13. Zielonka, M. et al. (2010) Exp. Cell Res. 316:2477.
  14. Yukawa, K. et al. (2010) Int. J. Mol. Med. 25:225.
  15. Conrotto, P. et al. (2004) Oncogene 23:5131.

Alternate Names

MM1, PLEXB2, PLXNB2

Entrez Gene IDs

23654 (Human); 140570 (Mouse); 315217 (Rat)

Gene Symbol

PLXNB2
