Recombinant Coliphage K5 Lyase His-tag Protein, CF

R&D Systems | Catalog # 11384-K5

R&D Systems
100% Guarantee

Key Product Details

  • R&D Systems E. coli-derived Recombinant Coliphage K5 Lyase His-tag Protein (11384-K5)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

E. coli

Accession Number

YP_654147.1

Applications

Enzyme Activity
View all Coliphage K5 Lyase Proteins and Enzymes »

Product Specifications

Source

E. coli-derived Coliphage K5 Lyase protein
Ala2-Lys632 with a N-terminal Met and 6-His tag

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<1.0 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Met

Predicted Molecular Mass

68 kDa

SDS-PAGE

54-60 kDa, under reducing conditions.

Activity

Measured by its ability to cleave the repeating disaccharide of Heparan Sulfate.
Recombinant K5 Lyase will cleave >80% Cy5-labeled HSPG (Catalog # GL402), as measured under the described conditions.

Scientific Data Images for Recombinant Coliphage K5 Lyase His-tag Protein, CF

Recombinant Coliphage K5 Lyase His-tag Protein Enzyme Activity Diagram.

Recombinant Coliphage K5 Lyase His-tag Protein (Catalog # 11384-K5) has specificity for the repeating disaccharide [-4)-GlcA-beta (1,4)-GlcNAc-alpha (1-] of heparosan, which is similar to heparin and heparan sulfate.

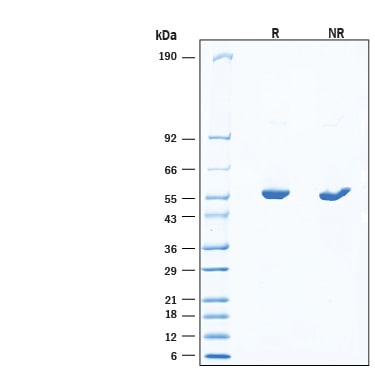

Recombinant Coliphage K5 Lyase His-tag Protein SDS-PAGE.

2 μg/lane of Recombinant Coliphage K5 Lyase His-tag Protein (Catalog # 11384-K5) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 54-60 kDa under reducing conditions.

Recombinant Coliphage K5 Lyase His-tag Protein Enzyme Activity.

Using Cy5-labeled Heparan Sulfate Proteoglycan (Cy5-HSPG) (GL402) as a substrate Recombinant Coliphage K5 Lyase Protein, CF (Catalog # 11384-K5) cleaves intact heparan sulfate proteoglycans into heparan sulfate (HS) oligos. SDS-PAGE gel was imaged using the red fluorescent channel.

Formulation, Preparation, and Storage

11384-K5
Formulation Supplied as a 0.2 μm filtered solution in Tris, NaCl and DTT.
Shipping The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Background: Coliphage K5 Lyase

Recombinant Coliphage K5 Lyase His-tag (K5 Lyase) is a viral tail spike protein from the K5A bacteriophage that infects the K5 strain of Escherichia coli (1). The overall structure of mature K5 Lyase comprises a trimer of three identical monomers with the monomers aligned and intertwined at the carboxyl‑terminal domain. Each monomer consists of a small N‑terminal alpha ‑helical domain, a central single-stranded, right-handed beta -helix domain, and a C‑terminal beta ‑prism/triple-stranded beta -helix domain (2). K5 Lyase is specifically active on heparosan, a glycosaminoglycan with the repeating disaccharide [-4)-GlcA-beta (1,4)-GlcNAc-alpha (1-], that comprises the polysaccharide capsule of E. coli that must be degraded by the virus to permit penetration of the capsule (3). The strict specificity of K5 Lyase means it does not recognize hyaluronan, an isomer of the K5 polysaccharide, and is only capable of cleaving alpha 1‑4 (not beta 1‑4) hexosaminidic linkages (4). K5 Lyase is of particular interest in the field of heparin and heparan sulfate glycobiology because both glycans contain the same core linear disaccharide structure of heparosan with varying sulfation. As heparin and heparan sulfate play important roles in blood coagulation, cell proliferation, and development (5,6), K5 lyase can be used as an enzymatic tool to cleave and modulate these important glycans. The activity of K5 Lyase is demonstrated in an electrophoretic gel mobility shift assay using Cy5‑Labeled Heparan Sulfate Proteoglycan.

References

  1. Hanfling, P. et al. (1998) J. Bact. 178:4747.
  2. Thompson, J.E. et al. (2010) J. Bio. Chem. 285:23963.
  3. O' Leary, T.R. et al. (2013) Glycobiology. 23:132.
  4. Murphy, K.J. et al. (2004) J. Bio. Chem. 279:27239.
  5. Linhardt, R.J. et al. (2003) J. Med. Chem. 46:2551.
  6. Chen, J. et al. (2007) Chem. & Biol. 9:986.

Long Name

Coliphage K5 Lyase

Alternate Names

K5A Lyase

UniProt

YP_654147.1

Additional Coliphage K5 Lyase Products

Product Documents for Recombinant Coliphage K5 Lyase His-tag Protein, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Recombinant Coliphage K5 Lyase His-tag Protein, CF

For research use only

Customer Reviews for Recombinant Coliphage K5 Lyase His-tag Protein, CF

There are currently no reviews for this product. Be the first to review Recombinant Coliphage K5 Lyase His-tag Protein, CF and earn rewards!

Have you used Recombinant Coliphage K5 Lyase His-tag Protein, CF?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Protocols

View specific protocols for Recombinant Coliphage K5 Lyase His-tag Protein, CF (11384-K5):

Materials
  • Assay Buffer: 50 mM Sodium Acetate, pH 4.5
  • Recombinant Coliphage K5 Lyase His-tag (rC. K5 Lyase) (Catalog # 11384-K5)
  • Cy5-labeled Heparan Sulfate Proteoglycan (Cy5-HSPG) (Catalog # GL402)
  • 15% SDS-PAGE
  • Gel loading dye
  • Gel Imager with Cy5 fluorescent dye detection capability
  1. Dilute rC. K5 Lyase to 100 µg/mL with Assay Buffer.
  2. Dilute Cy5-HSPG to 0.2 µM with Assay Buffer.
  3. For reaction, combine 10 µL of rC. K5 Lyase and 10 µL of Cy5-HSPG. For a control, combine 10 µL of Assay Buffer and 10 µL of Cy5-HSPG.
  4. Incubate reaction and control at 37 °C for 60 minutes.
  5. Add gel loading dye to each tube.
  6. Load half the volume of each reaction and control onto a 15% SDS-PAGE gel. Let samples migrate at least 80% down the gel before stopping.
  7. Acquire gel image and determine percent cleavage.

  % Cleavage = [ 1 - (Intensity of uncleaved Cy5-HSPG) ] x 100
 Total Control Intensity


Per Reaction:

  • rC. K5 Lyase: 1 µg
  • Cy5-HSPG: 2 pmol
