Recombinant Human CD300e Fc Chimera Alexa Fluor® 488 Protein

Catalog # Availability Size / Price Qty
Flow cytometry analysis for Recombinant Human CD300e/LMIR6 Fc Chimera Alexa Fluor® 488 staining on anti-human CD300e/LMIR6 Monoclonal Antibody conjugated beads.
2 Images
Product Details

Recombinant Human CD300e Fc Chimera Alexa Fluor® 488 Protein Summary

Product Specifications

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<1.0 EU per 1 μg of the protein by the LAL method.
Measured by flow cytometry for its ability to bind anti-Human CD300e/LMIR6 Monoclonal Antibody conjugated beads.The concentration of Recombinant Human CD300e/LMIR6 Chimera Alexa Fluor® 488 (Catalog# AFG10479) that produces 50% of the binding response is 3.00‑60.0 ng/mL.
Human embryonic kidney cell, HEK293-derived human CD300e/LMIR6 protein
Human CD300e/LMIR6
Accession # Q496F6.2
N-terminus C-terminus
Accession #
N-terminal Sequence
Structure / Form
Disulfide-linked homodimer
Labeled with Alexa Fluor® 488
Excitation Wavelength: 488 nm
Emission Wavelength: 515­-545 nm
Predicted Molecular Mass
44 kDa
45-58 kDa and 106-125 kDa (non-reducible dimer), under reducing conditions.

Product Datasheets


Formulation Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein.
Shipping The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after opening.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Data Images

Flow Cytometry Flow cytometry analysis for Recombinant Human CD300e/LMIR6 Fc Chimera Alexa Fluor® 488 staining on anti-human CD300e/LMIR6 Monoclonal Antibody conjugated beads. View Larger

Streptavidin coated beads conjugated to biotinylated anti-human CD300e/LMIR6 Monoclonal Antibody were stained with the indicated concentrations of Recombinant Human CD300e/LMIR6 Fc Chimera Alexa Fluor® 488 (Catalog # AFG10479).

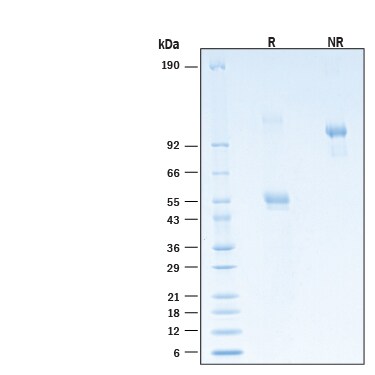

SDS-PAGE Recombinant Human CD300e Fc Chimera Alexa Fluor® 488 Protein SDS-PAGE. View Larger

2 μg/lane of Recombinant Human CD300e Fc Chimera Alexa Fluor® 488 Protein (Catalog # AFG10479) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 45-58 kDa and 106-125 kDa (non-reducible dimer), and 90-120 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Background: CD300e/LMIR6

CD300e, also known as LMIR6, IREM-2, and CMRF35-like 2 (CLM-2), is an approximately 35-kDa type I transmembrane glycoprotein in the LMIR family of immune regulatory proteins (1). It consists of a 156 amino acid (aa) extracellular domain (ECD), a 21 aa transmembrane segment, and an 11 aa cytoplasmic stub (2). The ECD contains an Ig-like V-type domain with a single disulfide bond and an N-linked glycosylation site. Within the ECD, human CD300e shares 57% sequence identity with mouse and rat CD300e. Its transmembrane segment contains a charged lysine residue which mediates CD300e association with the signaling adaptor molecule DAP12 and enables CD300e to function as an activating receptor (2, 3, 5). The ligand of CD300e is unknown; sphingomyelin has been demonstrated to bind human and mouse CD300e (5). CD300e is highly expressed on intermediate and non-classical monocytes, and myeloid dendritic cells (3, 4). CD300e on monocytes from HIV-infected patients under cART is correlated with markers of disease progression and immune inflammation (6). The cross-linking of CD300e enhances LPS-mediated cytokine production by monocytes, enhancing TNF-alpha production while no enhancement is observed on IL-1 beta, IL-6 and IL-10 (7). Our in-house data indicate that CD300e inhibits T cell activation, including anti-CD3-induced IL-2 and IFN-gamma secretion.

  1. Clark, G.J. et al. (2009) Trends Immunol. 30:209.
  2. Chung, D.H. et al. (2003) J. Immunol. 141:6541.
  3. Aguilar, H. et al. (2004) J. Immunol. 173:6703.
  4. Brckalo, T. et al. (2010) Eur. J. Immunol. 40:722.
  5. Isobe, M. et al. (2018) J. Biol. Chem. 293:3793.
  6. Vitalle, J. et al. (2017) Front. Immunol. 8:836.
  7. Zenarruzabeitia O. et al. (2016) Sci Rep. 6:32693.
Entrez Gene IDs
342510 (Human); 217306 (Mouse)
Alternate Names
CD300 antigen like family member E; CD300 antigen-like family member E; CD300e antigenPIgR-2; CD300e molecule; CD300e; CD300LE; CD300LEPIgR2; CLM2; CLM-2; CLM2CMRF35-A5; CMRF35A5; CMRF35-like molecule 2; Immune receptor expressed on myeloid cells 2; IREM-2; IREM2IREM-2; LMIR6; Poly-Ig receptor 2; Polymeric immunoglobulin receptor 2
