IL‑27 R alpha (also known as WSX‑1 and TCCR) is a 96 ‑ 100 kDa member of the type I, group 2 cytokine receptor family (1, 2, 3, 4, 5, 6). Mature IL‑27 R alpha is a type I transmembrane glycoprotein that contains a 484 amino acid (aa) extracellular region, a 21 aa transmembrane segment and a 99 aa cytoplasmic domain. Consistent with type I cytokine receptors, the extracellular region contains four positionally conserved cysteine residues, a WSxWS motif (for receptor folding and ligand binding), and three fibronectin type III repeats. The intracellular domain contains a "box‑1" motif that may be involved with Janus kinases (3). One potential alternate splice form has been hypothesized that involves a 58 aa addition to the cytoplasmic domain and, based on mouse, a soluble 33 kDa splice form that shows a 20 aa substitution for aa 257 ‑ 636 may also occur in human (3, 7). The human IL‑27 R alpha extracellular region shares 63% amino acid identity with the mouse IL‑27 R alpha extracellular domain (2, 3). IL‑27 R alpha is expressed in mast cells, endothelial cells, NK cells, macrophages, monocytes, B cells, dendritic cells, and naïve T cells (1, 2, 4, 8). Typical of other class I cytokine receptor chains, the ligand binding IL‑27 R alpha molecule is known to heterodimerize with a signal‑transducing subunit (gp130) to form a functional IL‑27 receptor (9, 10). In addition, IL‑27 R alpha is reported to complex with CNTFR alpha and gp130 form a humanin receptor on neurons (7, 11), and to complex with gp130 and IL‑6 R to form a receptor for a p28:CLF heterodimeric cytokine on lymphocytes (12). Studies using IL‑27 R alpha /WSX‑1‑/‑ mice reveal that IL‑27 has the ability to suppress T cell activity during infection, and to mediate an inhibition of both type 1 and type 2 T cell immunity (4, 13, 14). In particular, IL‑27 is known to act on naïve T cells, blocking their differentiation into a Th17 phenotype. Notably, cells committed to a Th17 phenotype, although they express a functional IL‑27 receptor, are unresponsive to the effects of IL‑27 (15). Activated T cells that are CD4+ and CD8+, and which express the IL‑27 receptor, can be induced by IL‑27 to form a double‑positive CD25+ FoxP3‑ IFN‑ gamma plus IL‑10 secreting phenotype that both promotes and suppresses the inflammatory response (16).
Recombinant Human IL-27 Ra/WSX-1/TCCR His-tag Protein, CF
R&D Systems | Catalog # 11270-TC
Loading...
Key Product Details
- R&D Systems CHO-derived Recombinant Human IL-27 Ra/WSX-1/TCCR His-tag Protein (11270-TC)
- Quality control testing to verify active proteins with lot specific assays by in-house scientists
- All R&D Systems proteins are covered with a 100% guarantee
Source
CHO
Accession Number
Applications
Bioactivity
Loading...
Product Specifications
Source
Chinese Hamster Ovary cell line, CHO-derived human IL-27 R alpha/WSX-1/TCCR protein
Thr30-Lys516, with a C-terminal 6-His tag
Thr30-Lys516, with a C-terminal 6-His tag
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Thr30
Predicted Molecular Mass
54 kDa
SDS-PAGE
76-88 kDa, under reducing conditions.
Activity
Measured by its ability to inhibit IL-27 anti-viral activity using HepG2 human hepatocellular carcinoma cells infected with encephalomyocarditis (EMC) virus. Bender H. et al. (2009) Hepatology 50:585.
The ED50 for this effect is 0.160-2.40 µg/mL.
The ED50 for this effect is 0.160-2.40 µg/mL.
Scientific Data Images for Recombinant Human IL-27 Ra/WSX-1/TCCR His-tag Protein, CF
Recombinant Human IL-27 Ra/WSX-1/TCCR His-tag Protein SDS-PAGE.
2 μg/lane of Recombinant Human IL-27 Ra/WSX-1/TCCR His-tag Protein (Catalog # 11270-TC) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 76-88 kDa.Recombinant Human IL-27 Ra/WSX-1/TCCR His-tag Protein Bioactivity.

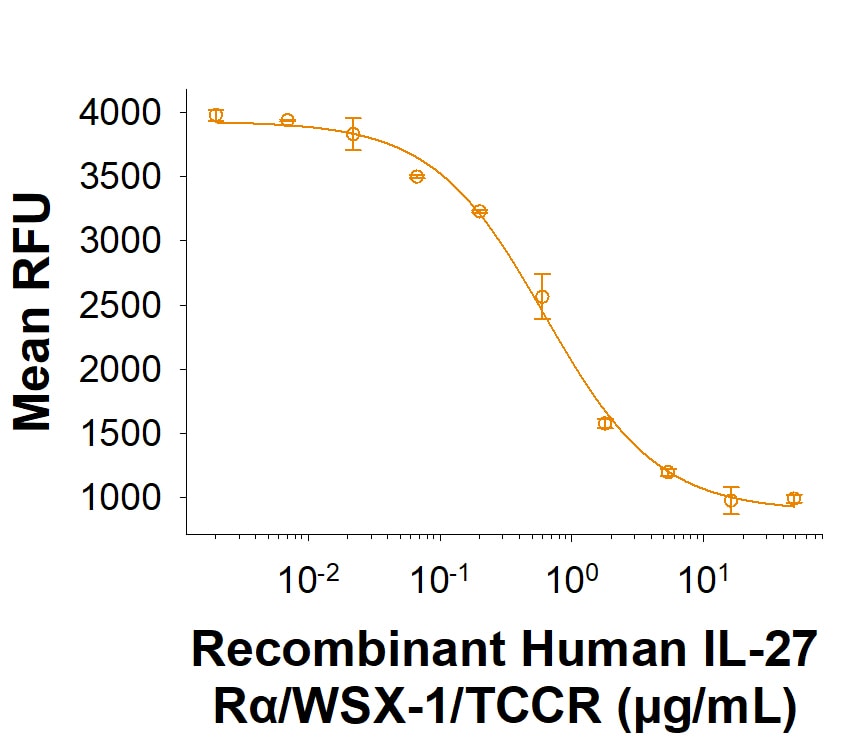

Recombinant Human IL‑27 R alpha /WSX‑1/TCCR His-tag Protein (Catalog # 11270-TC) inhibits IL-27 anti-viral activity in HepG2 human hepatocellular carcinoma cells infected with encephalomyocarditis (EMC) virus. The ED50 for this effect is 0.160-2.40 µg/mL.Formulation, Preparation, and Storage
11270-TC
| Formulation | Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. |
| Reconstitution | Reconstitute at 500 μg/mL in PBS. |
| Shipping | The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Calculators
Background: IL-27 R alpha/WSX-1/TCCR
References
- Villarino, A.V. et al. (2004) J. Immunol. 173:715.
- Chen, Q. et al. (2000) Nature 407:916.
- Sprecher, C.A. et al. (1998) Biochem. Biophys. Res. Commun. 246:82.
- Artis, D. et al. (2004) J. Immunol. 173:5626.
- Yoshida, H. & Y. Miyazaki (2008) Int. J. Biochem. Cell Biol. 40:2379.
- Yoshida, H. & M. Yoshiyuki (2008) Immunol. Rev. 226:234.
- Hashimoto, Y. et al. (2009) Biochem. Biophys. Res. Commun. 389:95.
- Holscher, C. et al. (2005) J. Immunol. 174:3534.
- Pflanz, S. et al. (2004) J. Immunol. 172:2225.
- Scheller, J. et al. (2005) Biochem. Biophys. Res. Commun. 326:724.
- Hashimoto, Y. et al. (2009) Mol. Biol. Cell 20:2864.
- Crabe, S. et al. (2009) J. Immunol. 183:7692.
- Villarino, A. et al. (2003) J. Immunol. 170:645.
- Hamano., S. et al. (2003) Immunity 19:657.
- El-behi, M. et al. (2009) J. Immunol. 183:4957.
- Fitzgerald, D.C. et al. (2007) Nat. Immunol. 8:1372.
Long Name
Interleukin-27 Receptor Subunit alpha
Alternate Names
IL-27 R alpha, IL-27Ra, IL27R alpha, IL27RA, TCCR, WSX-1
Gene Symbol
IL27RA
UniProt
