Integrin alpha 4 beta 7 is an integrin family adhesion receptor that shares subunits with alpha 4 beta 1 (VLA4) and the E-Cadherin receptor, alpha E beta 7 (1). It is a non-covalent heterodimer composed of two type I transmembrane glycoprotein subunits, a 150 kDa alpha 4 (CD49d) subunit and a 130 kDa beta 7 subunit (2, 3). The alpha 4 extracellular domain (ECD) contains an N-terminal beta -propeller structure followed by thigh, calf-1, and calf-2 domains (1). The beta 7 ECD contains a vWFA domain, which interacts with the
alpha 4 beta -propeller to form a binding domain. Metal ion binding sites termed MIDAS and LIMBS promote firm adhesion, and another site termed ADMIDAS is a negative regulatory site that promotes rolling (4-6). The human alpha 4 ECD shares 85% amino acid sequence identity with the mouse, rat, and canine alpha 4 ECD. The human beta 7 ECD shares 88% and 87% amino acid sequence identity with the rat and mouse beta 7 ECD, respectively. Integrin alpha 4 beta 7 binds the mucosal addressin MAdCAM-1, as well as VCAM-1 and Fibronectin (7). Integrin alpha 4 beta 7, which is critical for homing to intestinal mucosa, is induced during T cell activation in Peyer’s patches or mesenteric lymph nodes (8, 9). Its expression requires signals from local dendritic and stromal cells, including secreted retinoic acid (10, 11). The HIV-1 envelope protein gp120 binds to the active form of Integrin alpha 4 beta 7, and this may or may not account for the concentration of HIV-1 virus in the gut-associated lymphoid tissue (GALT) (12-14). Integrin alpha 4 beta 7 may also be involved in lymphocyte trafficking in acute intestinal graft vs. host disease (GVHD) (15).
Recombinant Human Integrin alpha 4 beta 7/LPAM 1 Protein, CF
R&D Systems | Catalog # 11509-A3
Fc Chimera
Loading...
Key Product Details
- R&D Systems HEK293-derived Recombinant Human Integrin alpha 4 beta 7/LPAM 1 Protein (11509-A3)
- Quality control testing to verify active proteins with lot specific assays by in-house scientists
- All R&D Systems proteins are covered with a 100% guarantee
Source
HEK293
Accession Number
Structure / Form
Disulfide-linked heterodimer
Applications
Bioactivity
Loading...
Product Specifications
Source
Human embryonic kidney cell, HEK293-derived human Integrin alpha 4 beta 7/LPAM-1 protein
| Human ITGA4 (Tyr34-Gln970,R591L & R878Q) Accession # P13612.3 |
IEGR | Human IgG1 (Glu99-Lys330) (with modifications) |
| Human ITGB7 (Glu20-His723) Accession # P26010.1 |
IEGR | Human IgG1 (Glu99-Lys330) (with modifications) |
| N-terminus | C-terminus |
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Tyr34 (Integrin alpha 4) & Glu20 (Integrin beta 7)
Predicted Molecular Mass
130 kDa (Integrin alpha 4) & 104 kDa (Integrin beta 7)
SDS-PAGE
115-135 kDa (Integrin beta 7) & 140-160 kDa (Integrin alpha 4), under reducing conditions.
Activity
Measured by its binding ability in a functional ELISA.
Recombinant Human Integrin alpha 4 beta 7/LPAM-1 Fc Chimera (Catalog # 11509-A3) binds Recombinant Human MAdCAM-1 Fc Chimera (Catalog # 6056-MC) with an ED50 of 30.0-450 ng/mL.
Recombinant Human Integrin alpha 4 beta 7/LPAM-1 Fc Chimera (Catalog # 11509-A3) binds Recombinant Human MAdCAM-1 Fc Chimera (Catalog # 6056-MC) with an ED50 of 30.0-450 ng/mL.
Scientific Data Images for Recombinant Human Integrin alpha 4 beta 7/LPAM 1 Protein, CF
Recombinant Human Integrin alpha 4 beta 7/LPAM‑1 Fc Chimera Protein Binding Activity.

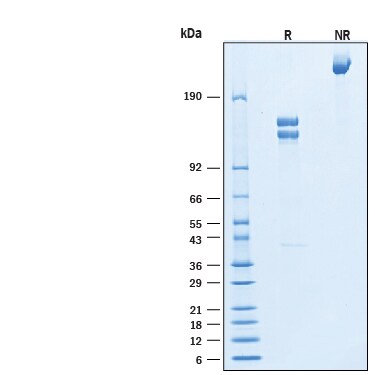

Recombinant Human Integrin alpha 4 beta 7/LPAM-1 Fc Chimera Protein (Catalog # 11509-A3) binds Recombinant Human MAdCAM-1 Fc Chimera (6056-MC) with an ED50 of 30.0‑450 ng/mL.Recombinant Human Integrin alpha 4 beta 7/LPAM‑1 Fc Chimera Protein SDS-PAGE.
2 μg/lane of Recombinant Human Integrin alpha 4 beta 7/LPAM‑1 Fc Chimera Protein (Catalog # 11509-A3) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 115-135 kDa (Integrin beta 7) & 140-160 kDa (Integrin alpha 4), under reducing conditions and 250-280 kDa under non-reducing conditions.Formulation, Preparation, and Storage
11509-A3
| Formulation | Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. |
| Reconstitution | Reconstitute at 500 μg/mL in PBS. |
| Shipping | The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Calculators
Background: Integrin alpha 4 beta 7/LPAM-1
References
- Luo, B.H. et al. (2007) Annu. Rev. Immunol. 25:619.
- Takada, Y. et al. (1989) EMBO J. 8:1361.
- Erle, D.J. et al. (1991) J. Biol. Chem. 266:11009.
- Chen, J. et al. (2004) J. Biol. Chem. 279:55556.
- Park, E.J. et al. (2007) J. Clin. Invest. 117:2526.
- Yu, Y. et al. (2012) J. Cell Biol. 196:131.
- Yang, Y. et al. (1998) Eur. J. Immunol. 28:995.
- Wagner, N. et al. (1996) Nature 382:366.
- Johansson-Lindbom, B. and W.W. Agace (2007) Immunol. Rev. 215:226.
- Hammerschmidt, S.I. et al. (2008) J. Exp. Med. 205:2483.
- Edele, F. et al. (2008) J. Immunol. 181:3745.
- Arthos, J. et al. (2008) Nat. Immunol. 9:301.
- Cicala, C. et al. (2009) Proc. Natl. Acad. Sci. USA 106:20877.
- Monteiro, P. et al. (2011) J. Immunol. 186:4618.
- Chen, Y.B. et al. (2013) Bone Marrow Transplant. 48:598.
Alternate Names
CD49d/beta7, LPAM-1, LPAM1
Gene Symbol
ITGA4
