The Interleukin 1 receptor family (IL-1R) comprises at least eleven members including IL-1 RI (IL-1R1), IL-1 RII (IL-1 R2), IL-1 RAcP (IL-1 R3), ST2 (T1/IL‑1 R4), IL‑18 R alpha (IL-1 Rrp/IL-1 R5), IL-1 Rrp2 (IL-1 RL2/IL-1 R6), IL-18 R beta (AcPL/IL-1 R7), IL1RAPL1 (TIGIRR-2/IL-1 R8), and IL1RAPL2 (TIGIRR-1/IL-1 R9) (1). All family members possess three immunoglobulin (Ig)-like domains in their extracellular region. Most members also have an intracellular TIR (Toll-like receptor/IL-1 receptor signaling) domain that is also conserved in the Toll-like receptor family. Related proteins, SIGIRR (single Ig domain-containing IL-1 R-related molecule) and IL-18BP, differ from the other members by having only one Ig domain (1). IL-1 receptor accessory protein-like 2 (IL1RAPL2) is alternately known as IL-1 R9 and three immunoglobulin domain containing IL-1 receptor-related molecule 1 (TIGIRR-1) and is expressed in the brain (2). Human IL1RAPL2 is a type I transmembrane glycoprotein with a 16 aa signal peptide, a 338 aa extracellular region containing three Ig-like domains, an 18 aa transmembrane domain and a 311 aa cytoplasmic tail (3). By comparison to other IL-1 receptor family proteins, IL1RAPL2 has a C-terminal cytoplasmic extension beyond the TIR domain that is found in IL-1RAPL1 and SIGIRR but not other family members (3). Human and mouse IL1RAPL2 share approximately 95% aa sequence identity. Human IL1RAPL2 is most homologous (63%) to IL-1RAPL1, a receptor protein that is highly expressed in hippocampus and is involved in X-linked mental retardation (4, 5). Genes for both have been localized to human chromosome Xq22. A ligand for IL1RAPL2 has not been identified (1).
Recombinant Mouse IL1RAPL2 Fc Chimera Protein, CF
R&D Systems | Catalog # 11222-MR
Loading...
Key Product Details
- R&D Systems NS0-derived Recombinant Mouse IL1RAPL2 Fc Chimera Protein (11222-MR)
- Quality control testing to verify active proteins with lot specific assays by in-house scientists
- All R&D Systems proteins are covered with a 100% guarantee
Source
NS0
Accession Number
Structure / Form
Disulfide-linked homodimer
Applications
Bioactivity
Loading...
Product Specifications
Source
Mouse myeloma cell line, NS0-derived mouse IL1RAPL2 protein
| Mouse IL1RAPL2 (Thr17-Lys354) Accession # Q9ERS6.1 |
IEGRMDP | Mouse IgG2A (Glu98-Lys330) |
| N-terminus | C-terminus |
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Thr17
Predicted Molecular Mass
66 kDa
SDS-PAGE
75-88 kDa, under reducing conditions.
Activity
Measured by its binding ability in a functional ELISA.
When Recombinant Mouse IL1RAPL2 Fc Chimera (Catalog # 11222-MR) is immobilized at 1 µg/mL (100 µL/well), Recombinant Human PTPRD Fc Chimera (Catalog # 9995-PR) binds with an ED50 of 20.0-240 ng/mL.
When Recombinant Mouse IL1RAPL2 Fc Chimera (Catalog # 11222-MR) is immobilized at 1 µg/mL (100 µL/well), Recombinant Human PTPRD Fc Chimera (Catalog # 9995-PR) binds with an ED50 of 20.0-240 ng/mL.
Scientific Data Images for Recombinant Mouse IL1RAPL2 Fc Chimera Protein, CF
Recombinant Mouse IL1RAPL2 Fc Chimera Protein Binding Activity.
When Recombinant Mouse IL1RAPL2 Fc Chimera Protein (Catalog # 11222-MR) is immobilized at 1 µg/mL (100 µL/well), Recombinant Human PTPRD Fc Chimera Protein (9995-PR) binds with an ED50 of 20.0-240 ng/mL.Recombinant Mouse IL1RAPL2 Fc Chimera Protein SDS-PAGE.

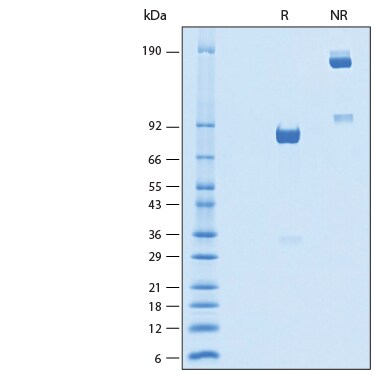

2 μg/lane of Recombinant Mouse IL1RAPL2 Fc Chimera Protein (Catalog # 11222-MR) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 75-88 kDa.Formulation, Preparation, and Storage
11222-MR
| Formulation | Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. |
| Reconstitution | Reconstitute at 500 μg/mL in PBS. |
| Shipping | The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Calculators
Background: IL1RAPL2
References
- Boraschi, D. and A. Tagliabue (2006) Vitam. Horm. 74:229.
- Andre, R. et al. (2005) J. Neurochem. 95:324.
- Born, T.L. et al. (2000) J. Biol. Chem. 275:29946.
- Jin, H. et al. (2000) Eur. J. Hum. Genet. 8:87.
- Carrie, A. et al. (1999) Nat. Genet. 23:25.
Long Name
Interleukin 1 Receptor Accessory Protein-like 2
Alternate Names
IL-1R10, IL-1RAPL2, IL1RAPL2, TIGIRR-1
Gene Symbol
IL1RAPL2
UniProt
