Recombinant Mouse TIM-1/KIM-1/HAVCR Isoform A His Protein CF

Catalog # Availability Size / Price Qty
10700-TM-050
Recombinant Mouse TIM-1/KIM-1/HAVCR Isoform A His-tag Protein Bioactivity.
2 Images
Product Details
FAQs
Reviews

Recombinant Mouse TIM-1/KIM-1/HAVCR Isoform A His Protein CF Summary

Product Specifications

Purity
>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured in a cell proliferation assay using PHA-stimulated human T lymphoblasts. The ED50 for this effect is 0.25-2.0 μg/mL. Measured by its binding ability in a functional ELISA. When Recombinant Mouse TIM-1/KIM-1/HAVCR Isoform A His-tag (Catalog # 10700-TM) is immobilized at 1 µg/mL (100 µL/well), Recombinant Mouse TIM-4 (Catalog # 2826-TI) binds with an ED50 of 0.15-1.20 µg/mL.
Source
Mouse myeloma cell line, NS0-derived mouse TIM-1/KIM-1/HAVCR protein
Tyr22-Gly237, with a C-terminal 6-His tag
Accession #
N-terminal Sequence
Analysis
Tyr22
Predicted Molecular Mass
24 kDa
SDS-PAGE
47-62 kDa, under reducing conditions

Product Datasheets

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

10700-TM

Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 2 weeks, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Data Images

Bioactivity Recombinant Mouse TIM-1/KIM-1/HAVCR Isoform A His-tag Protein Bioactivity. View Larger

Recombinant Mouse TIM-1/KIM-1/HAVCR Isoform A His-tag (Catalog # 10700-TM) inhibits the proliferation of PHA-stimulated human T lymphoblasts. The ED50 for this effect is 0.25‑2.0 μg/mL.

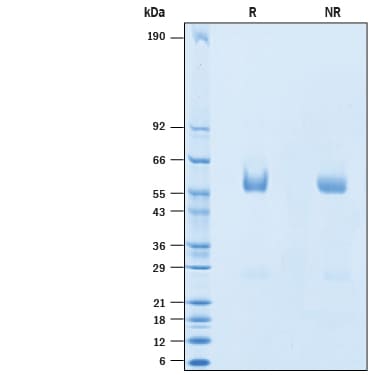

SDS-PAGE Recombinant Mouse TIM-1/KIM-1/HAVCR Isoform A His-tag Protein SDS-PAGE. View Larger

2 μg/lane of Recombinant Mouse TIM-1/KIM-1/HAVCR Isoform A His-tag (Catalog # 10700-TM) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 47-62 kDa.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: TIM-1/KIM-1/HAVCR

TIM‑1 (T cell‑immunoglobulin‑mucin; also KIM‑1 and Tapr) is a 70-80 kDa, type I transmembrane glycoprotein member of the TIM family of immunoglobulin superfamily molecules (1, 2, 3, 4). This gene family is involved in the regulation of Th1 and Th2‑cell‑mediated immunity. In mouse, there are eight known TIM genes (# 1-8) vs. only three genes in human (# 1, 3 & 4) (1, 2). Mouse TIM‑1 and ‑2 are counterparts of human TIM‑1, while mouse TIM‑5 through TIM‑8 have no human counterparts (2). Mouse TIM‑1 (isoform 2) is synthesized as a 282 amino acid (aa) precursor that contains a 21 aa signal sequence, a 193 aa extracellular domain (ECD), a 21 aa transmembrane segment and a 47 aa cytoplasmic domain (5, 6). The ECD contains one V‑type Ig‑like domain and a mucin region characterized by multiple T‑S‑P motifs. The mucin region undergoes extensive O‑linked glycosylation. The mouse TIM‑1 gene is highly polymorphic and, based on rat, may undergo alternate splicing (4, 6). One isoform (termed isoform 1) possesses a 23 aa insertion after Pro182 (GenBank # NP_599099). Another splice variant (of isoform 1) shows a 15 aa deletion in the mucin region of the ECD (6). This difference is associated with a decreased susceptibility to asthma. In human, TIM‑1 is known to circulate as a soluble form that arises from cleavage by an undefined MMP, releasing an 85 ‑ 90 kDa soluble molecule (7). In mouse, a 60-65 kDa soluble form has also been detected (in urine) that presumably arises from proteolytic processing (8). In‑house data from R&D Systems Inc. has demonstrated the presence of soluble TIM‑1 in mouse circulation. The ECD of mouse TIM‑1 shares 37% and 81% aa sequence identity with human and rat TIM‑1 ECD, respectively. Reported ligands for TIM‑1 include TIM‑4, phosphatidylserine, P-Selectin and the hepatitis A virus (3, 9, 10, 11). TIM‑1 ligation induces T cell proliferation and promotes cytokine production (1, 12). In particular, it induces IL‑4 production, and requires the TIM‑1 cytoplasmic tyrosine phosphorylation motif (5). TIM-1 also serves as a cellular entry receptor for various viruses, including hepatitis A virus, Ebolavirus, Marburgvirus and has been indicated as a possible receptor for SARS-CoV-2 (9, 13, 14).

References
  1. Meyers, J.H. et al. (2005) Trends Mol. Med. 11:1471.
  2. Su, E.W. et al. (2008) Cytokine 44:9.
  3. Freeman, G.J. et al. (2010) Immunol. Rev. 235:172.
  4. Ichimura, T. et al. (1998) J. Biol. Chem. 273:4135.
  5. de Souza, A.J. et al. (2005) Proc. Natl. Acad. Sci. USA 102:17113.
  6. McIntire, J.J. et al. (2001) Nat. Immunol. 2:1109.
  7. Bailly, V. et al. (2002) J. Biol. Chem. 277:39739.
  8. Herzog, C. et al. (2007) Kidney Int. 71:1009.
  9. Feigelstock, D. et al. (1998) J. Virol. 72:6621.
  10. Zhu, C. et al. (2005) Nat. Immunol. 6:1245.
  11. Angiari, S. et al. (2014) J. Immuni. 40:542
  12. Meyers, J.H. et al. (2005) Nat. Immunol. 6:455.
  13. Kondratowicz, A.S. et al. (2011) Proc. Natl. Acad. Sci. USA 108:8426.
  14. Ichimura, T. et al. (2020) doi: 10.1101/2020.09.16.20190694. Preprint.
Long Name
T Cell Immunoglobulin Mucin-1
Entrez Gene IDs
26762 (Human); 171283 (Mouse); 286934 (Rat); 102141332 (Cynomolgus Monkey)
Alternate Names
CD365; HAVCR1; HAVCR-1; HAVCRT cell immunoglobin domain and mucin domain protein 1; hepatitis A virus cellular receptor 1; Kidney injury molecule 1; KIM1; KIM-1; T-cell immunoglobulin and mucin domain-containing protein 1; TIM1; TIM-1; TIM-1TIM; TIM1TIMD-1; TIMD1T-cell membrane protein 1
