Recombinant Rat Jagged 1 Fc Chimera Protein, CF

R&D Systems | Catalog # 599-JG

R&D Systems
Loading...

Key Product Details

  • R&D Systems NS0-derived Recombinant Rat Jagged 1 Fc Chimera Protein (599-JG)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

NS0

Accession Number

Structure / Form

Disulfide-linked homodimer

Applications

Bioactivity
Loading...

Product Specifications

Source

Mouse myeloma cell line, NS0-derived rat Jagged 1 protein
Rat Jagged 1
Ser32-Asp1067
with substitutions GGARN56-60AE and DR63-64TLVRPY
Accession # Q63722.2
IEGRMD Human IgG1
(Pro100-Lys330)
6-His tag
N-terminus C-terminus

Purity

>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Ser32

Predicted Molecular Mass

141.7 kDa (monomer)

SDS-PAGE

180 kDa, reducing conditions

Activity

Measured by the ability of the immobilized protein to enhance BMP-2 induced alkaline phosphatase activity in C3H10T1/2 mouse embryonic fibroblast cells. Nobta, M. et al. (2005) J. Biol. Chem. 280:15842.
The ED50 for this effect is 0.5-2.0 µg/mL.

Reviewed Applications

Read 1 review rated 5 using 599-JG in the following applications:

Formulation, Preparation, and Storage

599-JG
Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution

Reconstitute at 200 μg/mL in sterile PBS.


Loading...
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Jagged 1

Rat Jagged1 was the first ligand for Notch identified in mammals. Since both the ligands and receptors are transmembrane proteins, direct cell-cell interactions are thought to be required for activating Notch signaling. Jagged1 is synthesized as a precursor protein that contains a 21 aa signal sequence, a 1048 aa extracellular region, a 25 aa transmembrane (TM) segment and a short, 226 aa cytoplasmic domain. The large extracellular region has a DSL (Delta, Serrate, Lag-2 consensus sequence) domain followed by 16 EGF-like repeats, and a cysteine-rich (CR) region (1). The extracellular region of rJagged1 binds to multiple Notch receptors on the cell surface as well as in solid phase binding studies. The DSL motif is necessary for binding to Notch receptors and the EGF repeats modulate the affinity of the interaction with Notch receptors (2). Notch signaling is implicated in many developmental processes in a variety of cell types. Jagged-Notch signaling specifies cell fate, regulates pattern formation, defines boundaries between different cell types, and modulates cell proliferation and differentiation. Some specific areas where Jagged is involved include hematopoiesis, myogenesis, neurogenesis and development of the vasculature (3). For instance soluble, non-transmembrane forms of Jagged1 influence behavior in fibroblast cells leading to characteristics exhibited by endothelial cells during angiogenesis (4). Soluble Jagged1 is also capable of maintaining the survival and enhancing the expansion of human stem cells that are capable of reconstituting hematopoietic lineages in vivo (5). Furthermore, Jagged1 is implicated in human disease: Alagille syndrome, an autosomal dominant disorder characterized by defects in liver, heart, eye, skeletal, craniofacial tissues, and kidney, is caused by mutations in Jagged1 (6). Depending on cell types and how soluble forms of the ligand are presented, ligand binding can result in activation or inhibition of Notch signaling (7). Rat Jagged1 shows 98% and 99% aa identity to human and mouse Jagged1 extracellular domains respectively. Relative to the extracellular region of rat Jagged2, the aa identity is 58%.

References

  1. Lindsell, C.E. et al. (1995) Cell 80:909.
  2. Shimizu, K. et al. (1999) J. Biol. Chem. 274:32961.
  3. Lewis, J. (1998) Stem Cell & Dev. Biol. 9:583.
  4. Small, D. et al. (2001) J. Biol. Chem. 276:32022.
  5. Karanu, F. et al. (2000) J. Exp. Med. 192:1365.
  6. Joutel, A. and E. Tounier-Lasserve (1998) Stem Cell & Dev. Biol. 9:619.
  7. Hicks, C. et al. (2002) J Neurosci. Res. 68:655.

Alternate Names

CD339, JAG1

Entrez Gene IDs

182 (Human); 16449 (Mouse); 29146 (Rat)

Gene Symbol

JAG1

UniProt

Additional Jagged 1 Products

Product Documents for Recombinant Rat Jagged 1 Fc Chimera Protein, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant Rat Jagged 1 Fc Chimera Protein, CF

For research use only

Related Research Areas

Citations for Recombinant Rat Jagged 1 Fc Chimera Protein, CF

Customer Reviews for Recombinant Rat Jagged 1 Fc Chimera Protein, CF (1)

5 out of 5
1 Customer Rating
5 Stars
100%
4 Stars
0%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Recombinant Rat Jagged 1 Fc Chimera Protein, CF?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 1 of 1 review Showing All
Filter By:
  • Recombinant Rat Jagged 1 Fc Chimera Protein, CF
    Name: Anonymous
    Application: Stem/Immune cell maintenance or differentiation
    Verified Customer | Posted 08/25/2021

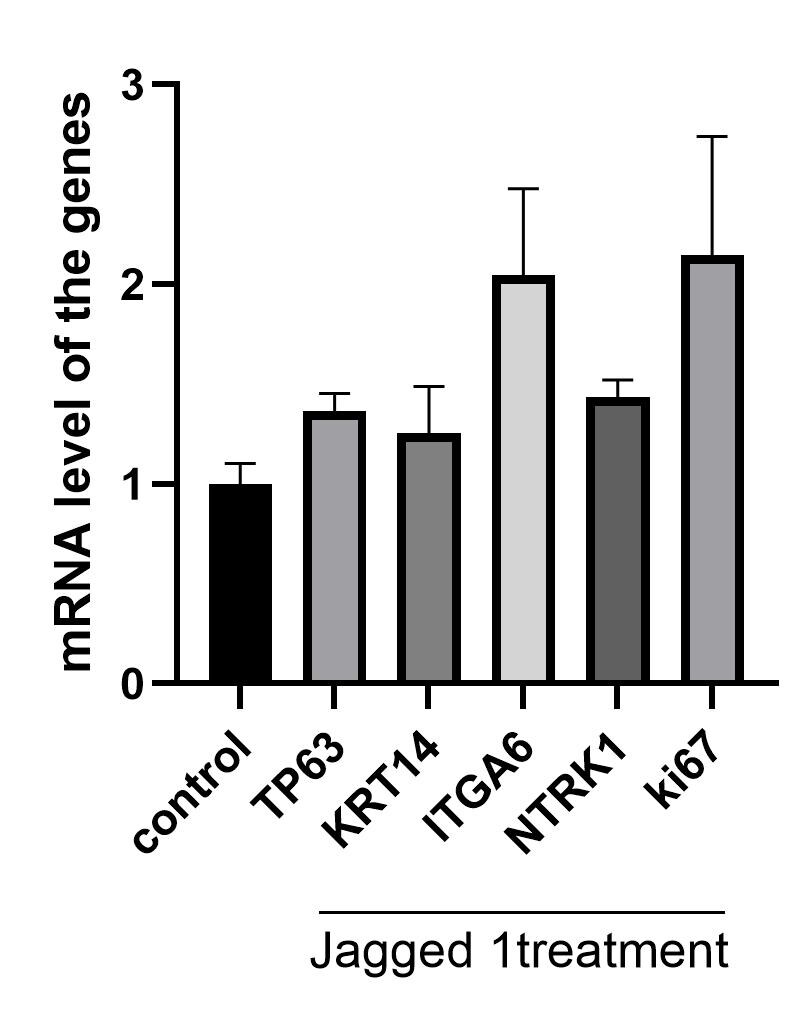

    Jagged 1 (10ug/ml) were treated to ipsc lines to check if it stimulates the stem cell proliferation by qPCR.
    Recombinant Rat Jagged 1 Fc Chimera Protein, CF 599-JG

There are no reviews that match your criteria.

Showing  1 - 1 of 1 review Showing All

FAQs

No product specific FAQs exist for this product.

View all FAQs for Proteins and Enzymes
